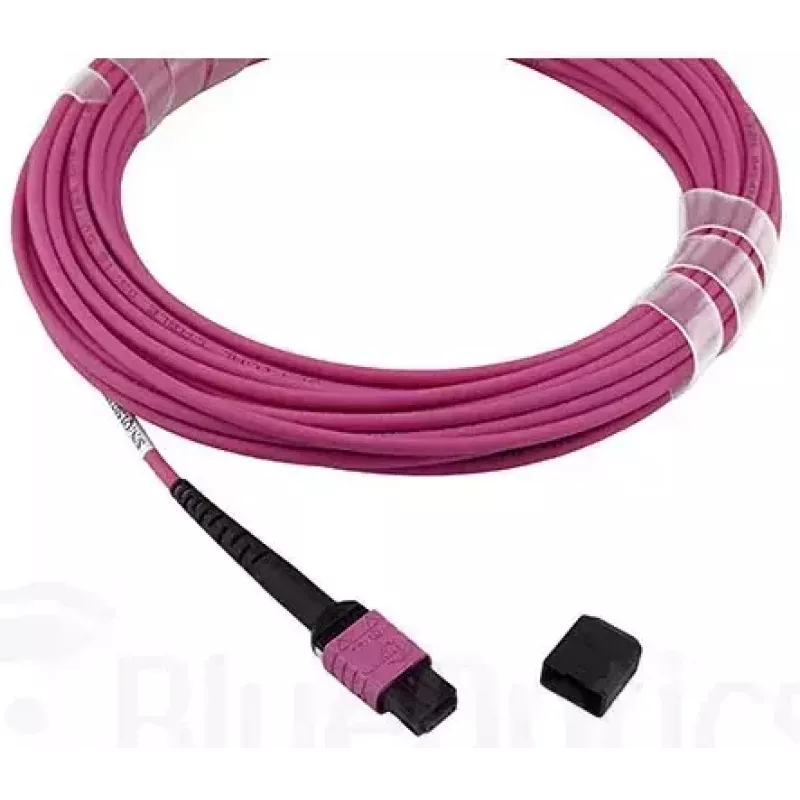

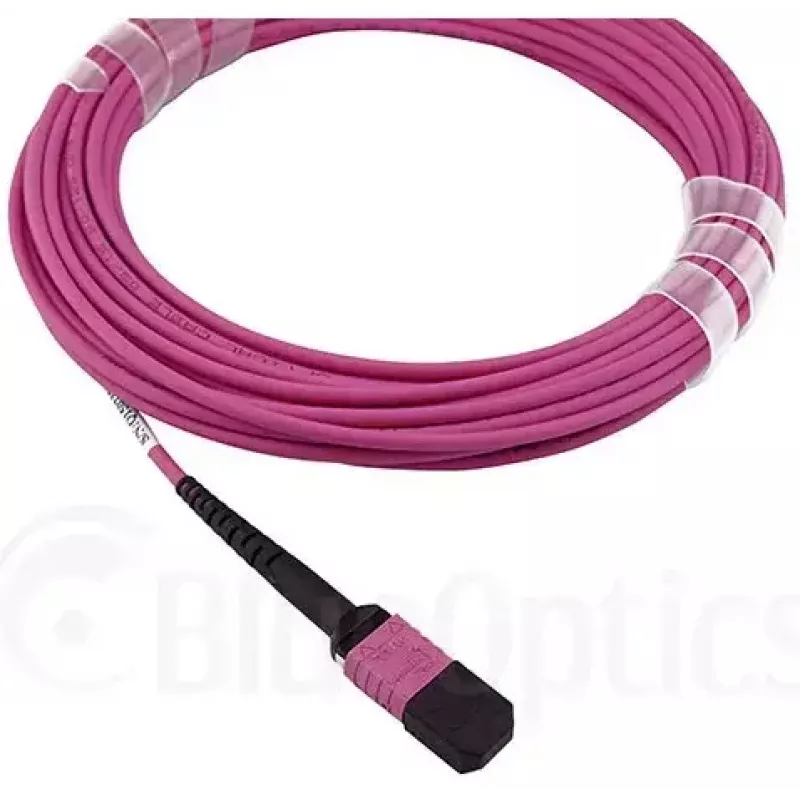

Fibre optic cable BlueOptics 106283-7001-BO MTP 4xLC OM4 1 m Pink

The BlueOptics 106283-7001-BO MTP 4xLC OM4 1 m Pink is a 1-metre multimode fibre optic breakout cable designed for high-density data centres and InfiniBand applications. It combines an MTP connector on one end with four LC duplex connectors on the other, uses OM4 laser-optimized 50/125 µm fibre and supports full-duplex transmission for reliable high-speed links. The pink sheath provides visual identification in mixed cabling environments while the LSZH outer jacket reduces smoke and halogen release in the event of fire.

Advantages

This BlueOptics breakout cable delivers low insertion loss and high return loss values through ceramic-ferrule LC connectors and a precision MTP interface, ensuring efficient optical transmission. Manufactured with branded multimode fibres and quality connector components, the cable is tested with interferometer and OTDR and supplied with a measurement protocol for input loss and return loss. The construction meets common industrial standards and includes a flame-retardant LSZH sheath for improved safety in enclosed spaces.

Suitable for

• Interconnects between MTP backbone trunks and LC-equipped patch panels or transceivers
• High-density data centre cabling and server racks
• InfiniBand and short-reach multimode optical links
• Environments requiring clear cable identification and LSZH sheathing

Key specifications

• Fibre type: Multimode OM4, 50/125 µm
• Length: 1 metre
• Connector configuration: MTP to 4 × LC duplex
• Insertion loss (typical): MTP < 0.3 dB, LC < 0.2 dB
• Ferrule material: Zirconia ceramic
• Sheath: LSZH (flame-retardant, low smoke, halogen-free)
• Testing: Interferometer and OTDR; delivered with measurement protocol
• Durability: up to 1500 mating cycles (connector lifecycle)

How to use

Connect the MTP end to an MTP trunk, cassette or adapter panel, and plug the four LC duplex connectors into the corresponding LC ports of patch panels or transceivers, observing transmit/receive orientation for full-duplex operation. Handle connectors by the boot or connector housing, avoid touching ferrule endfaces, and keep protective caps in place until connection. Route the cable within rack management channels to prevent tight bends; maintain the minimum bend radius recommended for OM4 multimode fibre to avoid increased attenuation.

Recommendations

Before installation, verify connector cleanliness using an inspection scope and clean with appropriate fibre cleaning tools if necessary. Use strain relief and cable management to prevent stress on connectors. For long-term installations, store measurement protocol documents for future reference and perform periodic link testing to ensure sustained performance.
