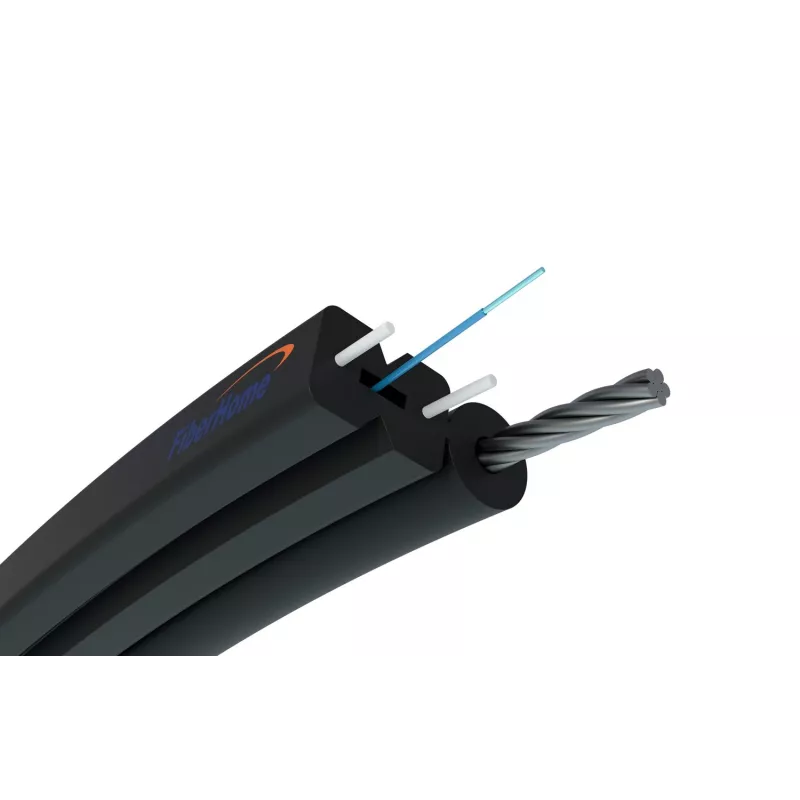

Fiberhome S-NOTKSP Single-Mode 1-Fiber G.657A1 0.6kN 5.2mm Outdoor Flat Fiber Optic Cable

The Fiberhome S-NOTKSP is a high-quality outdoor flat fiber optic cable designed for reliable single-mode transmission. With a single fiber, G.657A1 bend-insensitive technology, and a robust 0.6kN tensile strength, this cable ensures stable performance in demanding environments. Its compact 5.2mm diameter and flat design make it ideal for space-constrained installations.

Advantages

This cable offers enhanced bend resistance, low attenuation, and durability for outdoor use. The G.657A1 standard allows tighter bends without signal loss, simplifying installation. The flat profile reduces wind load and is easy to route along walls or in conduits.

Suitable for

• Outdoor fiber optic networks (FTTH, FTTB)
• Last-mile connections
• Industrial and campus backbones
• Direct burial or aerial installations

Key specifications

• Fiber Type: Single-mode (9/125 µm)
• Fiber Standard: ITU-T G.657.A1
• Number of Fibers: 1
• Cable Design: Flat
• Application: Outdoor
• Max Tensile Strength: 0.6 kN
• Outer Dimension: 5.2 mm
• Attenuation @ 1310nm: ≤ 0.35 dB/km
• Attenuation @ 1550nm: ≤ 0.20 dB/km
• Wavelength Support: 1310nm, 1550nm
• Manufacturer: Fiberhome
• Model: S-NOTKSP
• EAN: 5903148917344

Recommendations

For optimal performance, pair with appropriate connectors (LC, SC, FC, or ST) and ensure proper cable management to maintain bend radius. This cable is compatible with standard single-mode transceivers.
