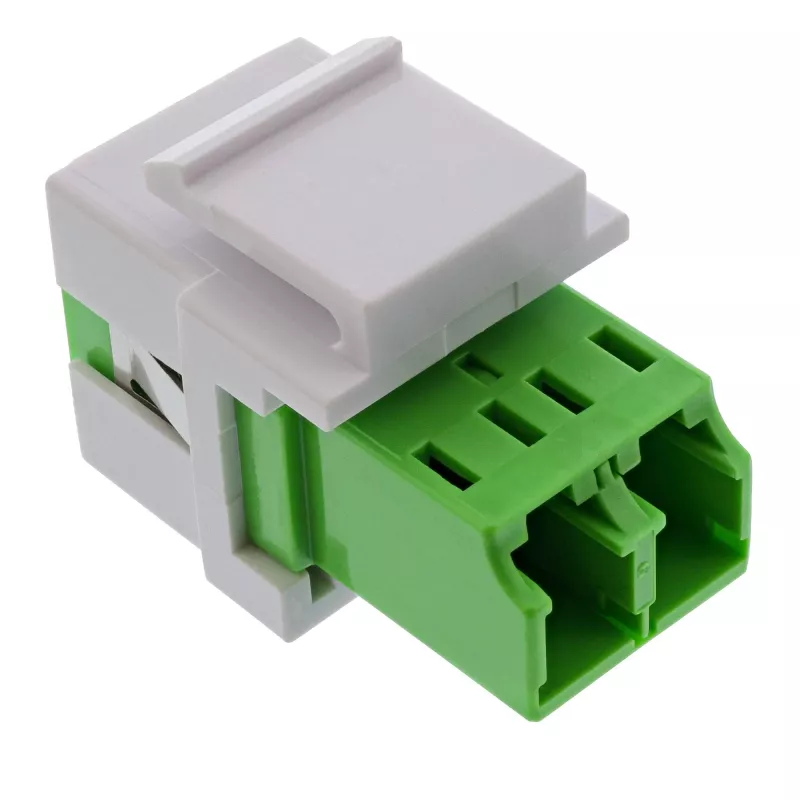

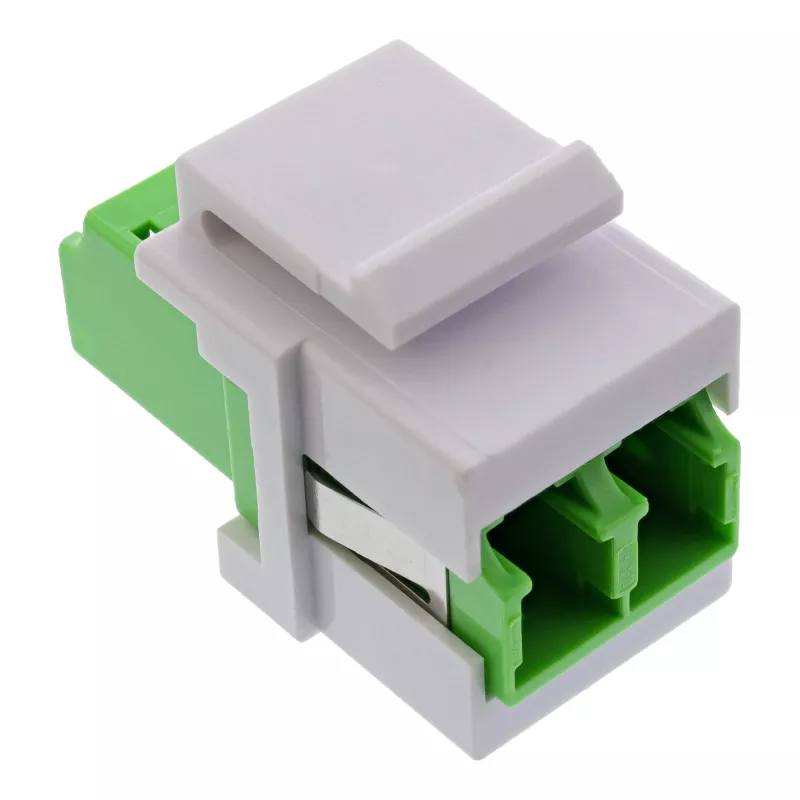

Fiber optical Keystone Snap-in adaptor InLine 89988G LC duplex SM green

Fiber optical Keystone Snap-in adaptor InLine 89988G LC duplex SM green
Fiber optical Keystone Snap-in adaptor InLine 89988G LC duplex SM green
Fiber optical Keystone Snap-in adaptor InLine 89988G LC duplex SM green
Fiber optical Keystone Snap-in adaptor InLine 89988G LC duplex SM green
Fiber optical Keystone Snap-in adaptor InLine 89988G LC duplex SM green
Fiber optical Keystone Snap-in adaptor InLine 89988G LC duplex SM green
R326
Connects two LC-based fiber optic cables reliably– ideal for structured fiber optic cablingSnap-in (keystone) format– fast and flexible installation in standardized carrier modulesCompatible with PC, UPC and APC slots– for universal application possibilitiesCeramic ferrule– for precise alignment and... Read More
Stock 26 Code 1487953 Brand INLINE Model 89988G Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, October 6
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival
Connects two LC-based fiber optic cables reliably– ideal for structured fiber optic cabling
Snap-in (keystone) format– fast and flexible installation in standardized carrier modules
Compatible with PC, UPC and APC slots– for universal application possibilities
Ceramic ferrule– for precise alignment and minimal insertion damping
Single-mode capable– ideal for long-distance connections and high data rates

The InLine® fiber optic keystone snap-in coupler was specially developed for the simple and secure connection of two LC-based fiber optic cables. Thanks to the compact keystone design, the coupler can be seamlessly integrated into patch panels, wall outlets or floor tank solutions. The white housing with a green interior indicates single-mode suitability and ensures clear differentiation during installation.The precise ceramic sleeve enables exact centering of the fiber ends, ensuring reliable signal transmission with low loss. The coupler supports all common cut types (PC, UPC, APC) and is therefore particularly versatile in professional applications - from router cabling to data centers and industrial networks.Additional technical specifications:

Color: White with green inner housing
Design: Keystone snap-in
Connectors: Duplex LC socket on both sides
Fiber type: Singlemode
Socket: ceramic
Compatibility: PC, UPC, APC

InLine Fiber optical Keystone Snap-in adaptor white, duplex LC/LC, SM, green. Product colour: Green, White. Width: 18 mm, Depth: 35 mm, Height: 21 mm. Quantity per pack: 1 pc(s), Package width: 45 mm, Package depth: 35 mm. Country of origin: Germany

How to use

Insert the keystone snap-in coupling into a compatible keystone opening until it clicks into place. Connect LC connectors from the two single-mode fiber cables into each side of the adaptor, ensuring proper alignment and secure latching. For removal, depress the snap-in tabs and pull the module out of the mounting opening.

Recommendations

Handle fiber connectors carefully to avoid contamination; clean connector endfaces before mating. Use in applications matching single-mode fiber specifications and follow standard fiber installation and testing procedures to ensure optimal performance.

Key Highlights
  • Single-mode fiber patch panels
  • Wall-mounted fiber outlets and faceplates
  • Floor tank or floor box fiber installations
  • High-density fiber cabling environments
  • Connector type: LC duplex to LC duplex
  • Fiber type: single-mode (SM)
  • Form factor: keystone snap-in (flat)
  • Housing colour: green and white

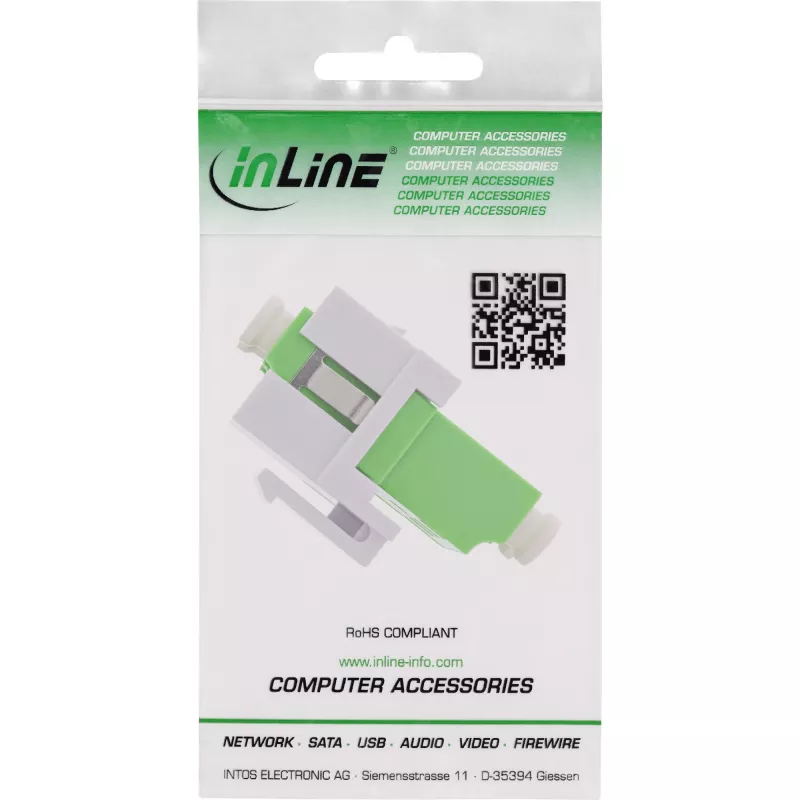

  • Packaging: single piece in polybag
  • Country of manufacture: Germany
Specifications
Country of origin
Germany
Depth
35 mm
Height
21 mm
Package depth
35 mm
Package height
20 mm
Package type
Polybag
Package volume
100 cm³
Package weight
6 g
Package width
45 mm
Product colour
Green, White
Quantity per pack
1 pc(s)
Weight
4 g
Width
18 mm

Leaflet

Open Leaflet
