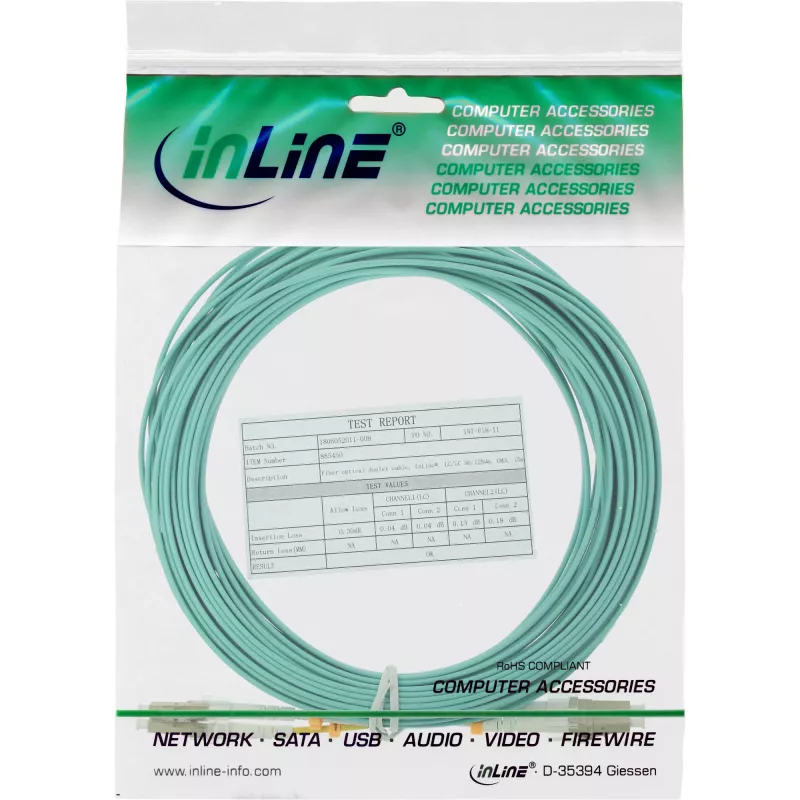

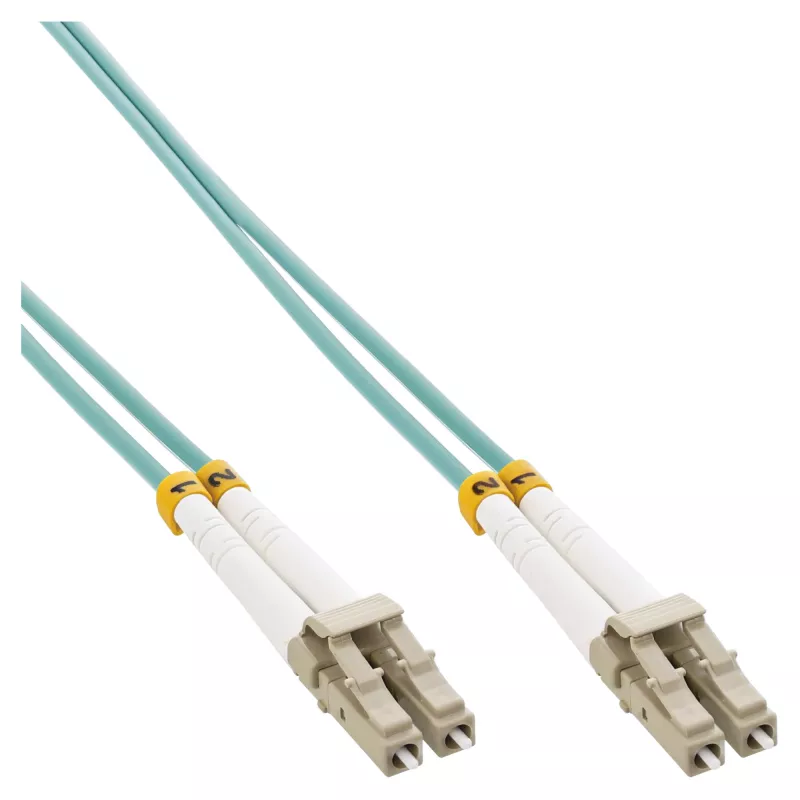

Fiber Optical Duplex Cable LC/LC InLine 88547O 50/125µm OM3 7.5m

The InLine Fiber Optical Duplex Cable LC/LC 88547O 50/125µm OM3 7.5m is a duplex multimode fiber patch cable designed for high-speed data transmission in structured networks. It features LC connectors on both ends to provide reliable duplex connections between network devices, transceivers, patch panels and switches. The OM3 multimode fiber with a 50/125 µm core/cladding profile supports enhanced bandwidth for laser-optimized applications and is suitable for typical data center and enterprise networking scenarios where short- to medium-range high-bandwidth links are required.

Advantages

This LC/LC duplex cable provides stable duplex communication with low insertion loss and predictable optical performance typical of OM3 multimode fiber. The 7.5 m length offers flexibility for rack-to-rack or equipment-to-patch-panel connections without excess slack. LC connectors deliver a small form-factor interface that saves space in high-density panels and transceiver modules. As a pre-terminated fiber assembly, it reduces installation time and simplifies cabling management.

Suitable for (tasks / use cases)

• Interconnecting switches, servers and transceivers in data centers
• Patch panel to active equipment connections in enterprise LANs
• Fiber optic test and measurement setups requiring duplex links
• Short- to medium-distance multimode fiber links supporting 10GbE and similar applications

Key specifications

• Connector type: LC to LC duplex
• Fiber type: OM3 multimode
• Core/cladding diameter: 50/125 µm
• Length: 7.5 m
• Mode: Duplex (two fibers)

How to use

Route the LC/LC duplex cable between the two endpoints, ensuring fiber bend radius limits are observed and connectors are clean prior to insertion. Insert each LC connector into the corresponding LC port on equipment or patch panels until it clicks into place; verify correct polarity for transmit and receive pairs. After connection, secure the cable to cable management elements to prevent strain on the connectors and maintain consistent routing to avoid excessive bending or compression.

Recommendations

Clean LC connector endfaces with appropriate fiber cleaning tools before every installation or reconnection. Avoid tight bends and protect the cable from sharp edges and crushing. Use the 7.5 m length for rack-to-rack or equipment-to-panel links where OM3 multimode performance is required; for longer runs, consult fiber link budget and system requirements.
