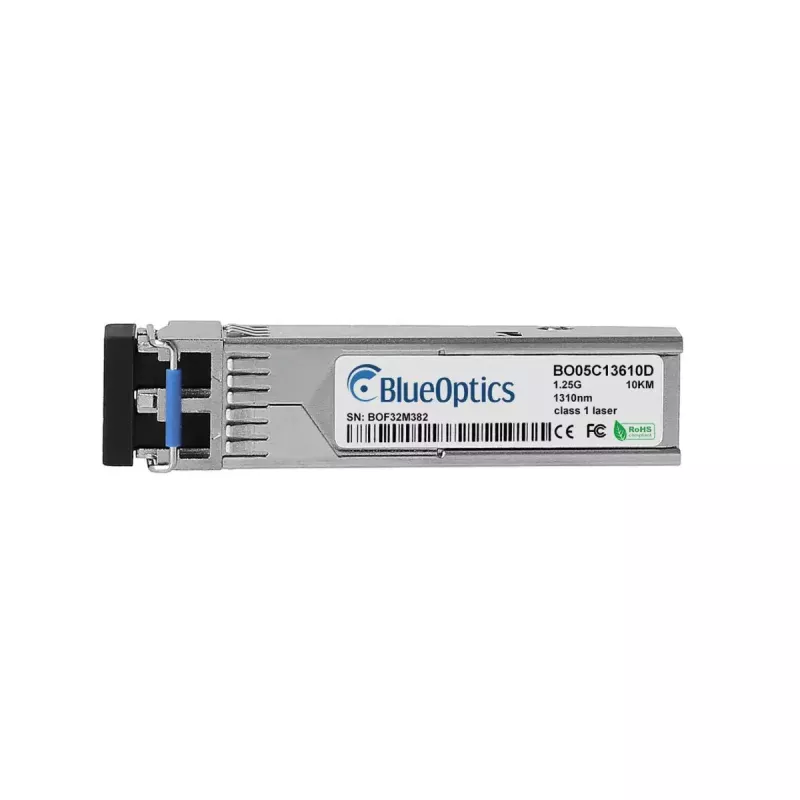

Fiber optic transceiver module BlueOptics ADB0047-BO 1250 Mbit/s LC

The BlueOptics ADB0047-BO is a single-mode fiber optic SFP transceiver module designed for 1250 Mbit/s (1.25 Gbit/s) data transmission. It uses an LC duplex interface, operates with 1310 nm transmitter and receiver wavelengths for long-reach links, and is intended for deployment in compatible network equipment that supports 1000BASE-LX SFP modules. The module is CE, RoHS and FCC compliant and has a compact, lightweight silver enclosure suitable for standard SFP slots.

Advantages

The BlueOptics ADB0047-BO provides stable gigabit-capable optical connectivity with an LC duplex connector and single-mode fiber compatibility. Its compact SFP form factor enables easy hot-swap installation in switches, routers and storage systems. Built to MSA standards, the module supports digital diagnostic monitoring when the host hardware provides DOM support, allowing remote monitoring of parameters such as optical power and temperature. Low weight and standard mechanical dimensions make it an unobtrusive and interoperable option for expanding fiber links.

Suitable for

• Long-reach single-mode fiber links up to typical 10 km distances in LAN and MAN environments
• Gigabit Ethernet (1000BASE-LX) connections between switches and routers
• Interconnects for storage systems and network appliances that accept SFP modules
• Replacement or spare SFP transceivers in compatible hardware platforms

Key specifications

• Interface: LC duplex
• Maximum data transfer rate: 1250 Mbit/s (1.25 Gbit/s)
• Optical wavelength: 1310 nm transmitter and receiver (single-mode)
• Form factor: SFP (Small Form-Factor Pluggable)
• Compliance: CE, RoHS, FCC
• Weight: approximately 0.02 kg
• Enclosure colour: silver

How to use

Insert the BlueOptics ADB0047-BO SFP module into a compatible SFP slot on the host device while the host device is powered according to the equipment manufacturer's instructions or supported hot-swap procedure. Connect LC duplex single-mode fiber patch cords to the module and the corresponding remote transceiver, observing correct transmit/receive orientation. Verify link status on the host device and enable any required interface settings such as speed, duplex and protocol. If the host supports digital diagnostics (DOM/DDM), enable and monitor the diagnostic parameters through the management interface to check optical power and module temperature.

Recommendations

Use high-quality single-mode LC patch cords and, where applicable, patch panels to achieve optimum range and signal quality. Confirm that the host hardware supports 1000BASE-LX SFP modules and DOM if diagnostic monitoring is required. Follow ESD precautions when handling the module and keep the optical connectors capped when not in use to prevent contamination and maintain performance.
