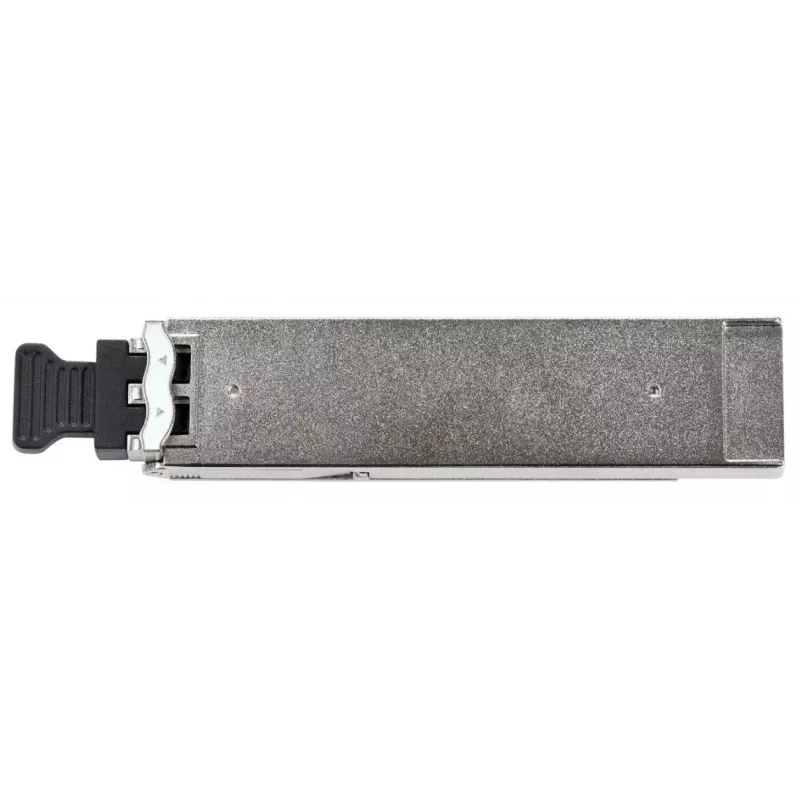

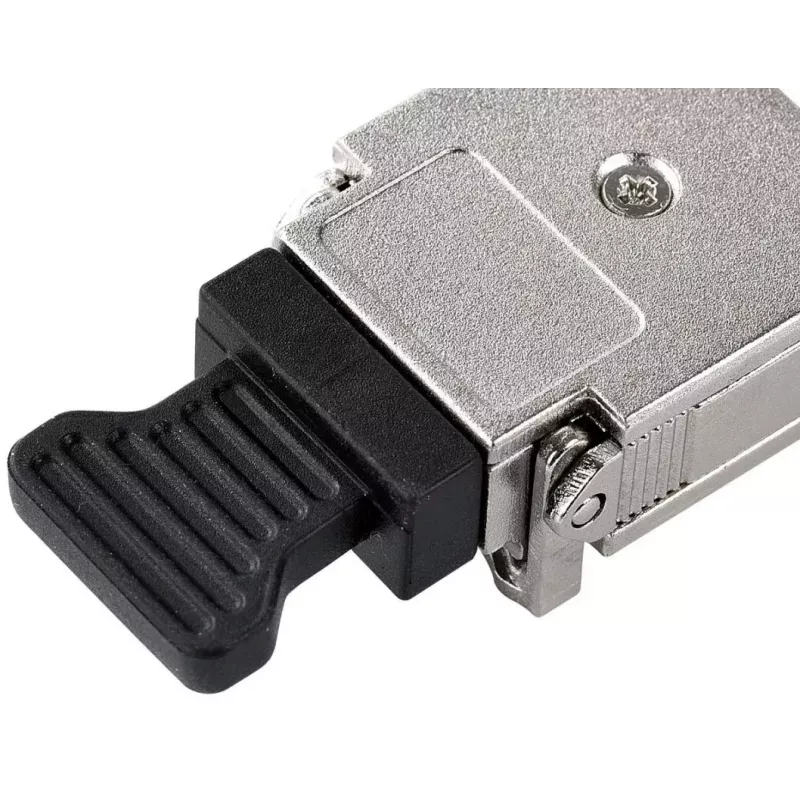

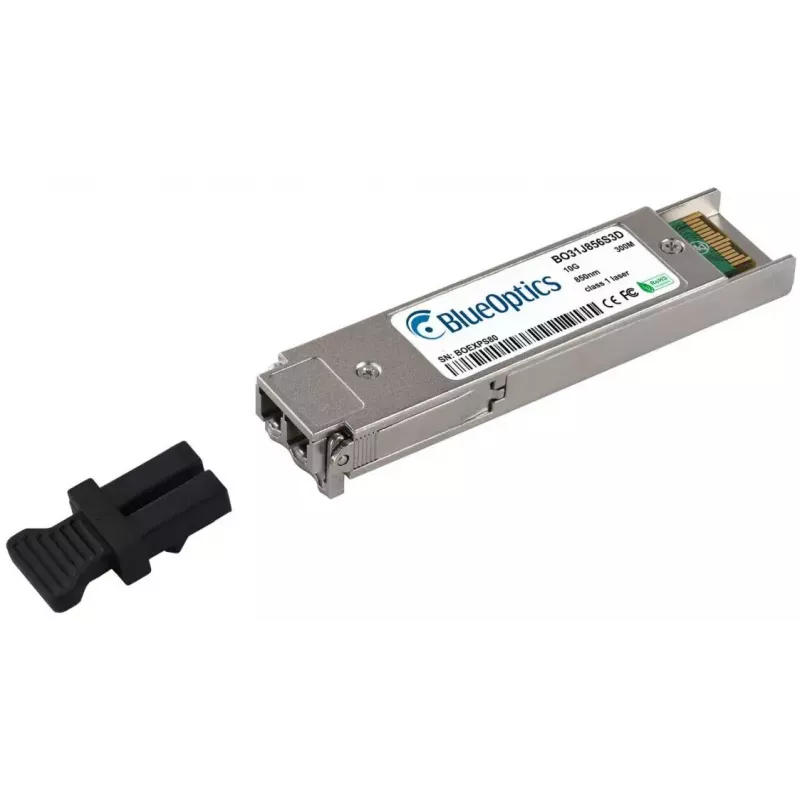

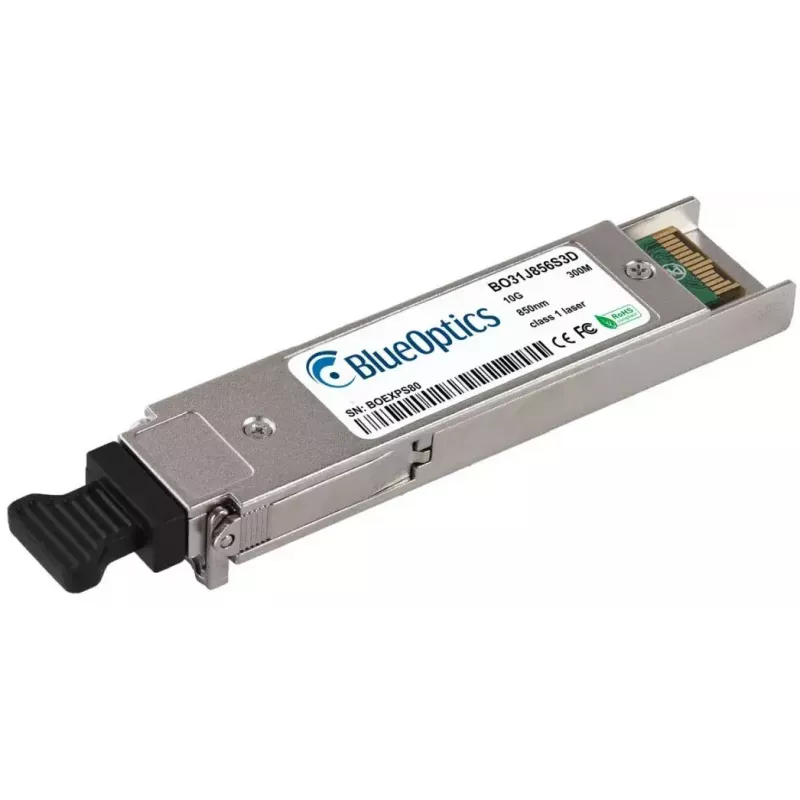

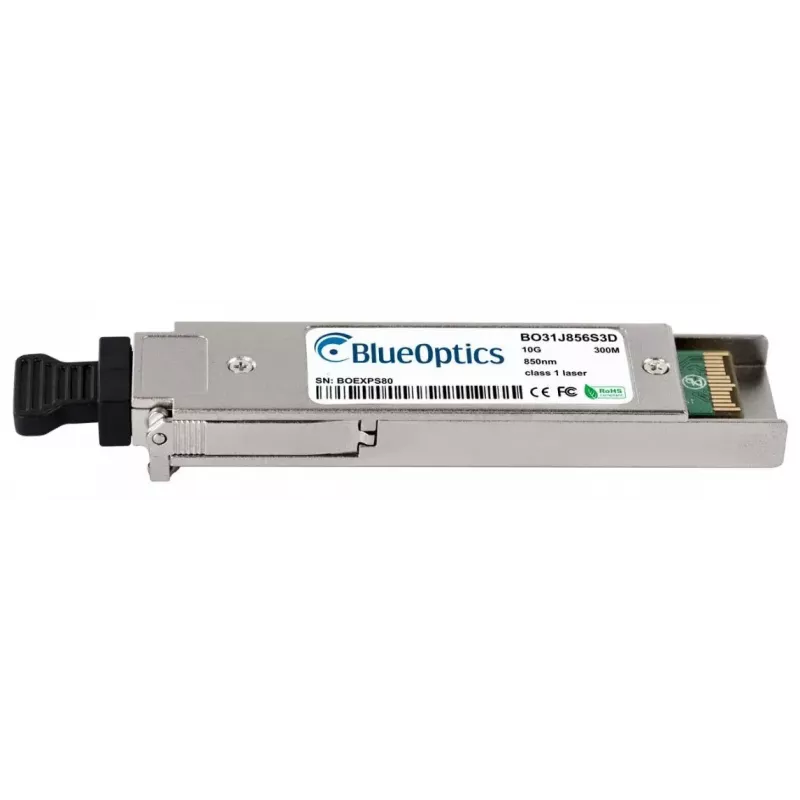

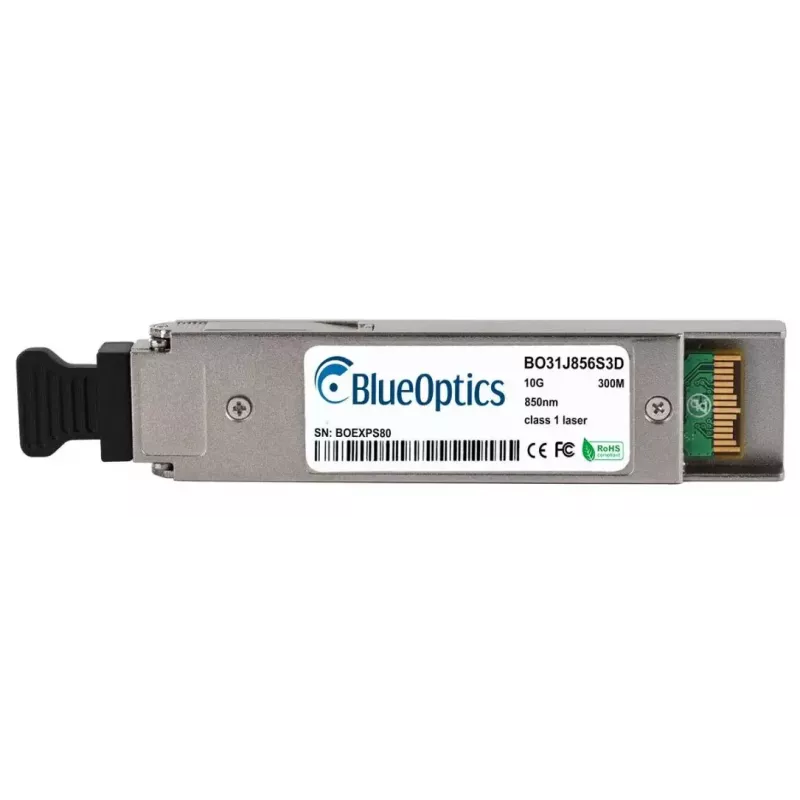

Fiber optic transceiver module BlueOptics 943 917-001-BO XFP LC Aluminium 20g

The BlueOptics 943 917-001-BO XFP LC Aluminium 20g is a fiber optic transceiver module designed for high-speed short-range multimode applications. It uses an XFP interface with an LC duplex connector and an 850 nm transmitter/receiver pair to support data rates up to 10 Gbps over multimode fiber. The module is housed in an aluminium enclosure and weighs approximately 20 g, providing a compact, lightweight solution for compatible networking equipment that follows XFP MSA specifications.

Advantages

This transceiver offers 10GBASE-SR performance for short-reach optical links with immunity to electromagnetic interference typical of fiber connections. The aluminium housing contributes to mechanical robustness and thermal dissipation while keeping the module lightweight. Compliance with XFP form-factor standards and LC duplex connectivity enables broad compatibility with network switches, routers and storage interfaces that support XFP modules. Where supported by system firmware, the module provides digital diagnostics (DDM/DOM) for real-time monitoring of operating parameters.

Suitable for

• 10 Gigabit Ethernet short-range links over multimode fiber
• Data center switch-to-switch or switch-to-server connections
• High-speed storage area network (FCoE/Fibre Channel over Ethernet) links
• Hardware platforms that accept XFP modules with LC duplex connectors

Key specifications

• Interface type: XFP
• Connector: LC duplex
• Wavelength (typical): 850 nm for transmitter and receiver
• Maximum data rate: up to 10 Gbps
• Fiber type: multimode fiber (short-range applications)
• Housing material: aluminium
• Weight: approx. 20 g
• Supports digital diagnostics monitoring (DDM/DOM) when enabled by host hardware

How to use

Install the BlueOptics XFP module into a compatible XFP slot on your network device following the device manufacturer’s hot-swap and handling guidelines. Connect LC duplex multimode fiber patch cords to the module’s LC connectors, observing transmit–receive orientation. Ensure the host device firmware supports the module and, if required, enable digital diagnostics through the management interface to monitor supply voltage, laser bias, optical power and temperature. Verify link status and perform end-to-end testing after installation.

Recommendations

Use OM3/OM4 multimode fiber patch cords for optimal reach at 10 Gbps and route fibers to minimize bends and stress. Confirm host compatibility and firmware support for XFP modules and DDM before deployment. Follow electrostatic discharge (ESD) precautions when handling the transceiver and keep dust caps on unused connectors to maintain optical performance.
