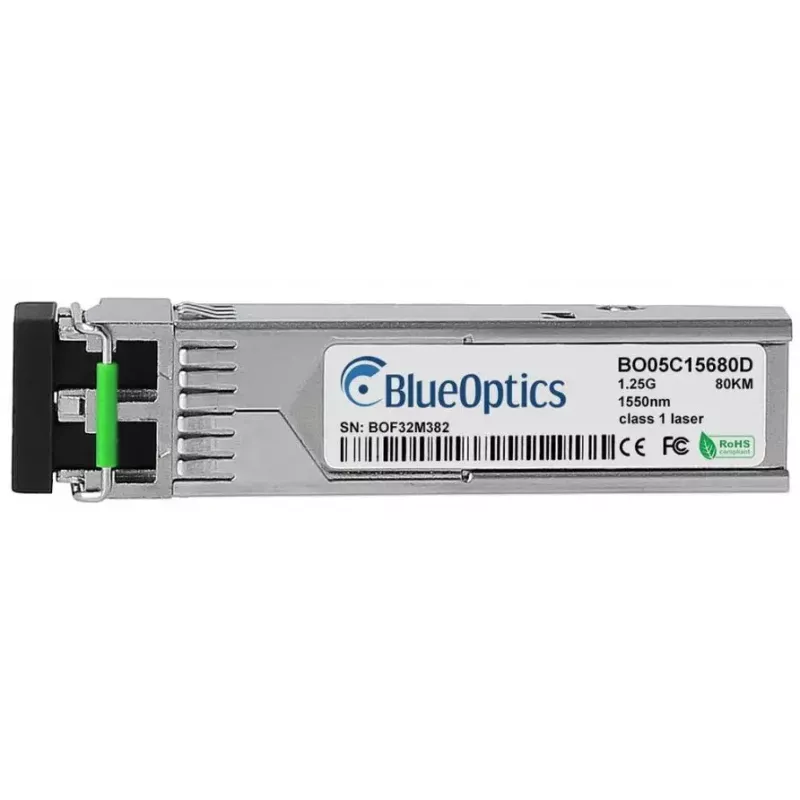

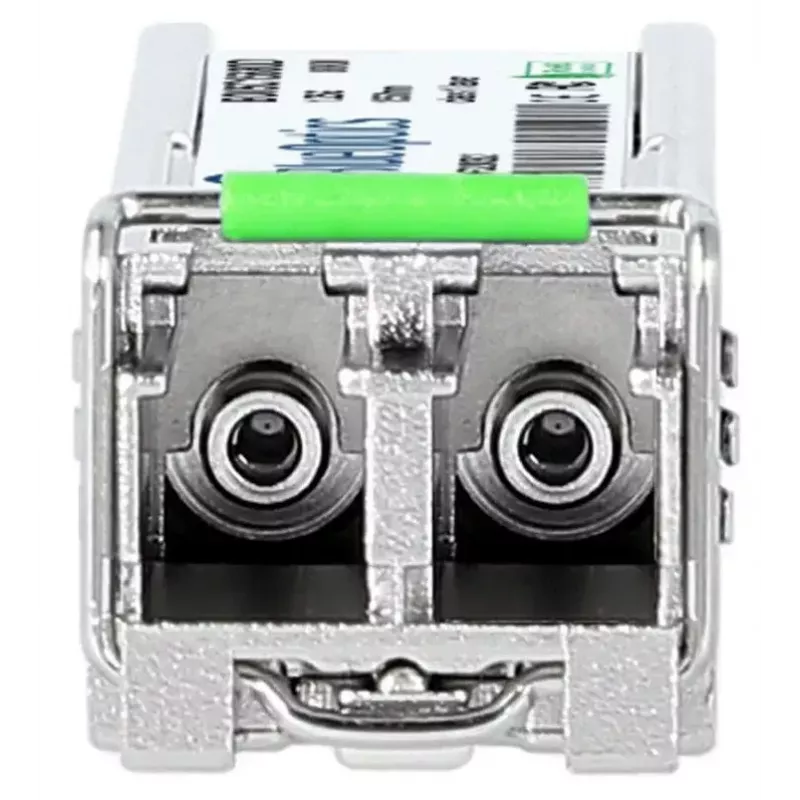

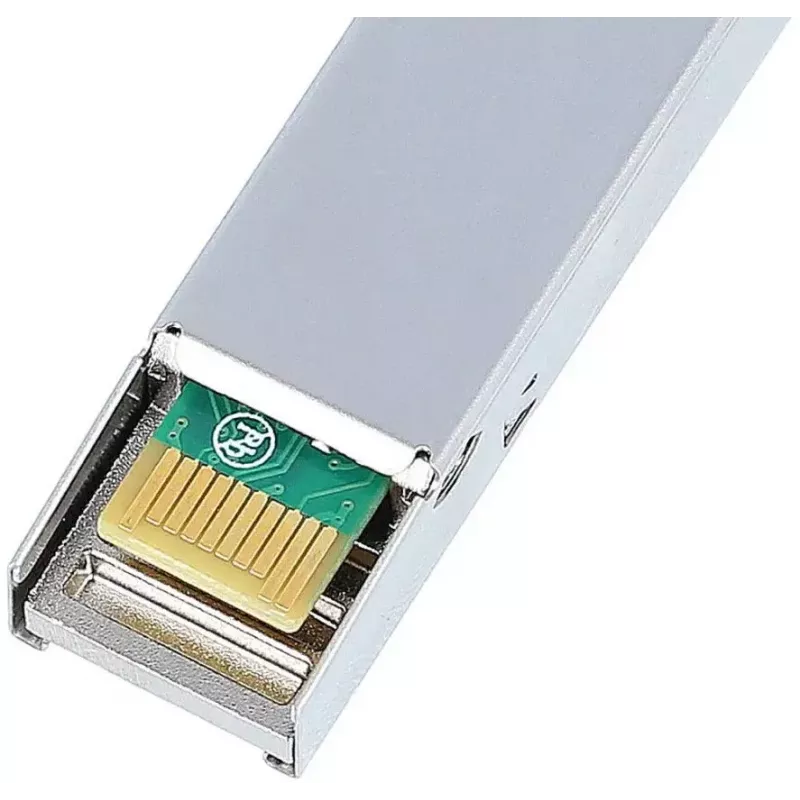

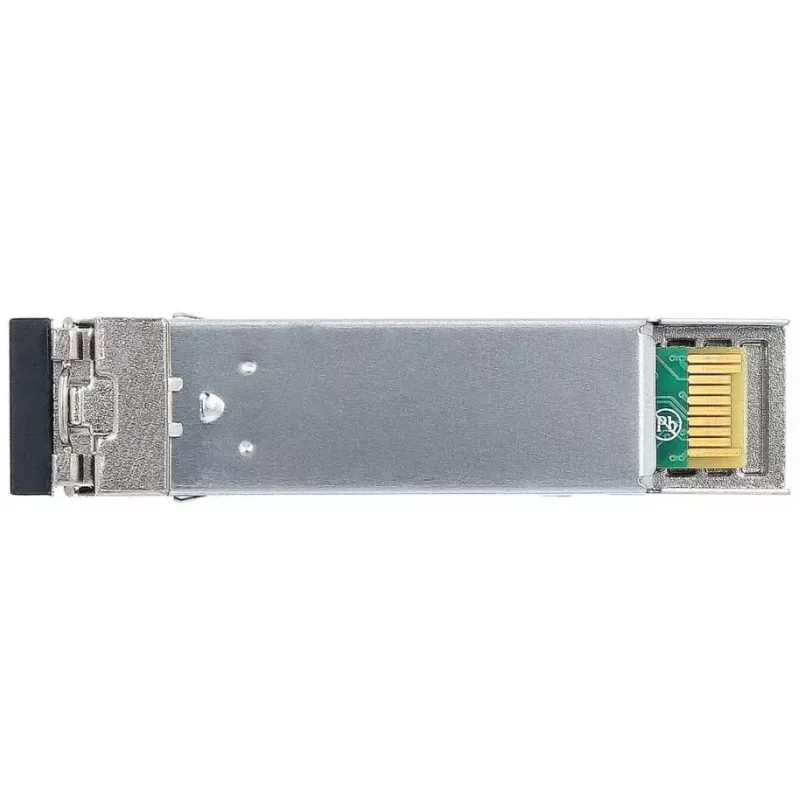

Fiber optic transceiver module BlueOptics 740-031849-BO SFP LC Aluminium 20g

The BlueOptics 740-031849-BO is a fiber optic SFP transceiver module designed for reliable high-speed single-mode transmission. It uses an LC duplex connector and a compact aluminum housing with a weight of approximately 20 g. The module implements 1000BASE-ZX optical signaling with a transmitter and receiver operating at 1550 nm, and is built to meet MSA interoperability guidelines for use in compatible networking equipment.

Advantages

The transceiver provides long-reach single-mode connectivity with support for established 1000BASE-ZX optical signaling. Its aluminum casing offers lightweight durability and thermal stability while the LC duplex interface enables simultaneous transmit and receive channels over separate fibers. The module is manufactured to MSA standards to ensure physical and protocol-level compatibility with devices that accept SFP LC single-mode modules.

Suitable for

• Long-distance single-mode Ethernet links up to the supported 1000BASE-ZX range
• Installation in SFP-capable switches, routers and storage systems that support 1000BASE-ZX modules
• Backbone and aggregation connections in enterprise and carrier networks
• Replacement or expansion of existing LC SFP single-mode ports

Key specifications

• Form factor: SFP (Small Form-factor Pluggable)
• Connector: LC duplex
• Optical standard: 1000BASE-ZX (single-mode)
• Wavelength: 1550 nm (transmit and receive)
• Weight: approx. 0.02 kg
• Housing material: aluminium (metal)

How to use

Install the BlueOptics SFP by inserting the module into an SFP slot on a compatible switch, router or other networking device while the host equipment is powered according to the vendor guidelines. Connect LC duplex single-mode fiber patch cords to the module’s LC ports, observing proper transmit/receive orientation. After insertion, verify link status and negotiated speed in the host device management interface and confirm the optical power and link parameters if available.

Recommendations

For optimal link performance, use single-mode fiber patch cords and patch panels rated for the intended reach, ensure connectors are clean before mating, and verify that the host device supports 1000BASE-ZX SFP modules and any digital diagnostic functions you require.
