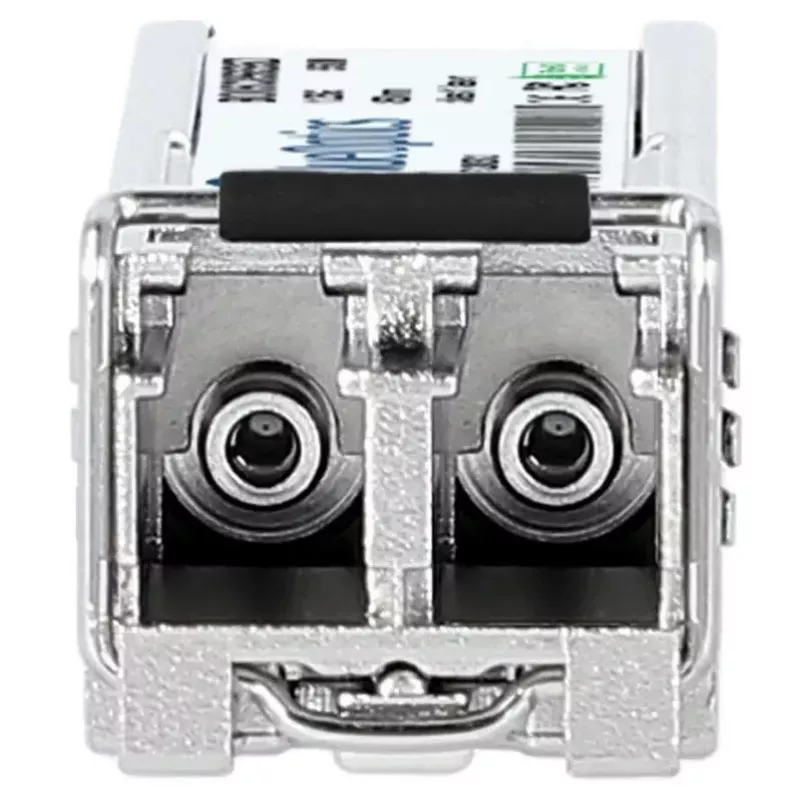

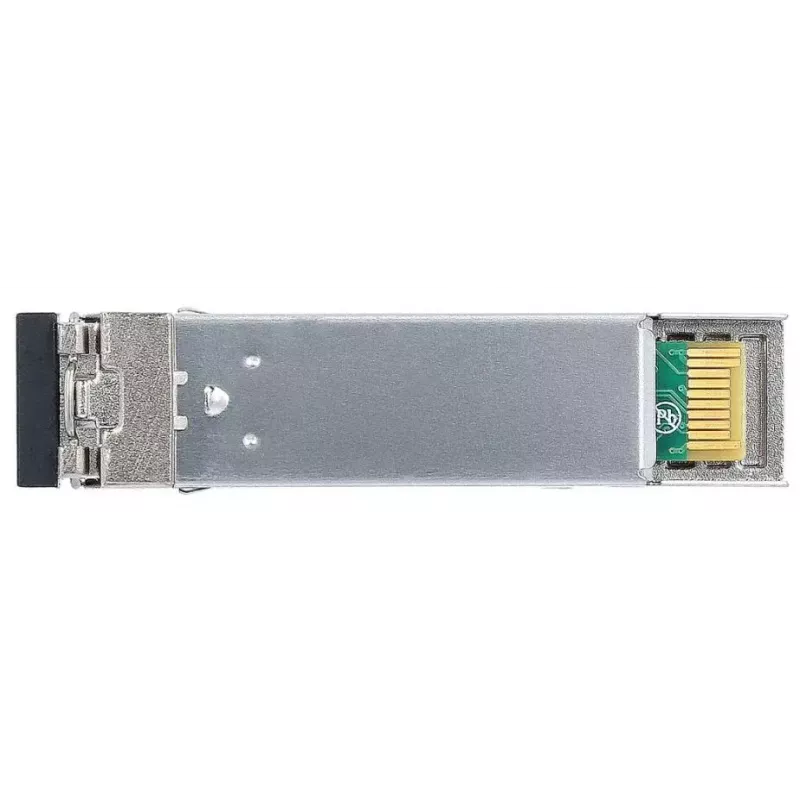

Fiber optic SFP transceiver BlueOptics 943 014-001-BO 550m Aluminium

The BlueOptics 943 014-001-BO is a fiber optic SFP transceiver designed for 1000Base-SX optical links over multi-mode fiber. Housed in an aluminium casing and weighing approximately 20 grams, this compact SFP module supports short-range high-speed data transmission up to 550 metres using an LC duplex connector. The module implements SFP interface standards and is intended for integration into switches, routers, storage systems and other network hardware that support industry-standard SFP transceivers.

Advantages

The aluminium housing provides a resilient and lightweight enclosure while the SFP form factor enables hot-pluggable installation in compatible network ports. With support for multi-mode fibre and transmission distances up to 550 m, the transceiver is suitable for typical intra-building and campus backbone connections. The module follows MSA-compatible SFP specifications to ensure interoperability with equipment that accepts standard 1000Base-SX SFP transceivers.

Suitable for

• Short-range Ethernet links within buildings and campus networks
• Connections between switches and aggregation points using multi-mode fibre
• Integration into routers, storage systems and other SFP-capable network appliances
• Replacement of compatible 1000Base-SX SFP modules in supported hardware

Key specifications

• Interface type: SFP (Small Form-factor Pluggable)
• Supported standard: 1000Base-SX (Gigabit Ethernet over multi-mode fiber)
• Wavelength: 850 nm (multi-mode fibre transmission)
• Maximum transmission distance: up to 550 m on multi-mode fibre
• Connector type: LC duplex
• Housing material and colour: aluminium
• Weight: approximately 0.02 kg

How to use

Insert the SFP transceiver into a compatible SFP slot on your network device while the device is powered according to the manufacturer's guidelines for hot-pluggable modules. Secure an LC duplex multi-mode fiber patch cable to the transceiver, ensuring correct transmit/receive orientation. Configure the network device for 1000Base-SX operation if required by the host system and verify link status through the device management interface. If the host supports digital diagnostics (DDM/DOM), enable and monitor optical parameters via the device software where available.

Recommendations

Use high-quality multi-mode fibre patch cords and appropriate patch panels to achieve the specified 550 m range. Confirm compatibility with the host device firmware and consult the equipment vendor documentation when enabling digital diagnostic monitoring features. Handle the transceiver carefully and protect connector end-faces from contamination; use dust caps when not connected.
