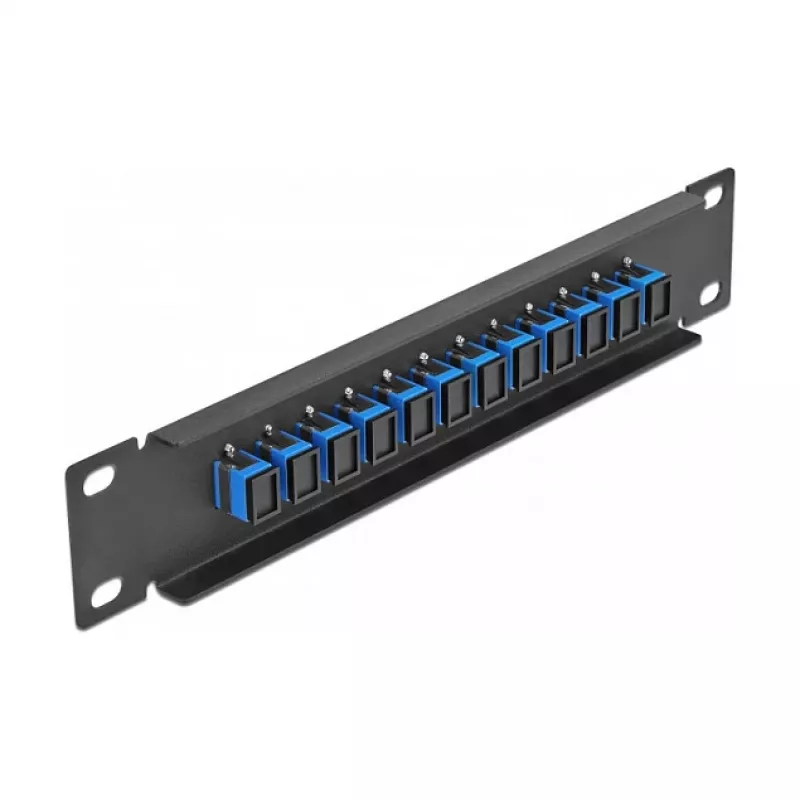

Fiber Optic Patch Panel DeLOCK 10 inch 12 Port SC Simplex blue 1U black

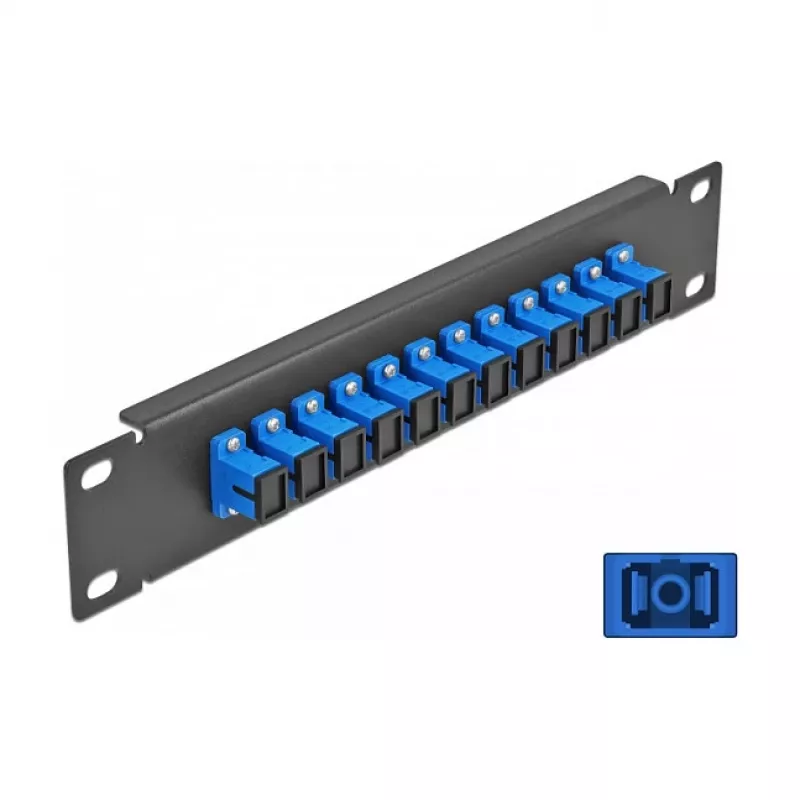

This Delock 10" fiber optic patch panel contains twelve SC Simplex couplers mounted in a 1U metal housing for installation in a 10" network cabinet. It provides a compact, rack‑mounted solution to organise and connect SC Simplex fiber optic connectors.

Advantages

The panel offers twelve SC Simplex ports for easy mating of fiber optic male connectors, a durable metal construction suitable for rack mounting, and a compact footprint (44 mm width, 10 mm height, 254 mm depth). The black and blue colour scheme aids visual identification of fibre connections.

Suitable for

• Organising SC Simplex fiber connections in 10" network cabinets
• Patch and cross‑connect applications in communications rooms and data closets
• Small to medium‑scale fiber installations requiring up to 12 SC Simplex ports

Key specifications

• Manufacturer: DELOCK
• Model / MPN: 66760
• EAN: 4043619667604
• Ports: 12 × SC Simplex
• Mounting: 10" rack, 1U
• Material: metal housing
• Colour: Black, Blue
• Dimensions (W × H × D): 44 mm × 10 mm × 254 mm

How to use

Mount the patch panel into a 10" rack at the desired 1U position using appropriate rack screws. Route the fiber cables to the rear or side entry points and terminate them with SC Simplex male connectors. Insert the SC male connectors into the front couplers until they engage securely. Label ports as required for identification and testing.

Recommendations

Handle fiber connectors carefully to avoid contamination; use dust caps when ports are unused. Clean connector endfaces before mating and follow standard fibre‑optic handling and safety procedures during installation and maintenance.
