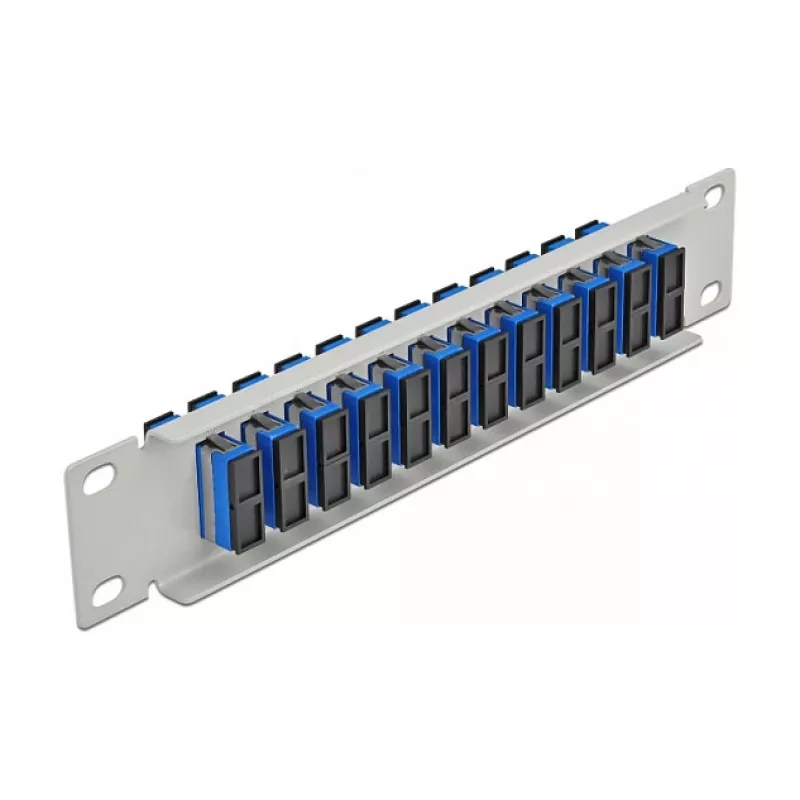

Fiber Optic Patch Panel DeLOCK 10 inch 12 Port SC Duplex Blue 1U Grey

The DeLOCK 10" Fiber Optic Patch Panel provides twelve SC Duplex fiber couplers in a 1U metal housing designed for mounting in a 10" network cabinet. It accepts SC Duplex connectors for straightforward fiber-to-fiber connections and is finished in blue and grey. The panel is compact and intended for structured fiber cabling installations.

Advantages

This patch panel offers 12 SC Duplex ports in a 1U form factor suitable for standard 10" racks. Constructed from metal, it provides mechanical durability and stable mounting. The SC Duplex couplers allow quick and reliable connection of fiber optic male connectors and simplify fiber management within patching infrastructure.

Suitable for

• Data centre fiber patching in 10" rack cabinets
• Telecommunications and network closets with SC Duplex cabling
• Fiber backbone termination and cross-connect panels

Key specifications

• Ports quantity: 12 (SC Duplex)
• Rack size: 10" (1U)
• Material: metal housing
• Colour: Blue, Grey
• Dimensions (approx.): 44 mm width, 10 mm height, 254 mm depth
• Brand: DELOCK, MPN: 66791, EAN: 4043619667918

How to use

Mount the panel in a 10" network cabinet using appropriate rack screws. Insert SC Duplex male connectors into the corresponding SC Duplex couplers until they snap into place. Use fiber patch cords to connect panel ports to equipment or other panels. Follow standard fiber handling procedures to avoid bending or contaminating connector end-faces.

Recommendations

Inspect and, if necessary, clean connector end-faces before mating. Avoid tight bends in fiber cables and secure patch cords to prevent strain. Use dust caps on unused ports to protect couplers when not in operation.
