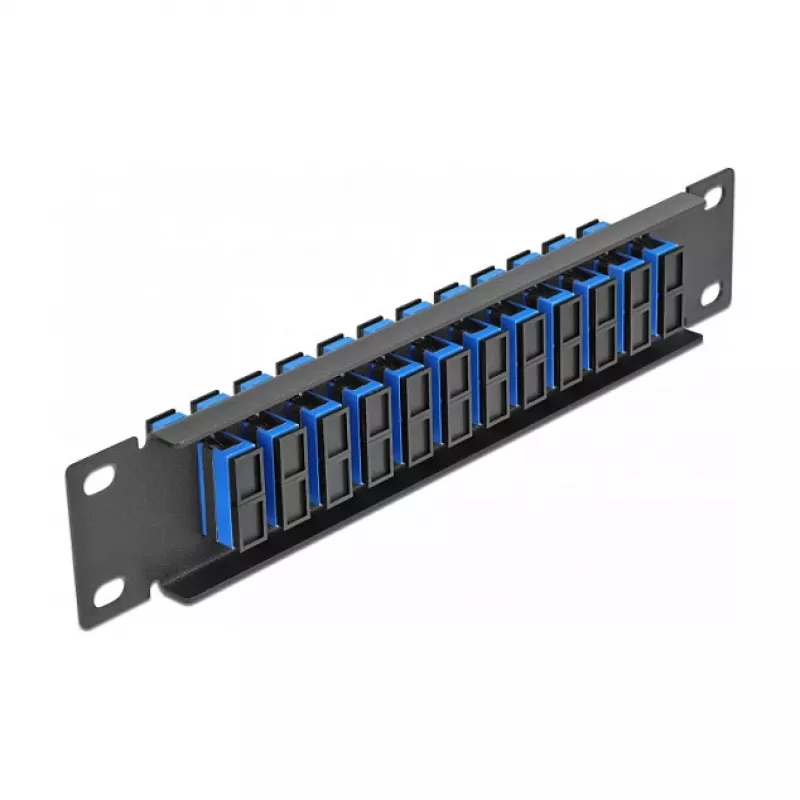

Fiber Optic Patch Panel DeLOCK 10 inch 12 Port SC Duplex blue 1U black

This Delock patch panel is a 1U, 10" rack-mounted unit with twelve SC Duplex fiber optic couplers. It provides a compact, metal housing in black with blue couplers for organizing and protecting fiber connections in standard network cabinets. The panel enables straightforward connection of fiber optic male connectors using SC Duplex adapters.

Advantages

The panel offers 12 SC Duplex ports in a 1U format for space-efficient rack installation and a durable metal construction for reliable mechanical protection. Color-coded (black housing with blue couplers) ports simplify identification. The unit is compatible with standard 10" network cabinets and supports easy front-access connection and maintenance of fiber links.

Suitable for

• Small and medium enterprise network racks
• Telecommunications distribution frames in 10" cabinets
• Data closets and server rooms requiring fiber patching
• Fiber optic testing and temporary cable rearrangement

Key specifications

• Manufacturer: DELOCK
• Model / MPN: 66771
• EAN: 4043619667710
• Form factor: 1U, 10" rack-mount
• Ports: 12 × SC Duplex
• Material: metal housing
• Product colour: Black housing, Blue couplers
• Dimensions (W×H×D): 254 mm × 44 mm × 10 mm

How to use

Mount the patch panel into a standard 10" network cabinet using the provided rack screws. Route fiber patch cables to the rear of the cabinet and insert SC male connectors into the front-facing SC Duplex couplers until they click into place. Label ports as required for easy identification and perform continuity testing after connections are made.

Recommendations

Use appropriate bend-radius management and strain relief for incoming fiber cables. Clean connector end-faces before connecting to reduce signal loss and follow standard fiber handling procedures to protect the adapters and connectors from dust and mechanical stress.
