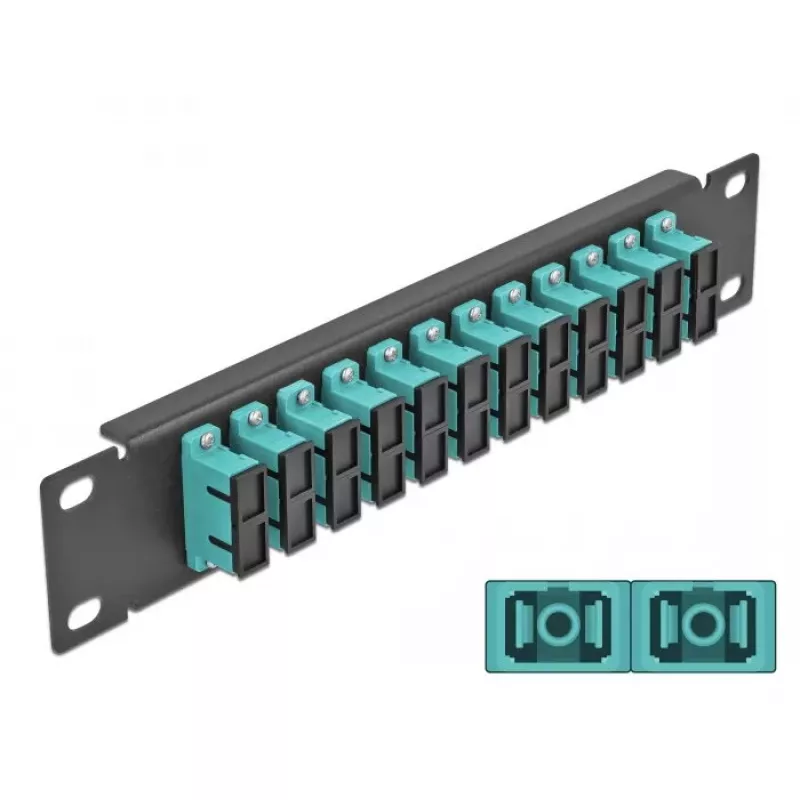

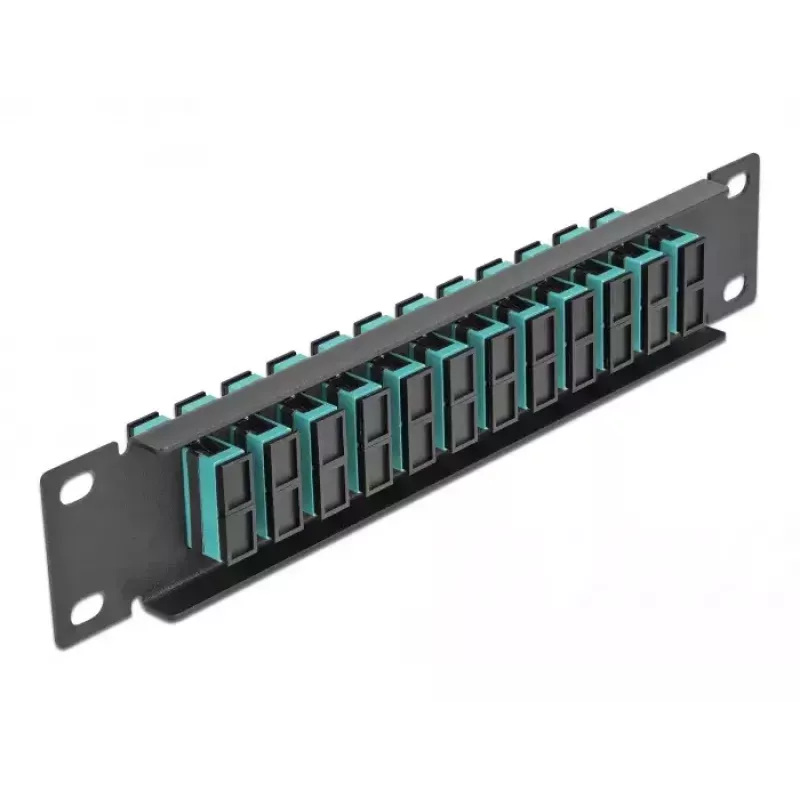

Fiber Optic Patch Panel DeLOCK 10 inch 12 Port SC Duplex aqua 1U black

The DeLOCK 10" 12 Port SC Duplex patch panel provides twelve SC Duplex fiber optic couplers in a 1U metal housing for installation in a 10" network rack. It enables tidy and accessible termination of fiber connections and supports standard SC Duplex connectors for straightforward mating of fiber optic male connectors.

Advantages

The patch panel offers twelve SC Duplex ports in a compact 1U form factor, a durable metal construction suitable for rack mounting, and a clear colour scheme (aqua and black) for easy identification. It simplifies cable management and provides a stable mechanical interface for SC Duplex fiber connections.

Suitable for

• Rack-mounted fiber distribution in 10" network cabinets
• Organising and terminating SC Duplex fiber links
• Telecommunications rooms, server racks, and structured cabling closets

Key specifications

• Brand: DELOCK
• Model / MPN: 66774
• EAN: 4043619667741
• Ports: 12 × SC Duplex
• Form factor: 1U, for 10" racks
• Material: metal housing
• Colour: aqua and black
• Dimensions (W×H×D): 44 mm × 10 mm × 254 mm

How to use

Install the panel into a standard 10" rack occupying 1U of rack space and secure it with the appropriate rack screws. Insert SC Duplex fiber adapters into the front ports, then connect SC fiber patch cords to the couplers to mate male connectors. Route and secure incoming and outgoing fiber cables at the rear or alongside the panel to maintain strain relief and proper bend radius.

Recommendations

For reliable performance, use compatible SC Duplex patch cords, avoid exceeding recommended fiber bend radii, and mount the panel in a protected rack environment. Label ports to simplify maintenance and testing.
