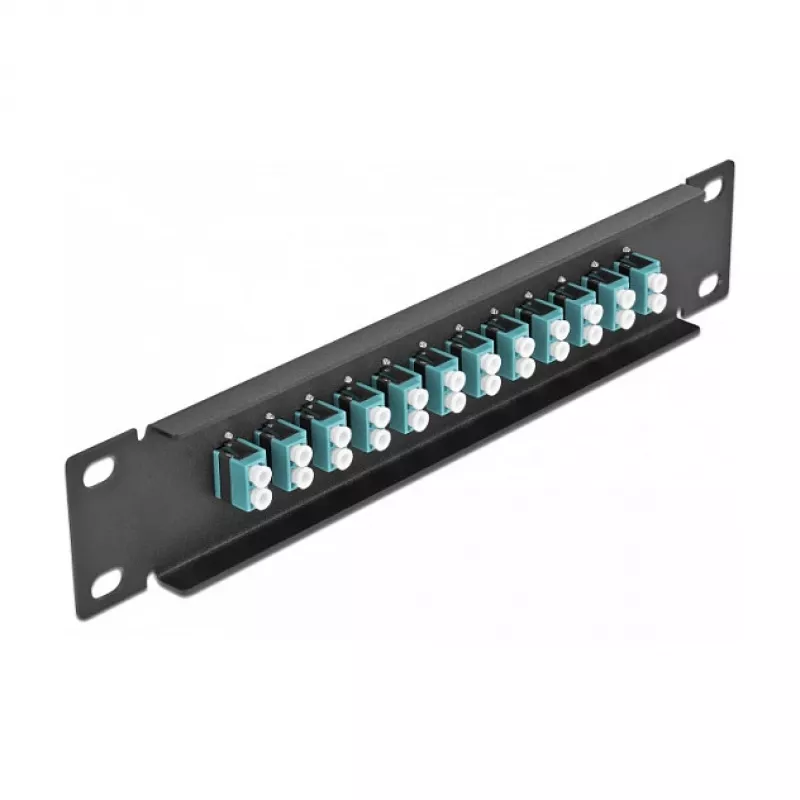

Fiber Optic Patch Panel DeLOCK 10 inch 12 Port LC Duplex aqua 1U black

The DeLOCK 10" 12 Port LC Duplex fiber optic patch panel is a 1U rackmount unit designed for organization and management of fiber optic connections in a 10" network cabinet. It features twelve LC Duplex couplers that allow simple connection of fiber optic male connectors. Constructed from durable metal, the panel has an aqua and black finish and compact dimensions suitable for standard racks.

Advantages

The panel provides twelve LC Duplex ports in a 1U form factor for high-density fiber management. Metal construction ensures mechanical robustness and long service life. The LC Duplex couplers enable straightforward mating of fiber connectors, simplifying installation and reconfiguration in a 10" cabinet. Its compact footprint helps save rack space while keeping connections accessible and tidy.

Suitable for

• Rack-mounted fiber optic distribution in 10" network cabinets
• FTTx installations and telecommunications closets
• Server rooms and data center patching panels
• Fiber backbone terminations and cross-connects

Key specifications

• Brand: DELOCK
• Model / MPN: 66768
• EAN: 4043619667680
• Form factor: 1U rackmount (10")
• Ports: 12 × LC Duplex
• Material: Metal
• Colour: Aqua, Black
• Dimensions (W × H × D): 44 mm × 10 mm × 254 mm

How to use

Install the patch panel into a compatible 10" network cabinet using standard 1U mounting positions. Terminate fiber cables to the LC Duplex couplers by inserting the appropriate LC male connectors into the couplers until they click into place. Label ports as needed for identification and route cables to maintain bend-radius compliance and organized cable management. For changes, disconnect the LC connectors and reinsert new ones as required.

Recommendations

Use with compatible LC Duplex fiber connectors and observe manufacturer guidelines for cable bending radius and connector cleanliness. Ensure the rack and cabinet provide adequate support and grounding for installed equipment.
