Fiber optic patch cable DIGITUS E-2000 (LSH) to LC, Singlemode OS2, 3 m, LSOH, yellow

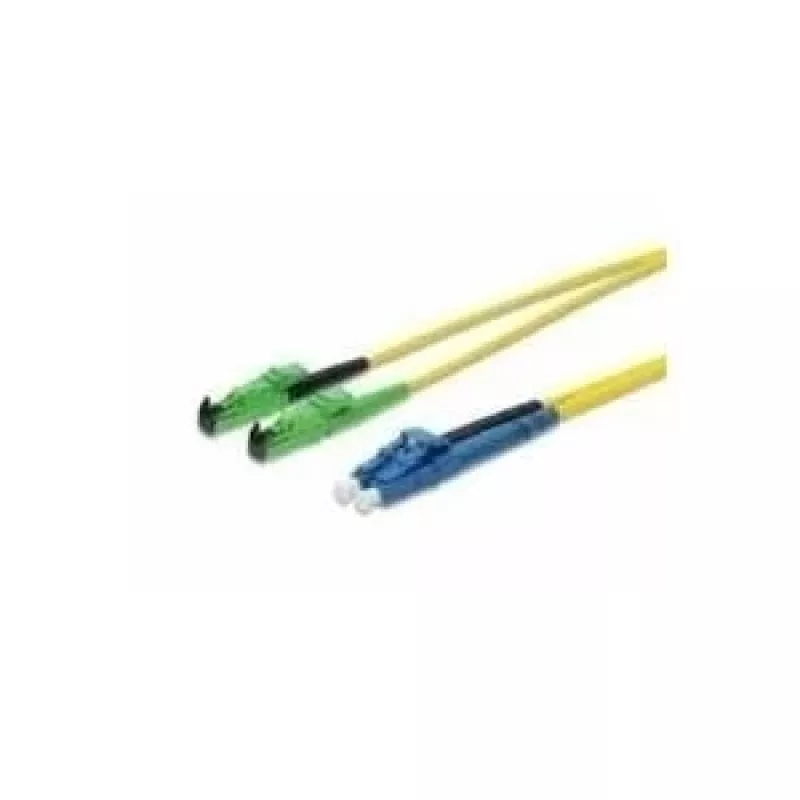

Fiber optic patch cable DIGITUS E-2000 (LSH) to LC, Singlemode OS2, 3 m, LSOH, yellow. This singlemode fiber cable features an E‑2000 (LSH) connector on one end and an LC connector on the other, with OS2 fiber, a 3 m length and a yellow LSOH jacket. Each cable is packed individually in a polybag and includes a test report to verify optical performance and loss values.

Advantages

The E‑2000 connector from DIGITUS provides precise alignment and low insertion loss (typically less than 0.1 dB). The spring‑mounted protective cap closes automatically when the connector is unplugged to protect the ferrule from dust and scratches and to shield the user from harmful laser beams. The LSOH jacket and singlemode OS2 fiber ensure reliable transmission and compliance with many indoor cabling environments.

Suitable for

• Singlemode fibre network links
• Data centre and telecom backbone connections
• InfiniBand and high‑speed optical interconnects
• Indoor installations requiring low smoke and halogen‑free materials

Key specifications

• Connector 1: E‑2000 (LSH)
• Connector 2: LC
• Fiber type: Singlemode OS2
• Length: 3 m
• Jacket: LSOH (yellow)
• Packaging: Individual polybag with test report

How to use

Inspect the test report and visually check connector endfaces before installation. Insert the E‑2000 connector and the LC connector into the corresponding adapter ports until they click or seat fully. Ensure that dust caps are removed only immediately before mating and that the automatic protective cap of the E‑2000 is allowed to operate freely. Route the cable without sharp bends and secure it to avoid strain on connectors.

Recommendations

Store and handle the cable in a clean environment. Use approved cleaning tools for fiber endfaces and adhere to bend‑radius limits recommended for singlemode cables. Replace protective caps when connectors are not in use to maintain low insertion loss and prevent contamination.
