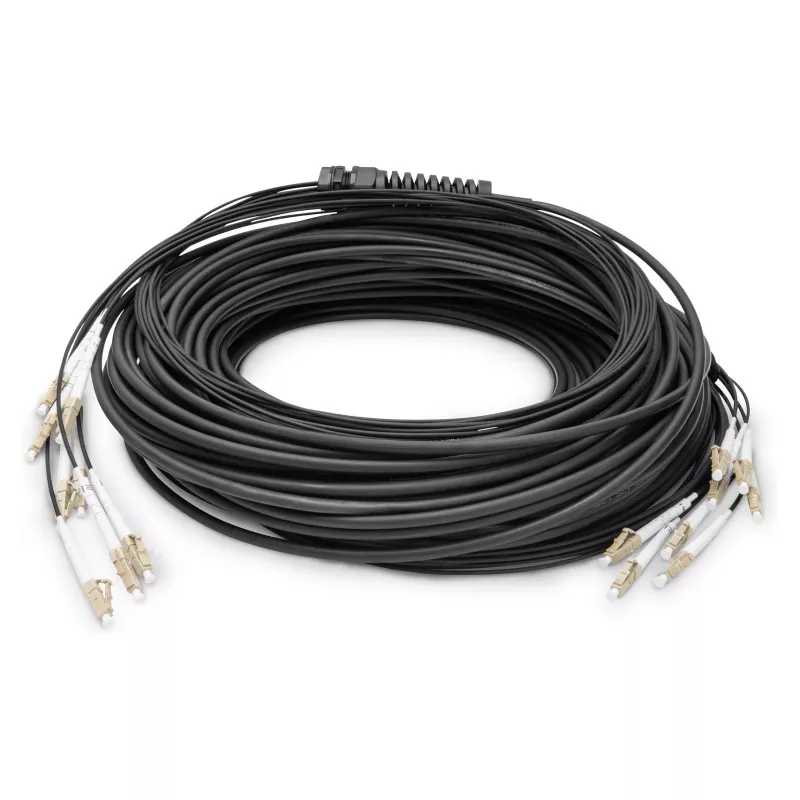

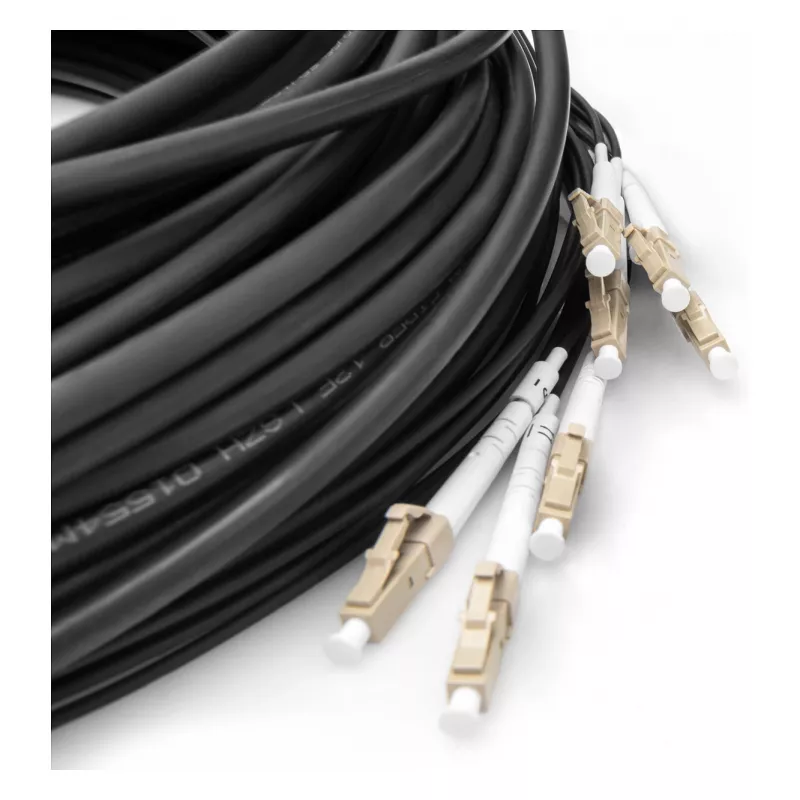

Fiber breakout cable DIGITUS DK-24338U030BK-BBB, pre-assembled OM4 multimode 8-core, LC/UPC–LC/UPC, 30 m, U-DQ(ZN) BH

Pre-assembled fiber optic breakout cable for fast, flexible installation of high-bandwidth network links. The Digitus universal breakout cable OM4 (U-DQ(ZN) BH) comes with eight multimode fibers and factory-fitted LC/UPC connectors on both ends, ready for immediate plug & play use. The cable uses LSZH jacket material, is halogen-free and designed with individual mechanically protected fibers and a robust overall construction for indoor and outdoor applications.

Advantages

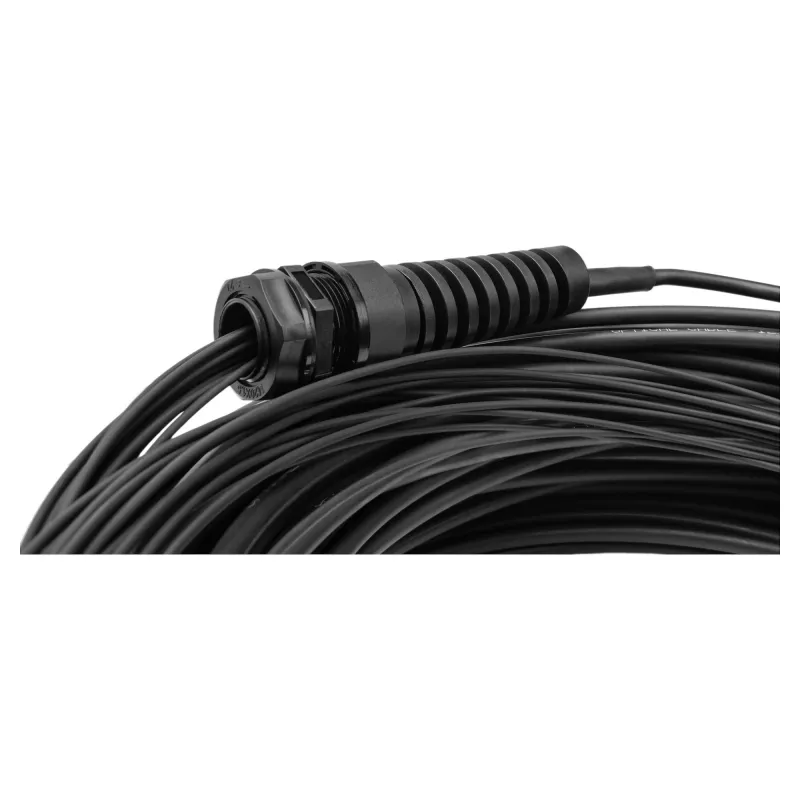

The pre-terminated design eliminates field splicing and reduces installation time while measurement documentation supplied with the cable removes the need for additional acceptance tests. High-quality components and factory-polished LC/UPC connectors ensure low insertion loss (max. 0.3 dB) and high return loss (multimode min. 30 dB). Pull-in aids on both ends and a robust protective tube provide additional mechanical protection during installation.

Suitable for

• Data center horizontal and vertical cabling
• Connections between network cabinets and patch panels
• FTTx and enterprise backbone links requiring OM4 multimode
• Indoor and protected outdoor installations

Key specifications

• Brand: DIGITUS
• Model / MPN: DK-24338U030BK-BBB
• Fibre type: OM4 multimode (50/125 µm)
• Number of fibers: 8
• Cable type: Breakout / U-DQ(ZN) BH

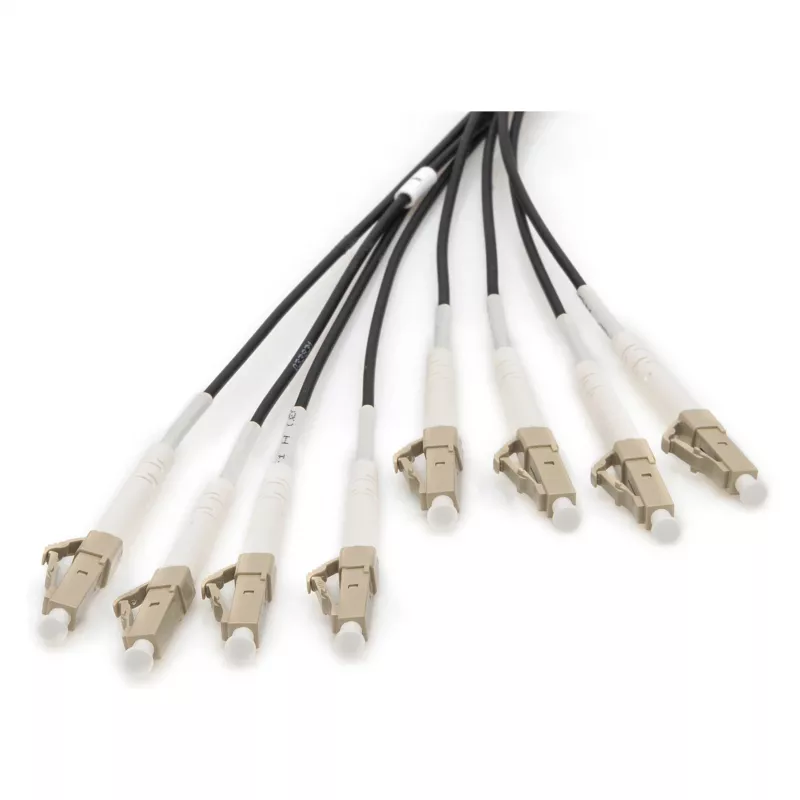

• Connectors: LC/UPC to LC/UPC (male)
• Connector polish: UPC
• Length: 30 m
• Outer cable diameter: 6.0 mm
• Outer protective tube diameter: 30.5 mm (protective tube 28.5 mm)
• Jacket material: Low smoke zero halogen (LSZH), color: Black
• Halogen-free: Yes (EN 50267-2-3)
• Insertion loss (IL) max: multimode 0.3 dB (singlemode listed similarly)
• Return loss (RL) min: multimode 30 dB (singlemode 50 dB where applicable)
• Operating / storage temperature: -20 to 70 °C

How to use

Route the pre-assembled breakout cable between network cabinets or patch panels using the built-in pull-in aids. Terminate by plugging the LC/UPC connectors into the corresponding adapter or transceiver ports. Secure the outer protective tube and cable to strain-relief points and cable management hardware to avoid excessive bending. No additional splicing is required thanks to the factory-fitted connectors; use the supplied measurement protocol to verify performance after installation if desired.

Recommendations

Handle connectors by the ferrule housing, avoid contaminating endfaces, and follow standard fiber cleaning procedures before insertion. Respect minimum bend radii and secure the cable to prevent mechanical stress; use the provided measurement report to confirm link performance after installation.
