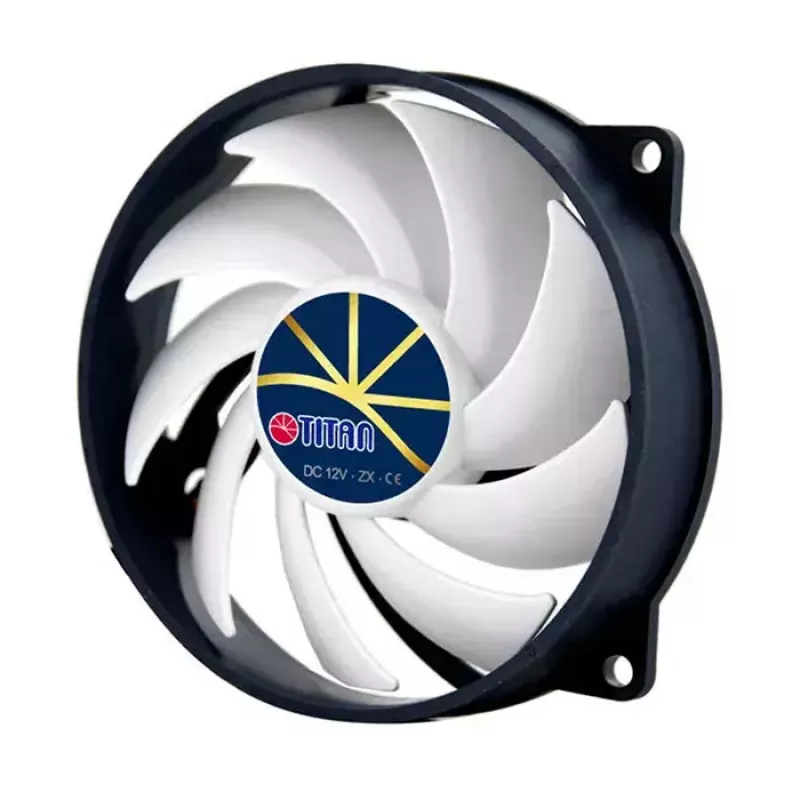

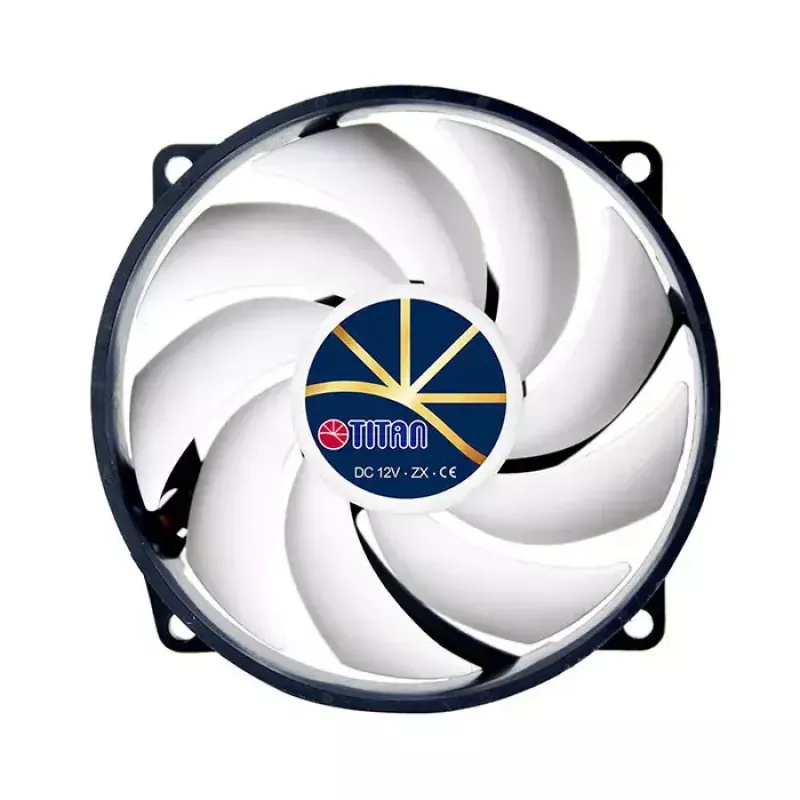

Fan Titan TFD-9525H12ZP/KE(RB)

The Titan TFD-9525H12ZP/KE(RB) is a 95 mm computer case fan designed for efficient, low-noise cooling. Operating at 12 V with a speed range from 270 to 2700 RPM and a maximum static pressure of 0.14 mmH2O, this compact 95×95×25 mm fan combines an intelligent speed-control system with TITAN's Z-AXIS bearing for extended durability and stable performance.

Advantages

The fan provides extreme quiet operation by regulating speed down to a minimum of 270 RPM while maintaining cooling capability. Intelligent speed control reduces power consumption by adjusting the motor speed to demand. TITAN's exclusive Z-AXIS bearing increases service life and improves operational stability compared with standard bearings.

Suitable for

• Small form-factor PC cases and compact builds
• Systems requiring low-noise operation (home or office PCs)
• Cooling for components with moderate airflow and pressure needs

Key specifications

• Model: TFD-9525H12ZP/KE(RB)
• Type: Fan
• Fan diameter: 95 mm
• Dimensions: 95 × 95 × 25 mm
• Voltage: 12 V
• Speed range: 270–2700 RPM
• Max static pressure: 0.14 mmH2O
• Colour: Black, White
• Bearing: TITAN Z-AXIS bearing

How to use

Install the fan into a compatible 95 mm mounting location inside the computer case, aligning the airflow direction with your system cooling layout. Connect the fan to the appropriate 3- or 4-pin header (or adapter) on the motherboard or fan controller at 12 V. Ensure secure mounting with screws to avoid vibration and verify the fan spins freely before powering the system.

Recommendations

For quiet systems, configure fan curves in BIOS or a fan-control utility to take advantage of the minimum 270 RPM setting. Periodically clean the fan blades and housing to maintain airflow and extend the life of the Z-AXIS bearing.
