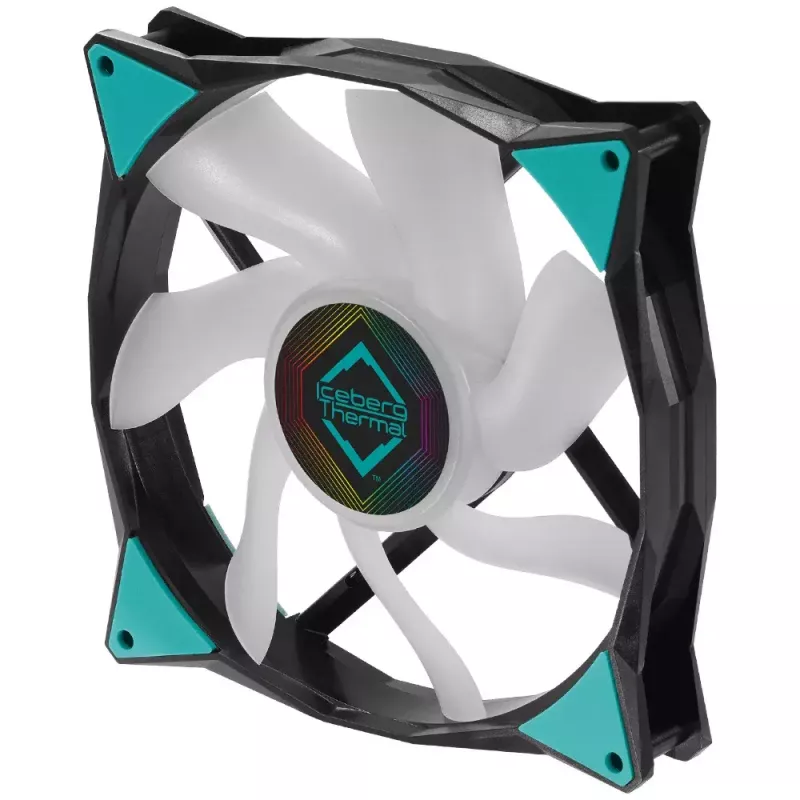

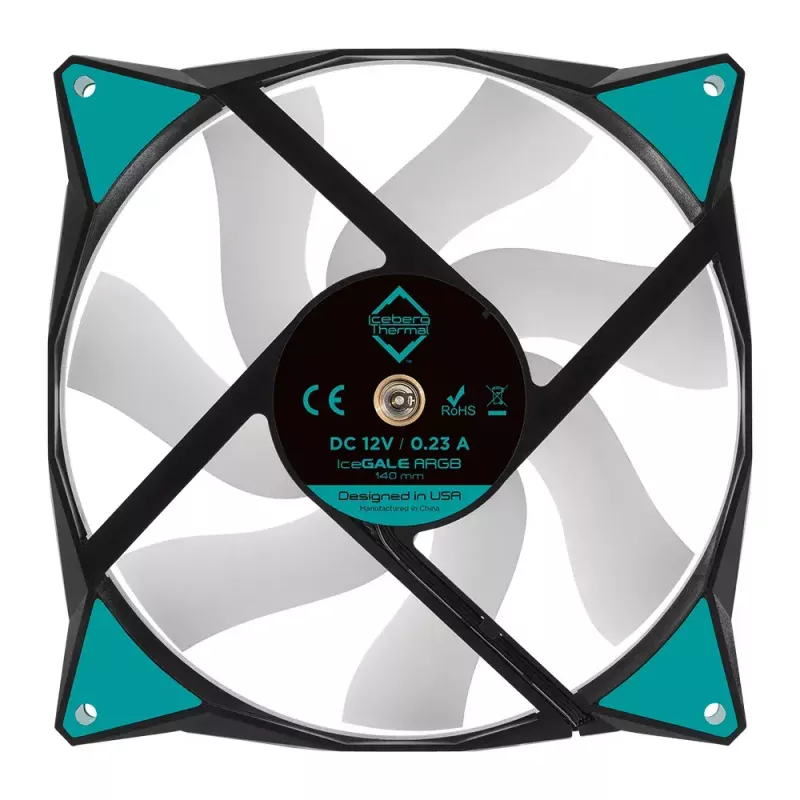

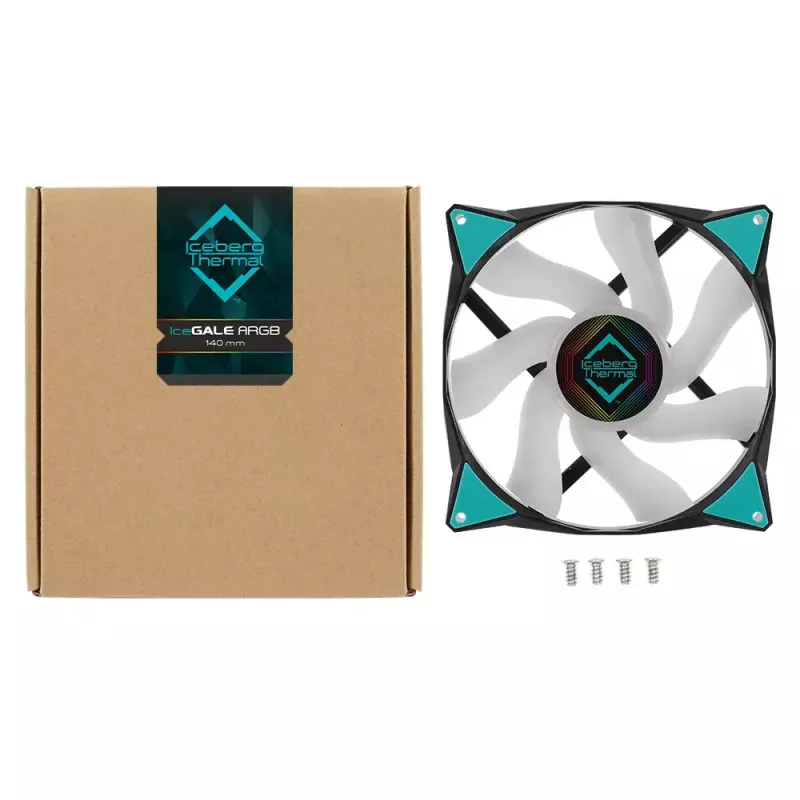

Fan Iceberg Thermal IceGALE ARGB 14 cm Black

The Iceberg Thermal IceGALE ARGB 14 cm Black is a 140 mm PC cooling fan that combines addressable RGB lighting with a durable dual ball bearing design. It operates on standard 12V systems and covers a speed range from 500 to 1600 RPM, delivering up to 96 CFM airflow and a maximum static pressure of 2.65 mmH2O to support efficient cooling in desktop computer builds.

Advantages

The fan integrates Vivid ARGB lighting that can be synchronized via motherboard ARGB headers, while a rigid brass housing and dual ball bearings increase reliability and extend operational lifetime. Two-plane balance and anti-vibration pads reduce wobble and unwanted noise. An automatic start/stop function mutes the fan below a defined PWM threshold to lower power consumption and create a quieter environment.

Suitable for

• Case ventilation in desktop PC builds
• Supplementary cooling for GPU/CPU enclosures
• Systems requiring addressable RGB lighting synchronization

Key specifications

• Model: Iceberg Thermal IceGALE ARGB 14 cm Black (ICEGALE14A-E0A)
• Fan diameter: 140 mm
• Operating voltage: 12 V
• Speed range: 500–1600 RPM
• Maximum airflow: 96 CFM
• Maximum static pressure: 2.65 mmH2O
• Bearing type: Dual ball bearing
• Colour: Black
• EAN: 1230000071215

How to use

Install the fan into a compatible 140 mm fan slot in your PC case or on supported cooling brackets, securing it with screws through the mounting holes. Connect the power and PWM control cable to the motherboard fan header (12V) and the ARGB cable to an addressable RGB header to enable lighting control. Ensure the cable routing does not obstruct the blades and that airflow direction matches your desired intake or exhaust configuration.

Recommendations

For quiet operation, enable PWM control in the motherboard BIOS or fan-control software and set the low-speed threshold near the manufacturer’s specified 21% PWM point. Periodically check and clean dust from the fan blades and surrounding area to maintain optimal airflow and prolong bearing life.
