F plug for crimping RG-59 DeLOCK 90032

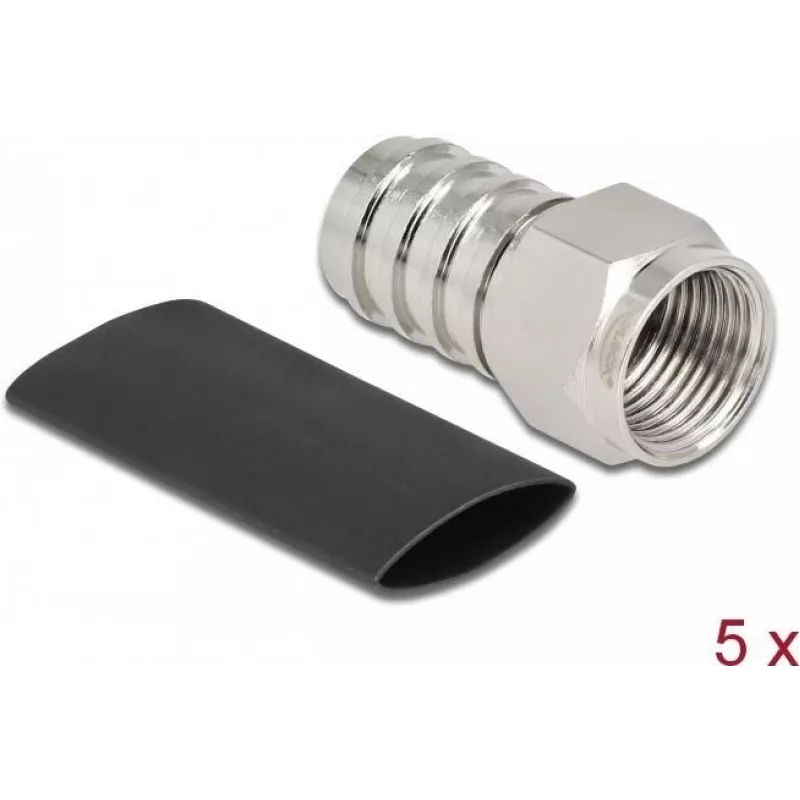

The DeLOCK F plug for crimping RG-59 is designed for reliable radio frequency connections. It features a nickel-plated contact and a characteristic impedance of 75 Ω. The connector is supplied in a pack of 5 and includes a matching shrink tube for secure installation. Physical dimensions are approximately 11 mm (width) × 21 mm (depth) × 11 mm (height).

Advantages

The nickel-plated contact ensures corrosion resistance and stable signal transmission. The included shrink tube provides strain relief and protection of the connection. The 75 Ω impedance makes the plug compatible with standard RG-59 cabling and RF equipment. Delivery in packs of five facilitates multiple installations and maintenance tasks.

Suitable for

Key specifications

How to use

Prepare the RG-59 cable by stripping the outer jacket, braid and dielectric to the appropriate lengths for the crimp connector. Slide the supplied shrink tube over the cable before attaching the connector. Insert the cable centre conductor and braid into the F plug, then crimp according to the crimping tool manufacturer’s instructions to secure the connector. After crimping, position the shrink tube over the joint and apply heat to shrink it for added strain relief and protection.

Recommendations

For best results, use a compatible RG-59 crimping tool and apply heat evenly to the shrink tube. Verify impedance matching and signal quality after installation to ensure reliable RF performance.
