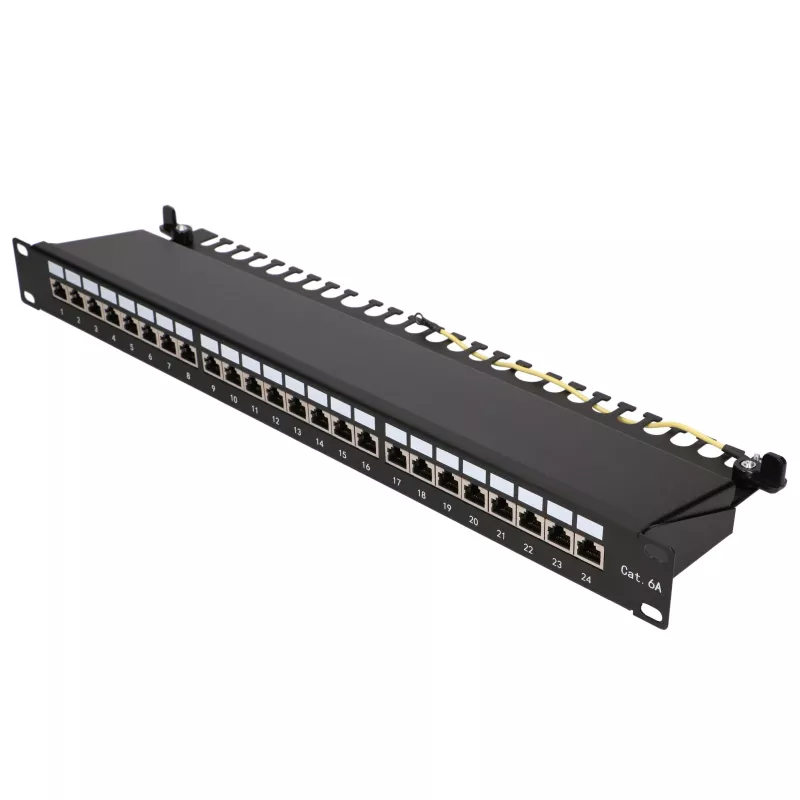

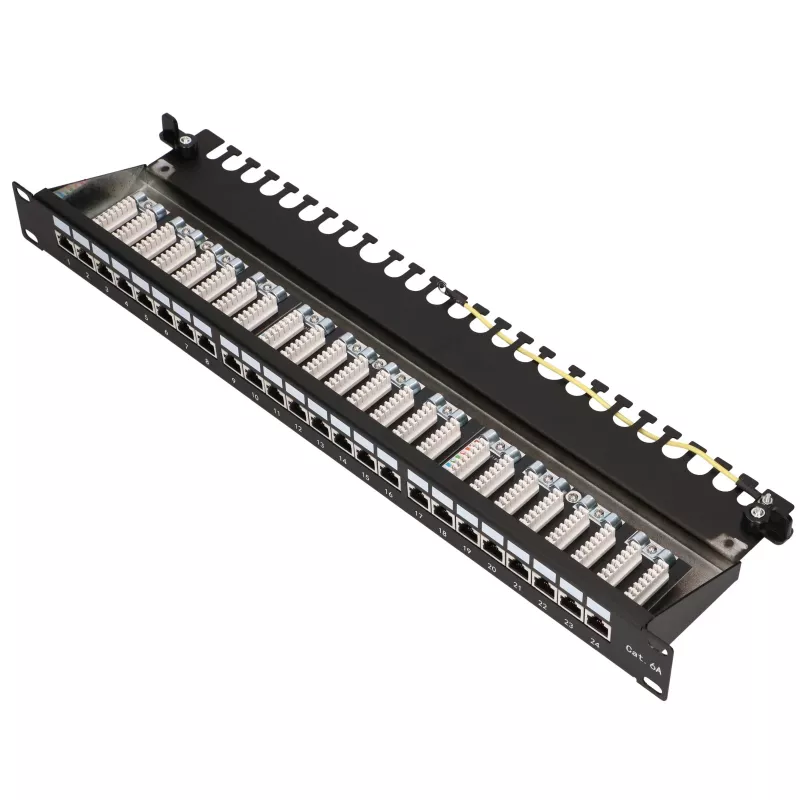

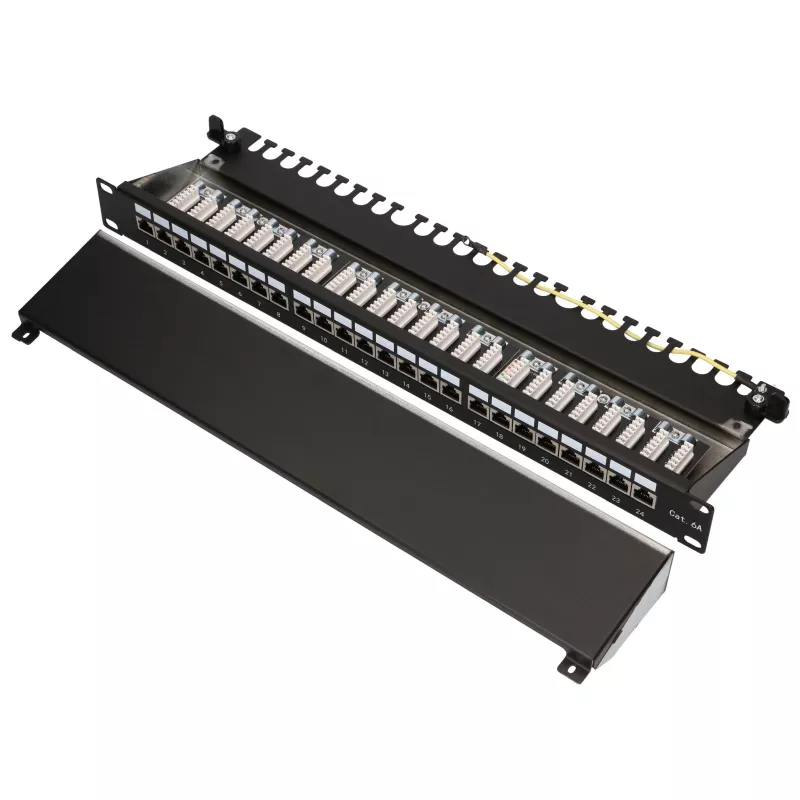

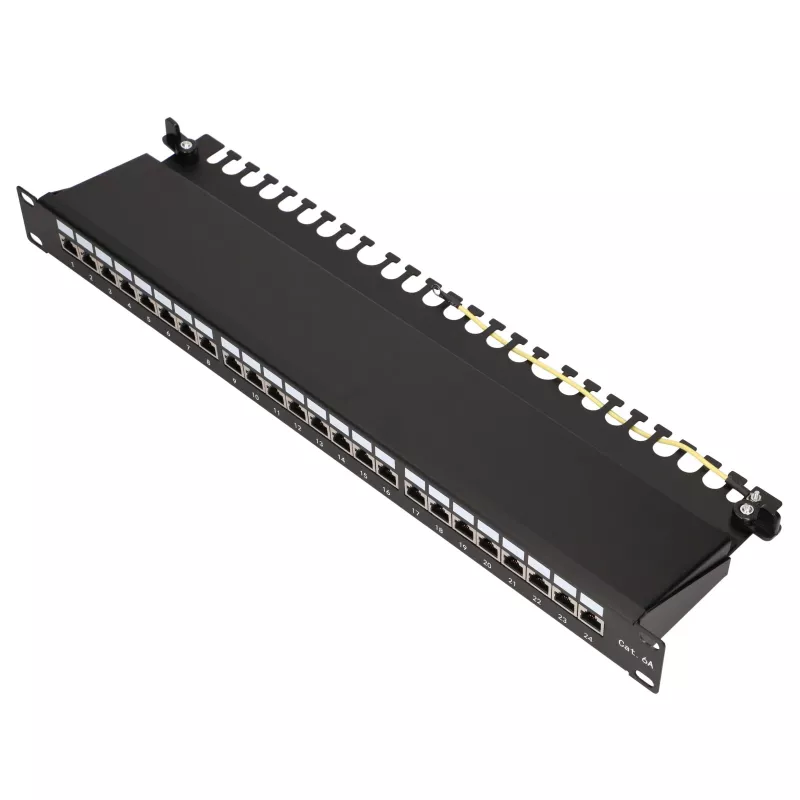

Extralink CAT6A STP 24-Port Shielded Patch Panel, 1U 19-Inch Rackmount, 10G Ready, Black

Engineered for 10 Gigabit Ethernet, this 24-port CAT6A shielded patch panel delivers up to 500 MHz bandwidth and reliable performance in high-density network environments. The robust SPCC steel housing with integrated grounding ensures signal integrity and protection against EMI/RFI interference.

Overview

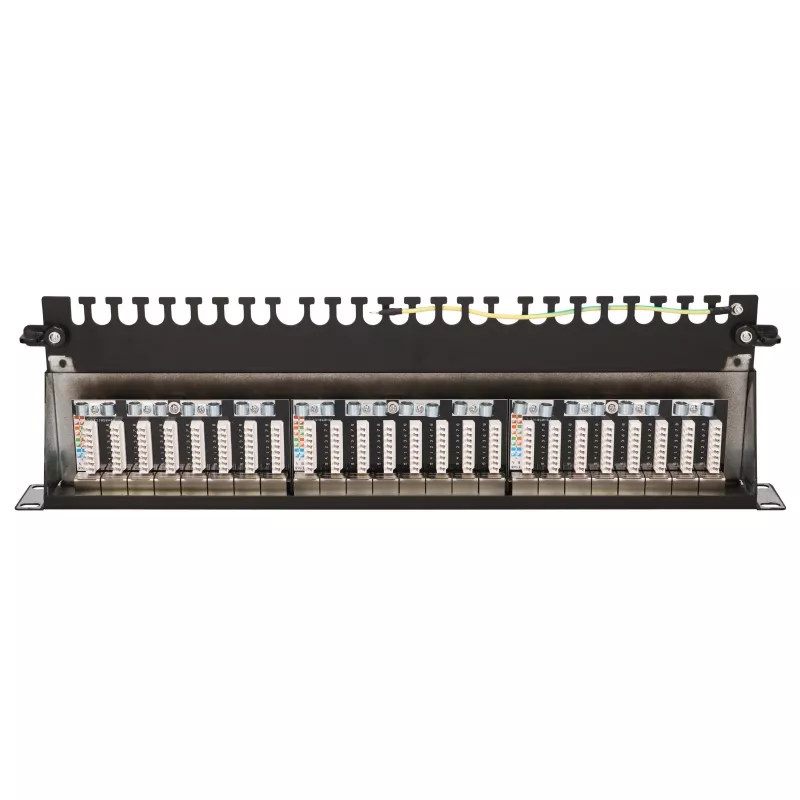

The Extralink CAT6A STP patch panel provides a centralized termination point for shielded twisted pair cabling in 19-inch racks. With 24 RJ45 ports grouped in sets of eight, it supports T568A/B wiring schemes and features dual IDC (110/Krone) termination for fast, tool-free installation. Each port is gold-plated (50µ") to guarantee low contact resistance and long-term durability.

What stands out

• Supports 10GBASE-T for high-speed data transmission up to 500 MHz.
• Fully shielded design with integrated grounding wire for superior noise immunity.
• Dual IDC termination (110/Krone) compatible with standard punch-down tools.
• PoE, PoE+, and UPoE ready to power devices like IP cameras and access points.
• Color-coded wiring labels for quick and error-free installation.

Technical details

• Ports: 24 x RJ45 shielded
• Category: CAT6A (Category 6A)
• Shielding: STP (Shielded Twisted Pair)
• Mounting: 19-inch rack, 1U height
• Termination: 110/Krone dual IDC
• Data rate: Up to 10 Gbps
• Frequency: 500 MHz
• Housing material: SPCC steel
• Contact plating: 50µ" gold over phosphor bronze
• Standards: TIA/EIA-568-C.2, ISO/IEC 11801, RoHS
• Operating temperature: -10°C to 60°C
• Humidity: 10% to 90% RH (non-condensing)

Our verdict

A professional-grade patch panel that combines high performance with ease of installation. Ideal for data centers, server rooms, and enterprise networks requiring reliable 10G connectivity and robust shielding.
