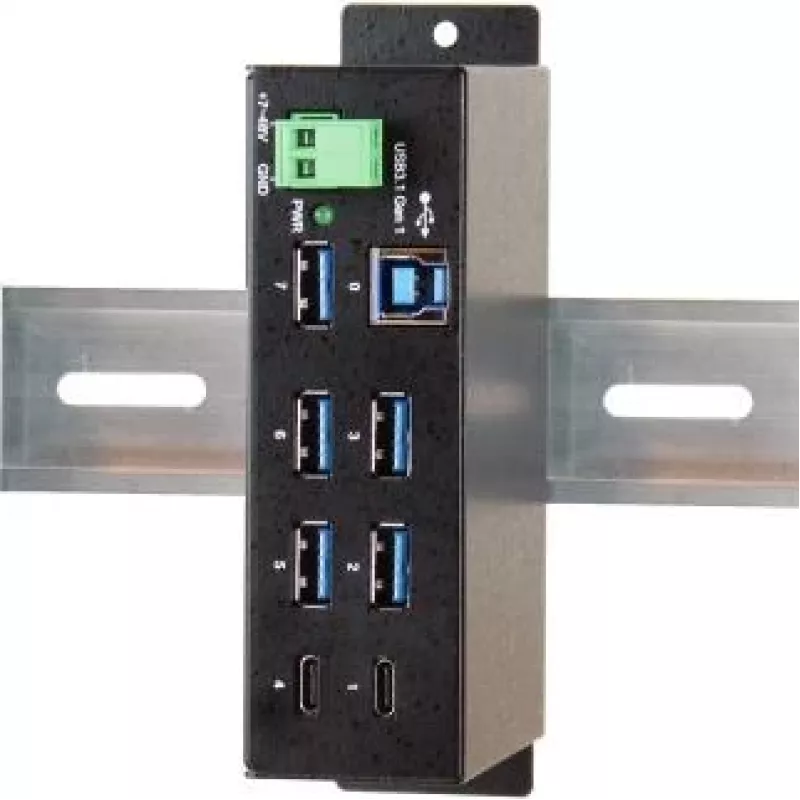

EXSYS EX-1197HMS 7-Port USB 3.1 Gen 1 Industrial DIN-Rail Hub with DC Power

Industrial-grade USB 3.1 Gen 1 hub with 7 downstream ports, engineered for DIN-rail mounting and harsh environments. Delivers up to 5 Gbps data transfer and robust DC power input from 9 to 48V, making it ideal for automation, machine vision, and industrial PC applications.

Advantages

Metal housing with wide operating temperature range (-40°C to 85°C) ensures reliability in extreme conditions. Per-port overcurrent protection and ESD protection (15kV air, 8kV contact) safeguard connected devices. Plug-and-play and hot-swappable design simplifies integration.

Suitable for

• Industrial automation and control cabinets
• Machine vision systems with multiple cameras
• Manufacturing and process control environments
• Transportation and in-vehicle computing
• Any application requiring a rugged, DIN-rail mountable USB hub

Key specifications

• 7 x USB 3.1 Gen 1 Type-A downstream ports, 1 x Type-B upstream
• Data transfer rate up to 5 Gbps
• DC power input: 9-48V via terminal block
• DIN-rail mountable metal housing
• Operating temperature: -40°C to 85°C
• ESD protection: 15kV air, 8kV contact
• LED indicators for power and per-port status
• Compatible with Windows, macOS, and Linux

Recommendations

For reliable USB expansion in industrial settings, the EXSYS EX-1197HMS offers the durability and performance needed to keep operations running smoothly.
