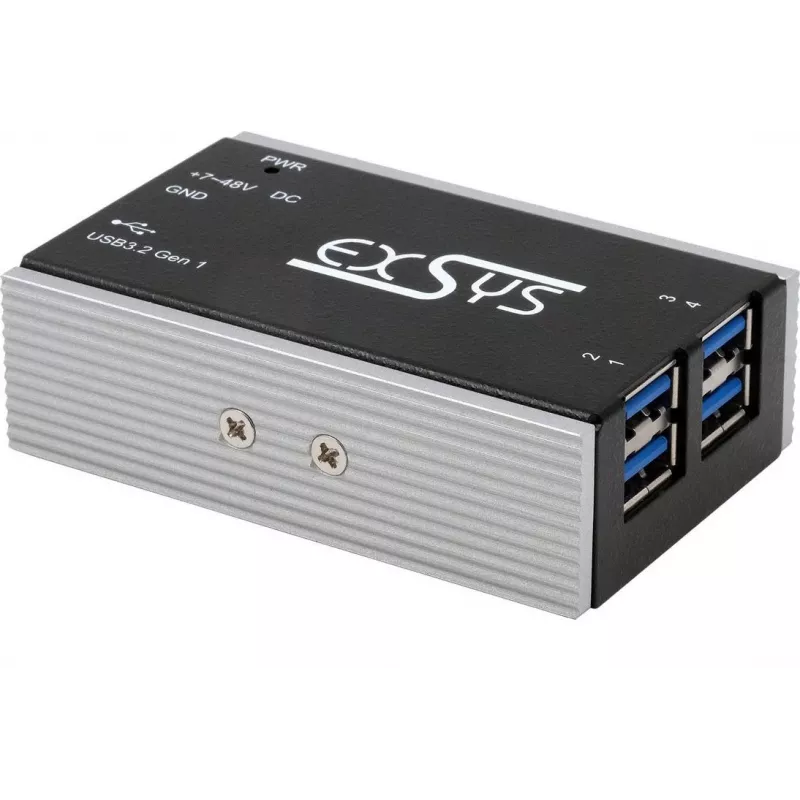

EXSYS EX-1181HMS-WT 4-Port USB 3.2 Gen 1 Metal Hub, 15kV ESD Protection, -40°C to +85°C

The EXSYS EX-1181HMS-WT is an industrial-grade 4-port USB 3.2 Gen 1 hub housed in a compact metal enclosure. Designed for harsh environments, it offers 15kV ESD protection and an extended operating temperature range from -40°C to +85°C. The hub features a USB Type-B upstream port and four USB Type-A downstream ports, supporting data transfer rates up to 5 Gbps. It can be bus-powered or self-powered via the included terminal block or USB-B connector. The metal housing ensures durability, and optional DIN-rail mounting makes it ideal for industrial automation, embedded systems, and commercial installations.

Advantages

Robust metal construction with industrial temperature range and ESD protection ensures reliable operation in demanding environments. Plug-and-play installation with no driver required for Windows, macOS, and Linux. Flexible power options allow bus-powered or external power supply use.

Suitable for

• Industrial automation and control systems
• Embedded PC and IoT applications
• Point-of-sale and digital signage
• Laboratory and test equipment

Key specifications

• USB Standard: USB 3.2 Gen 1 (USB 3.0)
• Number of Downstream Ports: 4 x USB Type-A
• Upstream Port: USB Type-B
• Max Data Transfer Rate: 5 Gbps
• Housing Material: Metal (Aluminium)
• ESD Protection: 15kV (Contact & Air Discharge)
• Operating Temperature: -40°C to +85°C
• Power Input: 5V DC (Terminal Block or USB-B)
• Power Mode: Bus-powered or Self-powered
• Chipset: GL3523
• Mounting: Wall mount, DIN-rail (optional kit)
• LED Indicators: Power, Port Status
• Certifications: CE, FCC, RoHS

Recommendations

For maximum reliability in industrial environments, pair this hub with a regulated 5V power supply and use high-quality shielded USB cables. The optional DIN-rail mounting kit simplifies installation in control cabinets.
