Expansion anchor Fischer FBN II 12/50

Expansion anchor Fischer FBN II 12/50
Expansion anchor Fischer FBN II 12/50
Expansion anchor Fischer FBN II 12/50
Expansion anchor Fischer FBN II 12/50
Expansion anchor Fischer FBN II 12/50
Expansion anchor Fischer FBN II 12/50
Expansion anchor Fischer FBN II 12/50
Expansion anchor Fischer FBN II 12/50
R1,192

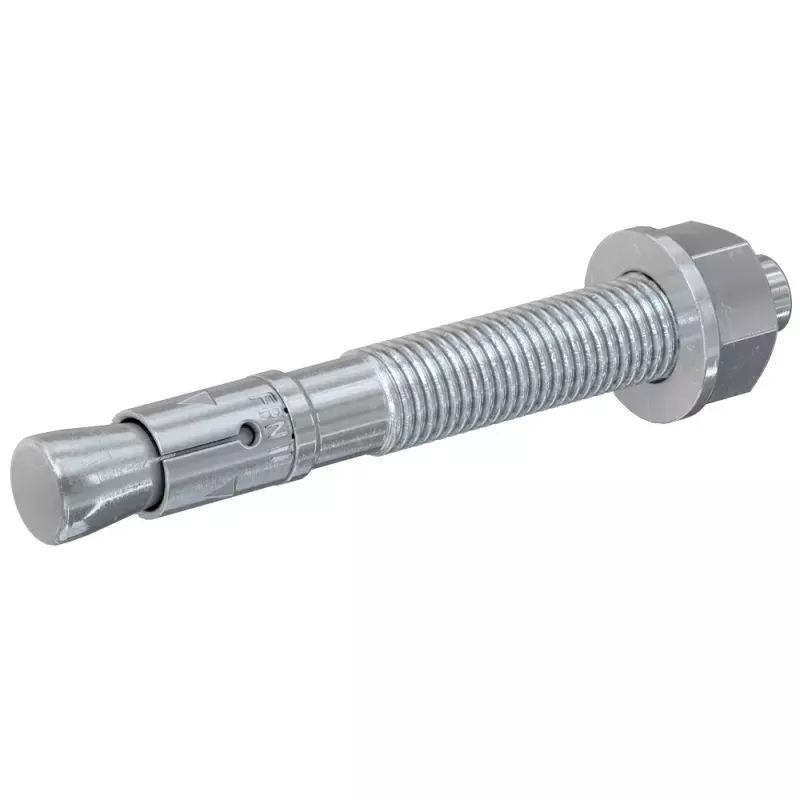

The Fischer FBN II 12/50 expansion anchor is a steel anchor designed for cost-effective, reliable fastening in non-cracked concrete. With a 12 mm diameter bolt and a total length of 146 mm, this anchor features a long thread and two recommended anchorage depths for flexible use. The zinc-plated stee... Read More
Stock 12 Code 2202632 Brand FISCHER Model 45264 Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, October 6
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The Fischer FBN II 12/50 expansion anchor is a steel anchor designed for cost-effective, reliable fastening in non-cracked concrete. With a 12 mm diameter bolt and a total length of 146 mm, this anchor features a long thread and two recommended anchorage depths for flexible use. The zinc-plated steel version is suited for internal applications such as railings, cable trays and consoles. Each pack contains 20 pieces and the anchor supports stand-off, pre-positioned and push-through installations.

Advantages

The FBN II 12/50 provides a simple, economical solution for concrete fixings thanks to its long thread and two anchorage depth options that increase installation flexibility. Zinc plating offers corrosion protection suitable for interior use. The anchor’s design allows for stand-off, pre-positioned and push-through installation methods, reducing the need for different anchor types on site.

Suitable for

  • Fixing railings in non-cracked concrete
  • Mounting cable trays and supports
  • Attaching consoles and brackets indoors
  • Applications requiring stand-off, pre-positioned or push-through installation

Key specifications

  • Brand: FISCHER
  • Model: FBN II 12/50
  • MPN: 45264
  • EAN: 4006209452646
  • Material: Zinc-plated steel
  • Anchor diameter (drill hole): 12 mm
  • Total length: 146 mm
  • Pack quantity: 20 pieces
  • Base material: non-cracked concrete

How to use

Drill a 12 mm hole to the required depth in non-cracked concrete, clean the hole of dust, insert the anchor and position the fixture. Tighten the bolt to expand the sleeve and engage the anchor in the concrete. The anchor can be installed as a stand-off fixing, pre-positioned in the hole before attaching the fixture, or used in push-through installation depending on the application and required anchorage depth.

Recommendations

Verify drill diameter and embedment depth for your specific load requirements and follow local codes. Use the anchor only in non-cracked concrete and avoid outdoor exposure unless additional corrosion protection is applied.

Key Highlights
  • Fixing railings in non-cracked concrete
  • Mounting cable trays and supports
  • Attaching consoles and brackets indoors
  • Applications requiring stand-off, pre-positioned or push-through installation
  • Brand: FISCHER
  • Model: FBN II 12/50
  • MPN: 45264
  • EAN: 4006209452646
  • Material: Zinc-plated steel
  • Anchor diameter (drill hole): 12 mm
  • Total length: 146 mm
  • Pack quantity: 20 pieces
  • Base material: non-cracked concrete
Specifications
Connecting thread type
M12x99
Diameter
12 mm
Drill hole diameter
12 mm
Length
146 mm
Material
Metal
Minimum drill hole depth
135 mm
Product colour
Silver
Product type
Expansion anchor
Quantity per pack
20 pc(s)
Screws material
Steel
Suitable for materials
Concrete
