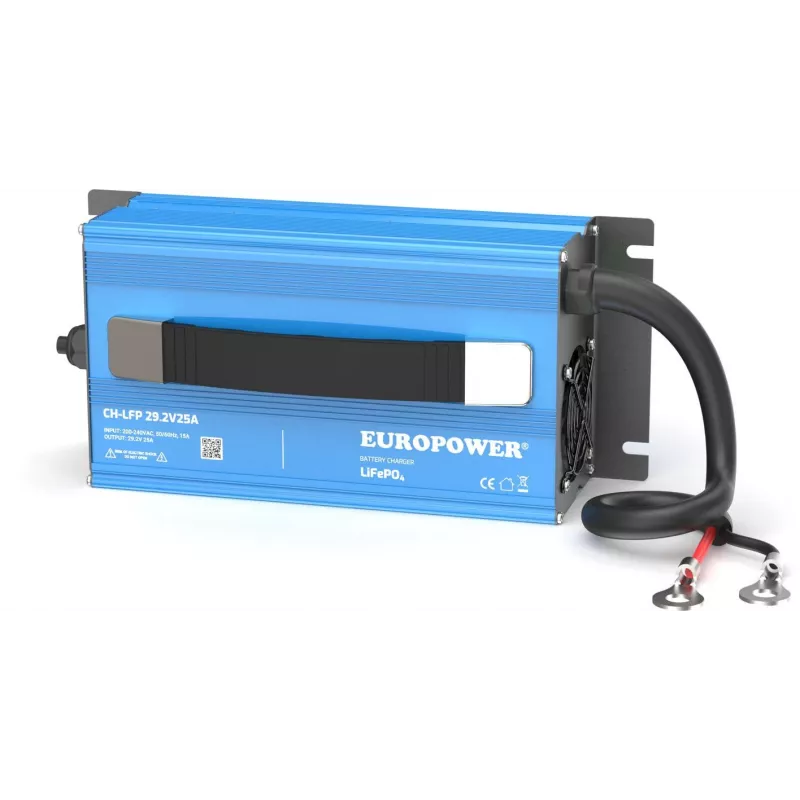

EUROPOWER CH-LFP/24/25 LiFePO4 Battery Charger 29.2V 25A M8 Ring Terminals

The EUROPOWER CH-LFP/24/25 is a professional LiFePO4 battery charger designed for 24V lithium iron phosphate batteries. With a charging voltage of 29.2V and a current of 25A, it efficiently charges batteries in the 50-250Ah range. The charger features M8 ring terminals for secure connection and is built with a durable aluminum alloy housing. It includes active fan cooling and comprehensive protection against over-voltage, over-current, short-circuit, reverse polarity, and over-temperature. LED indicators provide clear status updates for charging, full charge, and error conditions. Ideal for industrial, marine, and off-grid applications.

Advantages

High efficiency (>85%) and reliable CC/CV charging algorithm ensure optimal battery life. The robust aluminum housing and active cooling allow continuous operation in demanding environments. Safety features protect both the charger and battery from common electrical faults.

Suitable for

• 24V LiFePO4 battery banks in solar systems
• Electric vehicles and golf carts
• Marine and RV applications
• Industrial backup power systems

Key specifications

• Input: 100-240V AC, 50/60Hz
• Charging Voltage: 29.2V DC
• Charging Current: 25A DC
• Compatible Battery: LiFePO4, 24V nominal
• Recommended Capacity: 50-250Ah
• Charging Stages: 2-stage CC/CV
• Protection: Over-voltage, over-current, short-circuit, reverse polarity, over-temperature
• Cooling: Active fan
• Indicators: LED (Charging, Full, Error)
• Housing: Aluminum alloy
• Operating Temperature: -10°C to +40°C
• Efficiency: >85%
• Output Connector: M8 ring terminals

Recommendations

For best performance, use with a compatible 24V LiFePO4 battery. Ensure proper ventilation during operation. The charger is not suitable for lead-acid or other battery chemistries.
