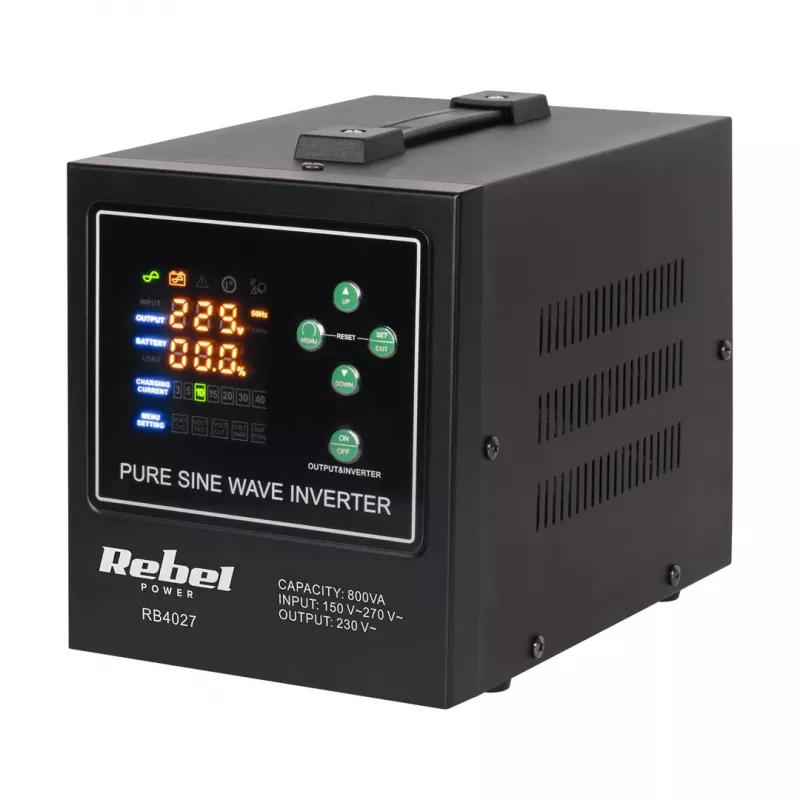

Rebel POWER-800-LFP4 Pure Sine Wave Inverter/Charger 12V 230V 800VA/500W

The Rebel POWER-800-LFP4 is a versatile pure sine wave inverter with integrated battery charger, designed for 12V DC to 230V AC conversion. With 800VA apparent power and 500W continuous output, it provides clean, stable power for sensitive electronics, RVs, boats, and off-grid systems. The built-in 10A charger supports LiFePO4 and lead-acid batteries, making it an ideal all-in-one power solution.

Advantages

Pure sine wave output ensures compatibility with sensitive devices like medical equipment, laptops, and audio systems. The line-interactive UPS function switches to battery in under 10ms, protecting connected equipment from power interruptions. Intelligent fan cooling minimizes noise and extends lifespan. Comprehensive protections (overload, short circuit, over-temperature, over/under voltage, reverse polarity) safeguard both the inverter and your devices.

Suitable for

• RVs, caravans, and boats requiring reliable AC power from a 12V battery bank
• Off-grid solar systems and backup power for home or office
• Mobile workshops and field operations needing clean sine wave power
• Charging LiFePO4 or lead-acid batteries with the integrated 10A charger

Key specifications

• Continuous Power: 500W (800VA)
• Peak Power: 800W (20ms)
• Input DC: 12V (10.5V-15V range)
• Output AC: 230V, 50Hz pure sine wave
• Battery Charger: 10A max, compatible with LiFePO4 and lead-acid (AGM, Gel, Flooded)
• Efficiency: >85%
• Transfer Time: <10ms (UPS mode)
• Protections: Overload, short circuit, over-temperature, over/under voltage, reverse polarity
• Display: LCD
• Cooling: Intelligent fan
• Operating Temperature: 0°C to 40°C

Recommendations

For optimal performance, use with a deep-cycle battery rated at least 50Ah. Ensure proper ventilation around the inverter. The integrated charger automatically selects charging profile based on battery type – always confirm compatibility with your battery manufacturer's specifications.
