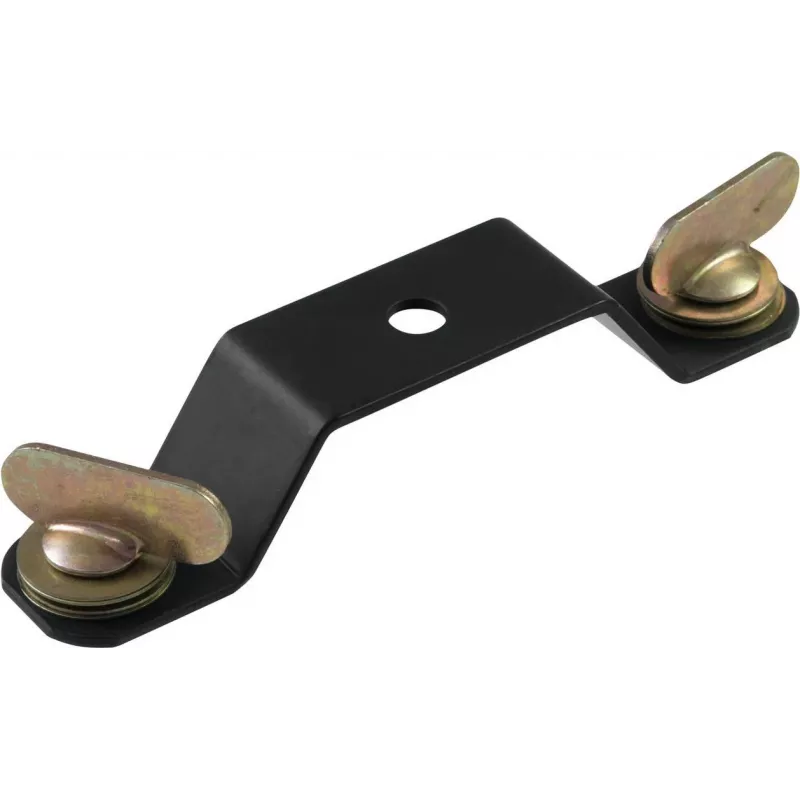

EUROLITE Omega Bracket 44 51786562

Mounting lighting fixtures to trusses can be a challenge without a reliable bracket. The EUROLITE Omega Bracket 44 solves this by providing a sturdy steel mounting solution for fixtures with two 50 mm spaced holes. Designed for truss tubes with a diameter of 44 to 51 mm, this powder-coated black bracket bolts directly to your fixture, allowing secure clamp-on attachment to trusses (clamp sold separately).

Who is it for

Stage technicians, event production crews, and studio installers who need a dependable way to hang lighting fixtures from truss systems.

Main features

• Steel construction with powder-coated finish for durability
• Fits truss tubes from 44 to 51 mm diameter
• Two fixture mounting holes spaced 50 mm apart, 11 mm diameter
• Designed for M10 screws (not included)
• Bolt-on fixture mounting, clamp-on truss mounting (clamp not included)

Specifications

• Material: Steel
• Finish: Powder-coated
• Color: Black
• Compatible truss tube diameter: 44 - 51 mm
• Fixture mounting holes: 2
• Hole spacing: 50 mm
• Hole diameter: 11 mm
• Recommended screw size: M10

Tips

Always verify your fixture's mounting hole pattern matches the 50 mm spacing before purchase. Use appropriate M10 screws and a compatible truss clamp for secure installation.
