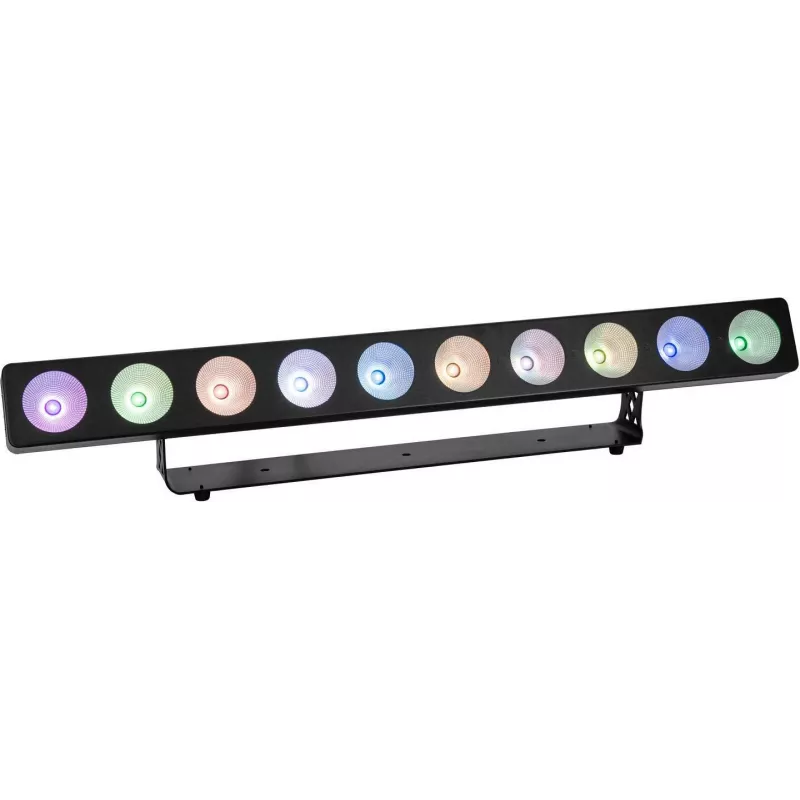

EUROLITE LED Pixel Matrix Bar 10 RGB/WW Stage Light 10x12W Pixel-DMX Art-Net

The EUROLITE LED Pixel Matrix Bar 10 RGB/WW breaks away from conventional wash lights by offering ten independently addressable 12-watt 4-in-1 LEDs, each blending red, green, blue, and warm white for precise pixel-mapped effects. This linear bar is built for designers who need granular control over colour, movement, and intensity, whether running a complex Art-Net timeline or a simple stand-alone chase. Its 15° beam angle keeps output tight and punchy, while the metal housing and dual omega brackets ensure reliable rigging in clubs, theatres, and touring rigs.

Highlights

• 10x 12 W RGB/WW 4-in-1 LEDs with 2800 K warm white for rich pastels and full-spectrum colour mixing
• True pixel control: each LED can be addressed individually over DMX, Art-Net, sACN, or Kling-Net
• Multiple DMX channel modes from 4 to 50 channels to fit any console or controller
• Dual 3-pin and 5-pin XLR plus RJ45 network in/out for flexible signal daisy-chaining
• PowerCON in/out for safe, lockable power linking up to 120 W total draw
• LCD display with four buttons for easy menu navigation and stand-alone programming
• Electronic dimmer 0–100% and variable strobe for dynamic effects
• IP20 rated for indoor use, with metal housing and quick-lock omega brackets

In daily use

Mount the bar vertically or horizontally using the included omega brackets, then connect power and data. For pixel-mapped shows, feed Art-Net or sACN over Ethernet and assign each of the ten LEDs its own universe or channel block. The bar responds instantly, letting you create sweeping colour runs, twinkles, or segmented chases. In stand-alone mode, use the LCD to select built-in programs, adjust speed, or set sound-to-light sensitivity. The warm white channel adds a natural glow that pure RGB fixtures lack, making it equally useful for front lighting or accent washes.

Full specifications

• Light source: 10x 12 W 4-in-1 RGB/WW LEDs (red, green, blue, warm white 2800 K)
• Total LED power: 120 W
• Beam angle: 15°
• Pixel control: 10 individually controllable pixels
• Control protocols: DMX512, Art-Net, sACN, Kling-Net
• DMX channel modes: 4, 6, 8, 10, 40, 42, 44, 46, 50 channels
• DMX connectors: 2x XLR 3-pin (in/out), 2x XLR 5-pin (in/out)
• Network connectors: 2x RJ45 (in/out)
• Power connectors: 2x PowerCON (in/out)
• Power supply: 100–240 V AC, 50/60 Hz
• Max power consumption: 120 W
• Display: LCD with 4 control buttons
• Housing material: metal
• IP rating: IP20 (indoor use)
• Mounting: 2x omega brackets with quick-lock fasteners
• Dimmer: 0–100% electronic
• Strobe effect: variable speed
• Operating modes: DMX, Art-Net, sACN, Kling-Net, stand-alone, master/slave, sound-to-light

Final note

For pixel-precise colour control and robust touring build, the EUROLITE LED Pixel Matrix Bar 10 RGB/WW is a versatile tool that bridges the gap between simple wash lights and full video-mapped fixtures.
