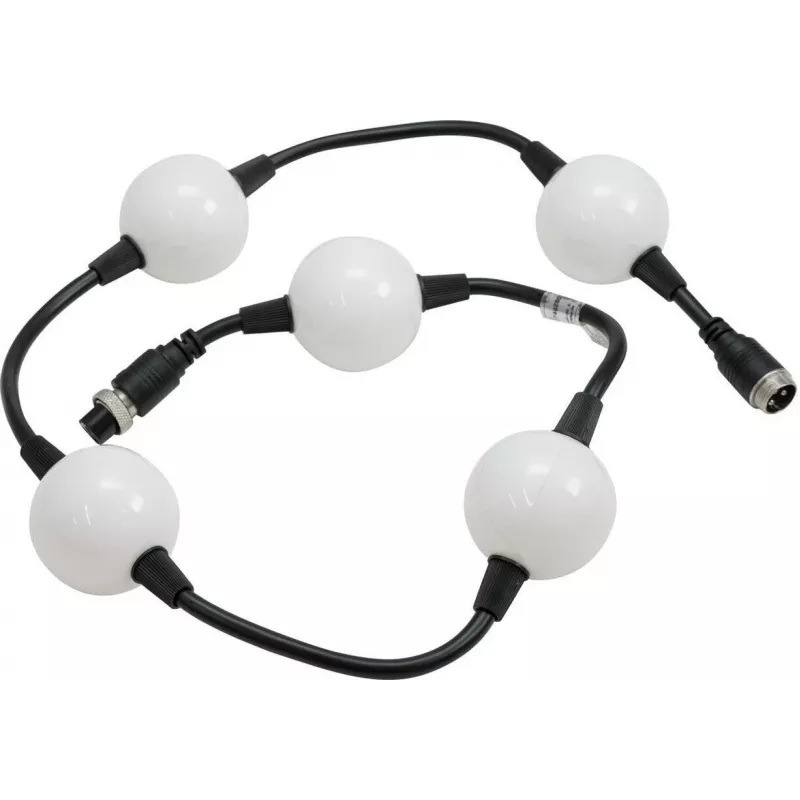

EUROLITE LED Pixel Ball 360° 1m MK2 – Flexible RGB Pixel Strand, 5 Segments, 24V DC

Creating dynamic, eye-catching lighting effects for events, stages, or architectural accents often means wrestling with bulky fixtures and complex wiring. The EUROLITE LED Pixel Ball 360° 1m MK2 solves this with a flexible, plug-and-play RGB pixel strand that bends around curves and mounts in seconds. Five evenly spaced 30 mm diffuser balls each pack 12 SMD LEDs, delivering smooth 360° colour mixing and pixel-mapped animations when paired with a DMX controller.

Who is it for

Lighting designers, DJs, event decorators, and installers who need a versatile, low-voltage pixel solution for creative installations. Whether you're outlining a stage set, wrapping a truss, or adding accent lighting to retail displays, this strand offers precise control and uniform illumination without the weight or heat of traditional fixtures.

Main features

• Flexible 1-metre strand with 5 individually addressable pixel balls
• Each ball contains 12 RGB SMD LEDs for rich colour blending
• 360° beam angle for all-around visibility
• Pixel pitch of 200 mm for balanced spacing
• Operates on 24 V DC, safe for low-voltage installations
• DMX512 control via external controller (15 channels, 3 per pixel)
• Durable plastic housing with IP20 rating for indoor use
• Convenient eyelet mounting on each ball

Specifications

• Light source: 60 x RGB SMD LEDs (12 per ball)
• Number of pixels: 5
• Pixel pitch: 200 mm
• Beam angle: 360°
• Control protocol: DMX512 (external controller required)
• DMX channels: 15 (3 per pixel)
• Input voltage: 24 V DC
• Power consumption: 10 W
• Length: 1 m
• Ball diameter: 30 mm
• Protection rating: IP20
• Housing material: Plastic
• Connection: 4-pin XLR (proprietary Eurolite system)
• Colour mixing: RGB
• Operating temperature: 0 to 40 °C
• Mounting: Eyelet

Tips

For best results, pair this strand with a Eurolite DMX controller and use a 24 V DC power supply with sufficient current (at least 0.5 A). Mount the balls using the integrated eyelets and secure the cable with zip ties to maintain even spacing. Avoid bending the strand sharply near the connectors to prolong cable life. Since it's IP20 rated, keep it indoors or in protected enclosures.
