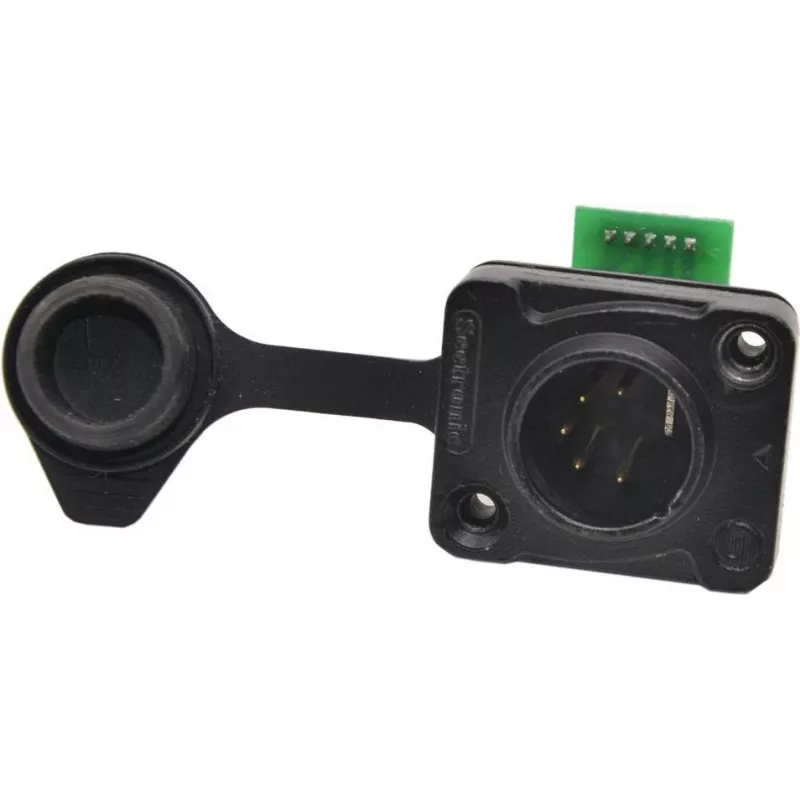

EUROLITE IP XLR Set 5-Pin Male/Female Connectors, IP65, Die-Cast Zinc, Solder Contacts, Black 30208439

For touring sound engineers and lighting technicians who demand reliable signal integrity in challenging environments, this EUROLITE IP XLR set delivers rugged 5-pin connectivity with IP65-rated protection. The pair includes one male plug and one female socket, both engineered with die-cast zinc housings and silver-plated contacts to withstand moisture, dust, and heavy use. Whether you're wiring DMX-controlled fixtures on an outdoor stage or routing audio through a temporary broadcast setup, these connectors ensure a secure latch lock and clean solder termination for cables with diameters from 6 to 10 mm.

Key specifications

• Connector type: XLR, 5-pin
• Set contents: 1x male plug, 1x female socket
• IP rating: IP65 (dust-tight and protected against water jets)
• Housing material: Die-cast zinc, black finish
• Contact plating: Silver
• Termination: Solder contacts
• Cable diameter compatibility: 6–10 mm
• Locking mechanism: Latch lock
• Application: DMX, audio, lighting control
• Mounting type: Cable mount

Why choose it

The IP65 rating means these connectors can handle rain, splashes, and dusty backstage conditions without signal degradation. The die-cast zinc body provides excellent shielding and mechanical strength, while silver-plated contacts offer low contact resistance and corrosion resistance. The latch lock prevents accidental disconnection, making them ideal for live events where reliability is non-negotiable.

Ideal use cases

• Outdoor concerts and festivals with DMX lighting rigs
• Broadcast and AV installations in humid or dusty environments
• Permanent installations in theaters, houses of worship, or theme parks
• Rental and staging companies needing robust, field-serviceable connectors

Good to know

These connectors are designed for cable mounting and require soldering skills for assembly. The 6–10 mm cable entry accommodates a wide range of standard DMX and audio cables. For best results, use a high-quality soldering iron and follow standard XLR pinout conventions. The set is a direct replacement for worn or damaged connectors on existing cables, extending the life of your equipment.
