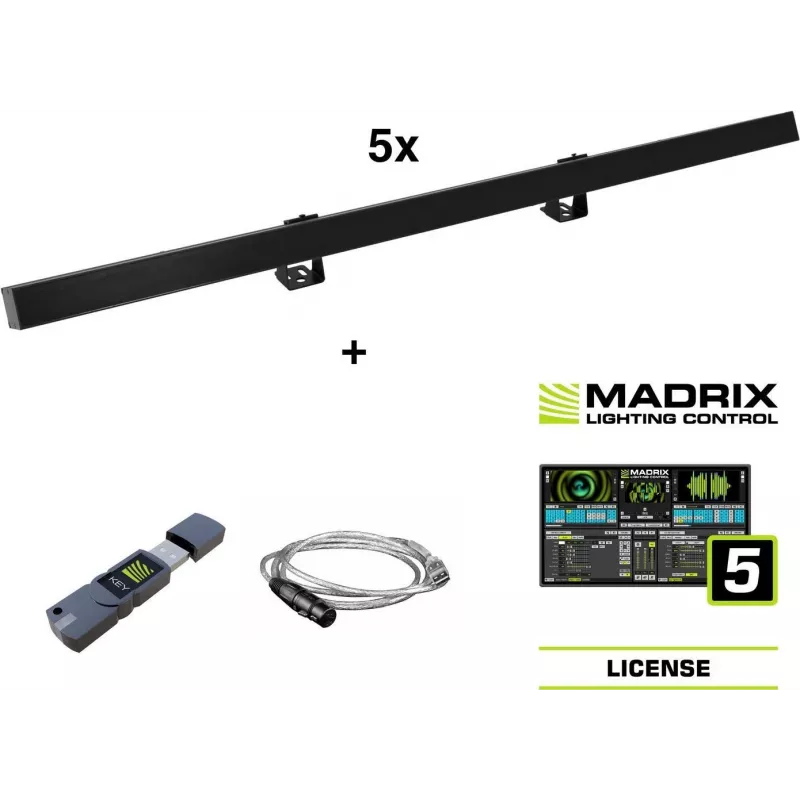

EUROLITE 5x LED PR-100/32 Pixel DMX Rail Set + Madrix Software

The EUROLITE 5x LED PR-100/32 Pixel DMX Rail Set includes five compact LED rail fixtures, each featuring 32 individually addressable pixels. Designed for stage and event lighting, the set connects via standard DMX control and integrates with Madrix software for pixel-mapped effects, color control and dynamic patterns. The rail form factor allows linear installations on trusses, stages or scenic elements and supports synchronized control for coherent visual compositions across multiple fixtures.

Advantages

This LED rail set provides fine-grained pixel control with 32 pixels per fixture, enabling complex animations and gradients. Compatibility with DMX ensures integration into common lighting consoles and networks, while Madrix software support offers advanced sequencing, pixel mapping and real-time visual programming. The fixtures are compact and lightweight for easy mounting, and their rail shape simplifies alignment for linear effects and chase sequences.

Suitable for

Key specifications

How to use

Mount the rails on a suitable support such as truss, bar or a stable surface, ensuring secure fastening and proper orientation for the intended visual effect. Connect the fixtures in a daisy-chain using the provided DMX data cables or compatible connectors, and assign DMX addresses according to the desired pixel mapping scheme. Use a DMX controller or lighting console to send control signals, or connect the fixtures to a computer running Madrix software to design, sequence and play back pixel-mapped content. Verify power distribution and grounding, then run test patterns to confirm addressing and color calibration before live use.

Recommendations

For reliable operation, use suitable DMX cabling and maintain correct termination at the end of the DMX chain. When using Madrix, prepare pixel maps matching the physical layout of the rails to ensure accurate visual results. Allow sufficient ventilation and avoid mounting near high-temperature sources. For touring or frequent reconfiguration, label cable runs and DMX addresses to speed up setup and reduce configuration errors.
