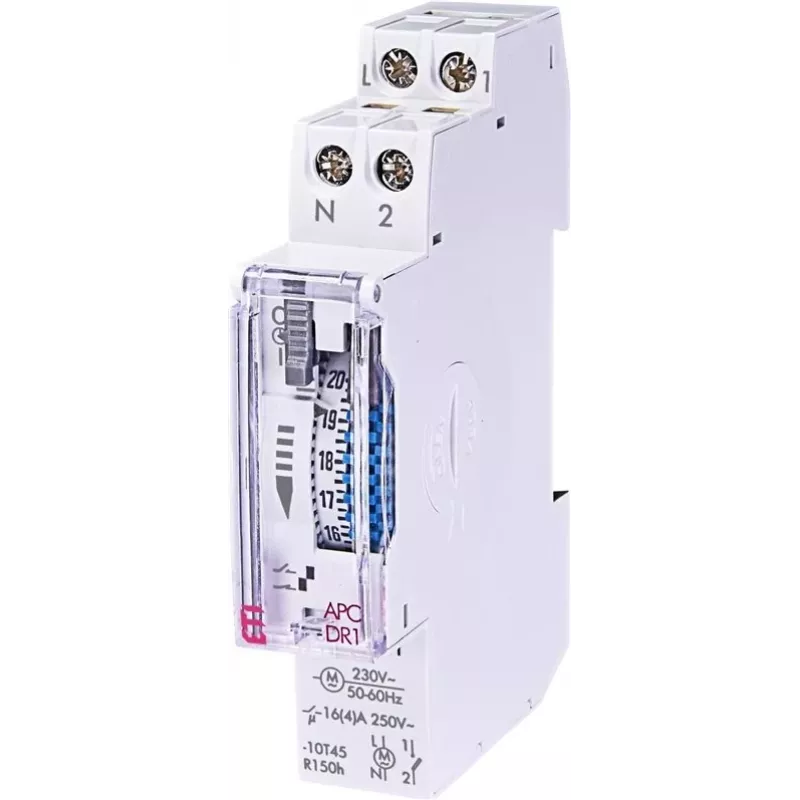

ETI TIME SWITCH MODULE MECHANICAL APC-DR1 1P 16A

The ETI TIME SWITCH MODULE MECHANICAL APC-DR1 is a reliable and precise mechanical time switch designed for DIN rail mounting. Ideal for controlling lighting, heating, and other electrical loads in residential and commercial applications, this 1-pole switch offers a maximum switching current of 16A resistive and 2A inductive. With a daily program and 96 switching segments at 15-minute intervals, it provides flexible scheduling. The manual override (ON/AUTO/OFF) allows for temporary control without disrupting the programmed schedule.

Advantages

This mechanical time switch requires no power reserve, ensuring simple and maintenance-free operation. Its compact 1 DIN module width (18mm) saves space in electrical cabinets. The IP20 protection rating makes it suitable for indoor use, and the wide operating temperature range (-10°C to +50°C) ensures reliable performance in various environments.

Suitable for

• Lighting control in offices, schools, and public buildings
• Heating and ventilation scheduling
• Industrial automation for timed processes
• Energy management in residential and commercial installations

Key specifications

• Type: Mechanical Time Switch
• Mounting: DIN Rail
• Number of Poles: 1-Pole (1P)
• Max Switching Current (Resistive): 16 A
• Max Switching Current (Inductive): 2 A
• Operating Voltage: 230V AC
• Frequency: 50/60 Hz
• Program: Daily Program
• Minimum Switching Interval: 15 minutes
• Number of Switching Segments: 96
• Manual Override: Yes (ON/AUTO/OFF)
• Power Reserve: No
• Module Width: 1 DIN Module (18mm)
• Contact Configuration: 1 Normally Open (NO)
• Degree of Protection: IP20
• Operating Temperature: -10°C to +50°C
• Power Consumption: < 0.5 W

Recommendations

For optimal performance, ensure the switch is installed in a clean, dry environment within the specified temperature range. Use appropriate circuit protection devices as per local regulations.
