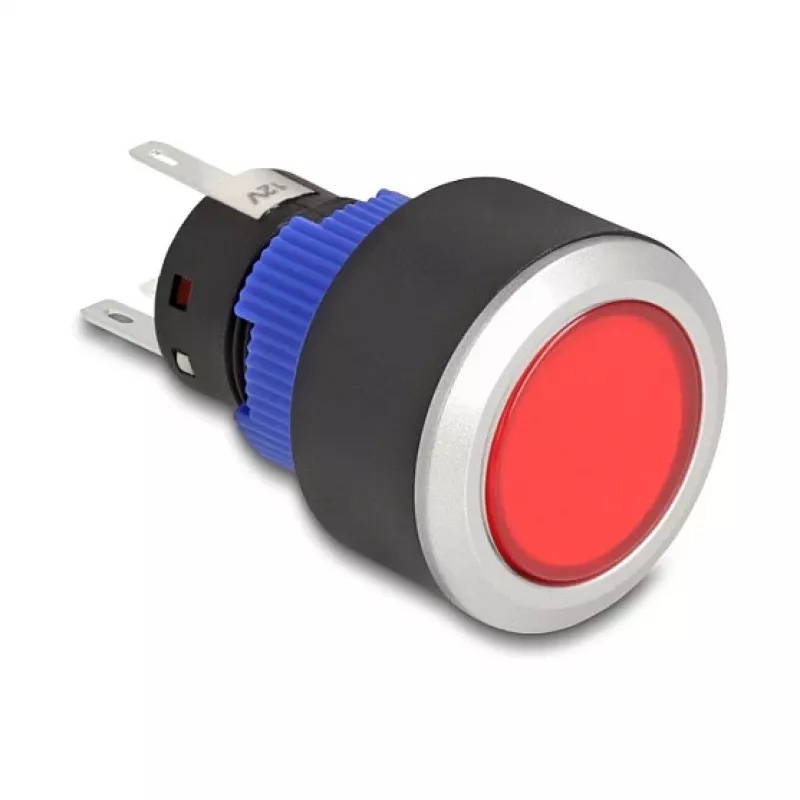

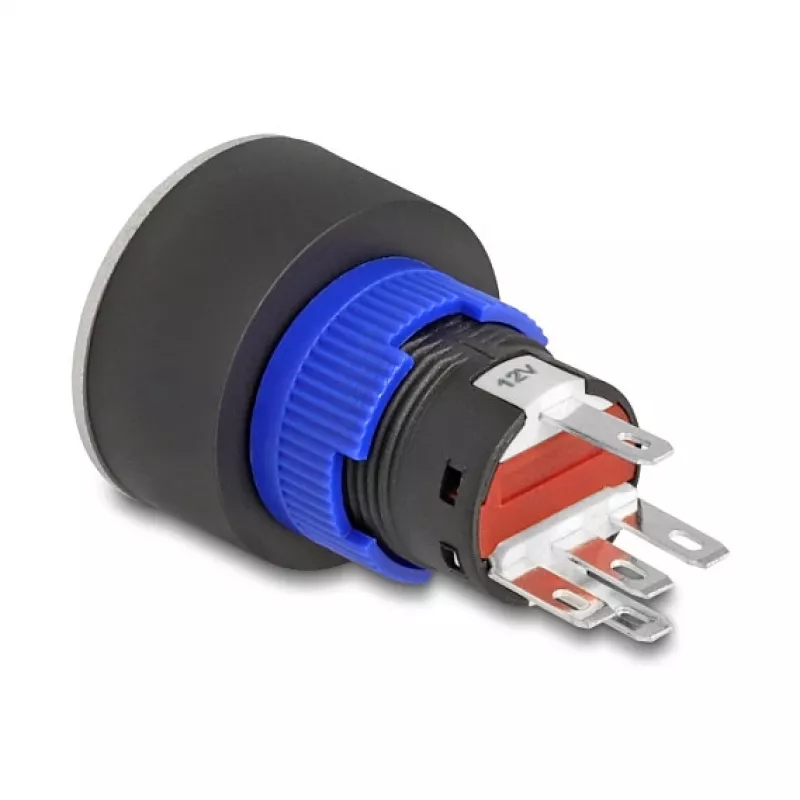

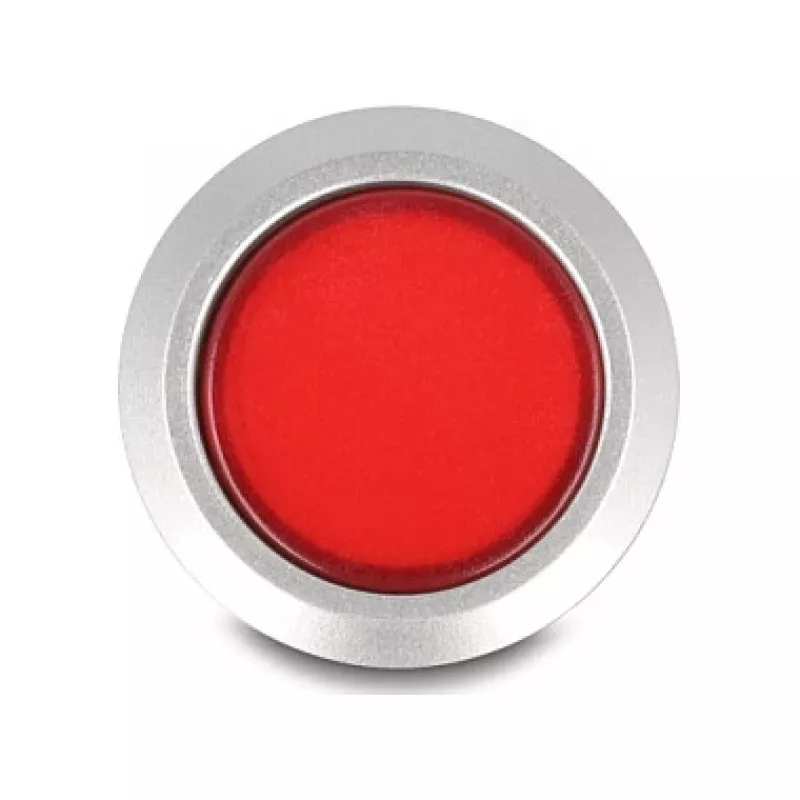

Delock 22 mm Panel Mount Push Button, Flat, Red LED, Solder Terminals, 1 NO, 230 V AC/DC

The Delock 22047 is a high-quality 22 mm panel mount push button switch designed for industrial control applications. Featuring a flat red actuator with integrated red LED illumination, this momentary switch offers reliable performance and clear visual status indication. With 5 solder terminals and a 1 NO (Normally Open) contact configuration, it is suitable for a wide range of switching tasks. The front panel protection class IP65 ensures resistance to dust and water jets, making it ideal for demanding environments.

Advantages

Robust plastic housing with IP65 front protection ensures durability in harsh conditions. The integrated red LED operates directly at 230 V AC/DC, eliminating the need for an external power supply. Easy solder terminal connection simplifies installation. High mechanical and electrical life cycles guarantee long-term reliability.

Suitable for

• Industrial control panels
• Machine control stations
• Building automation systems
• Signal and indicator applications

Key specifications

• Mounting diameter: 22 mm
• Actuator type: Flat, momentary
• Actuator colour: Red
• Illumination: Yes, red LED
• LED operating voltage: 230 V AC/DC
• Contact configuration: 1 NO (Normally Open)
• Number of terminals: 5
• Connection type: Solder terminals
• Max. switching voltage: 250 V AC
• Max. switching current: 3 A
• Protection class: IP65 (front)
• Housing material: Plastic
• Operating temperature: -25 to +55 °C
• Mechanical life: >1,000,000 cycles
• Electrical life: >50,000 cycles
• Contact material: Silver alloy
• Mounting type: Panel mount

Recommendations

For optimal performance, ensure the panel cutout is precisely 22 mm and the switch is securely fastened. Use appropriate solder tools and follow standard safety precautions when working with mains voltage.
