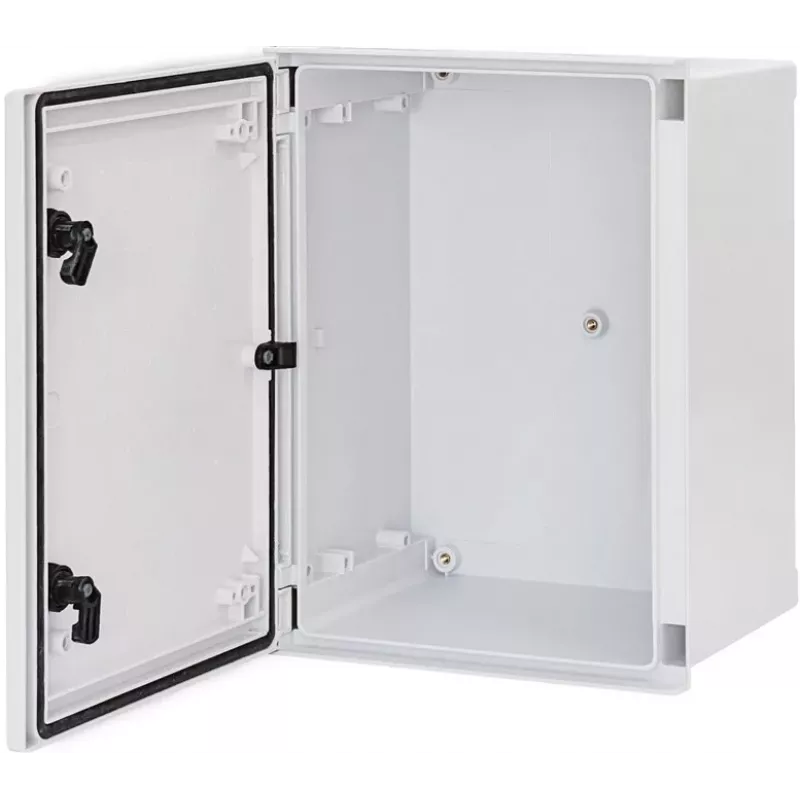

ETI EPC 40-30-20 IP66 Enclosure, Grey, ABS Plastic, 400x300x200mm

The ETI EPC 40-30-20 IP66 Enclosure is a robust industrial enclosure designed for demanding environments. Made from high-quality ABS plastic with a grey (RAL 7035) finish, it provides excellent protection against dust and water jets, making it ideal for electrical, electronic, automation, and telecommunication applications.

Advantages

This enclosure offers IP66 ingress protection and IK08 impact resistance, ensuring durability in harsh conditions. Its halogen-free, UL94-V0 rated material enhances safety, while the polyurethane gasket maintains a reliable seal. The opaque lid with plastic screws provides secure fastening, and internal bosses allow for easy mounting of plates or DIN rails.

Suitable for

• Electrical and electronic installations
• Automation and control systems
• Telecommunication equipment
• Industrial environments requiring dust-tight and water-jet proof protection

Key specifications

• Brand: ETI
• Model: EPC 40-30-20
• EAN: 3838895831839
• Material: ABS Plastic
• Colour: Grey (RAL 7035)
• External Dimensions (L x W x H): 400 x 300 x 200 mm
• Ingress Protection: IP66
• Impact Resistance: IK08
• Lid Type: Opaque (Solid)
• Lid Fastening: Plastic Screws
• Operating Temperature: -25°C to +60°C
• Flammability Rating: UL94-V0
• Mounting: Wall Mountable
• Gasket Material: Polyurethane (PU)
• Halogen Free: Yes
• Standards: EN 62208, IEC 60529, IEC 62262

Recommendations

For optimal installation, use appropriate mounting brackets and ensure the gasket is properly seated. This enclosure is suitable for both indoor and outdoor use where protection against water jets and dust is required.
