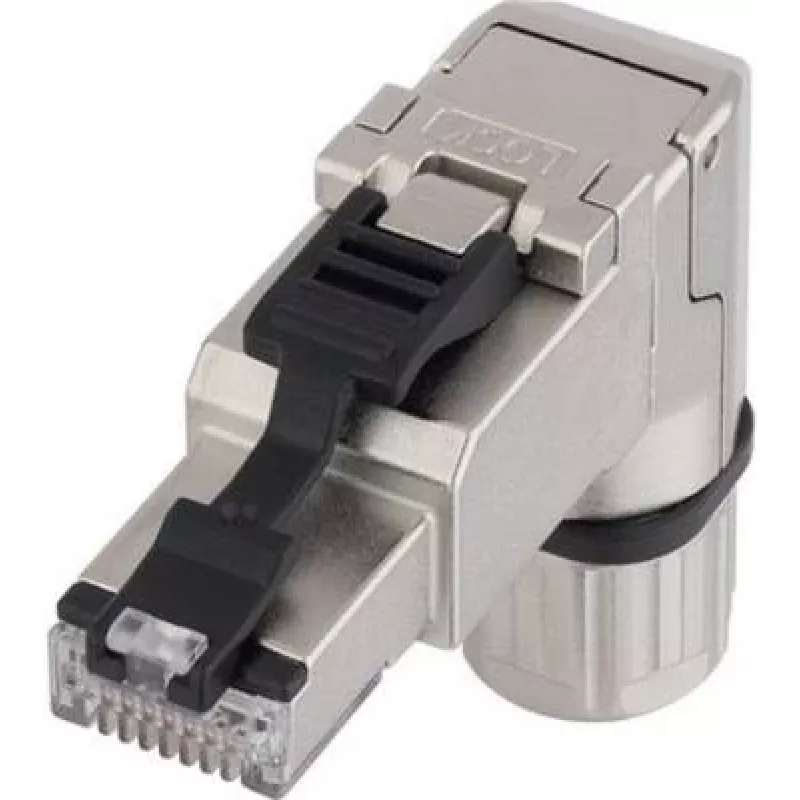

Ethernet angled connector Lapp ED-IE-90-6A-A-20-FD-FC (model 21700639)

Angled Ethernet connector Lapp ED-IE-90-6A-A-20-FD-FC (model 21700639) is designed for industrial Ethernet cabling. This compact right-angle RJ45 connector provides reliable data transmission and is suitable for installations with limited space, enabling neat cable routing and secure network connections in control cabinets, machinery and network junctions.

Advantages

The Lapp ED-IE-90-6A-A-20-FD-FC offers a space-saving right-angle design that simplifies cable management in confined installations. It ensures stable RJ45 connectivity for industrial environments and is compatible with standard Ethernet cabling. The connector is compact, robust and intended to facilitate installation in control cabinets and machine housings.

Suitable for

Key specifications

How to use

Mount the angled RJ45 connector in the available panel or cable outlet so that the right-angle orientation aligns with the desired cable routing. Terminate the Ethernet cable according to the applicable wiring standard and insert it into the connector until it locks. Ensure the connector seating and any strain relief or housing are secured following the installation environment requirements.

Recommendations

Use the Lapp ED-IE-90-6A-A-20-FD-FC in applications where space is limited and a right-angle Ethernet connection is needed; verify compatibility with the installed cable type and follow industrial grounding and installation practices.
