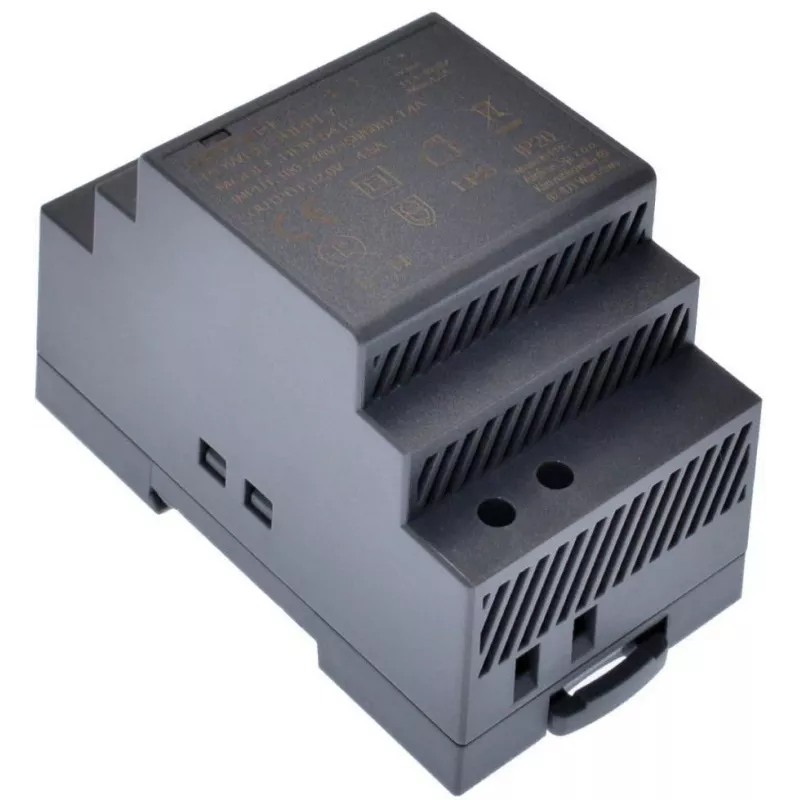

ESPE HDN-3015 DIN Rail Power Supply 15V 30W 2A

The ESPE HDN-3015 is a high-performance DIN rail power supply delivering a stable 15V DC output at 2A (30W). Designed for industrial automation, control cabinets, and building management systems, it offers reliable power conversion with wide input voltage range and comprehensive protection features.

Advantages

Compact plastic housing for easy DIN rail mounting (TS-35). High efficiency >85% reduces energy loss and heat generation. Built-in protections against short circuit, overload, overvoltage, and overtemperature ensure safe operation. Wide input range (85-264V AC / 120-370V DC) makes it suitable for global use.

Suitable for

• Industrial control panels
• PLC and automation systems
• Building automation (HVAC, lighting)
• Security and access control systems
• Telecommunication equipment

Key specifications

• Output Voltage: 15V DC (adjustable 13.5-16.5V)
• Output Current: 2A
• Output Power: 30W
• Input Voltage: 85-264V AC / 120-370V DC
• Input Frequency: 47-63 Hz
• Efficiency: >85%
• Ripple & Noise: <150mVp-p
• Hold-up Time: >20ms (at full load, 230VAC)
• Protection: Short Circuit, Overload (105-150%), Overvoltage, Overtemperature
• Isolation Voltage: 3000V AC (Input to Output)
• Operating Temperature: -20°C to +70°C
• Cooling: Free Air Convection
• MTBF: >300,000 hours
• Safety Standards: EN60950-1, UL508
• Housing Material: Plastic
• Mounting: DIN Rail TS-35

Recommendations

For optimal performance, ensure adequate ventilation and do not exceed the rated load. Suitable for use in dry, indoor environments. Always follow local electrical codes during installation.
