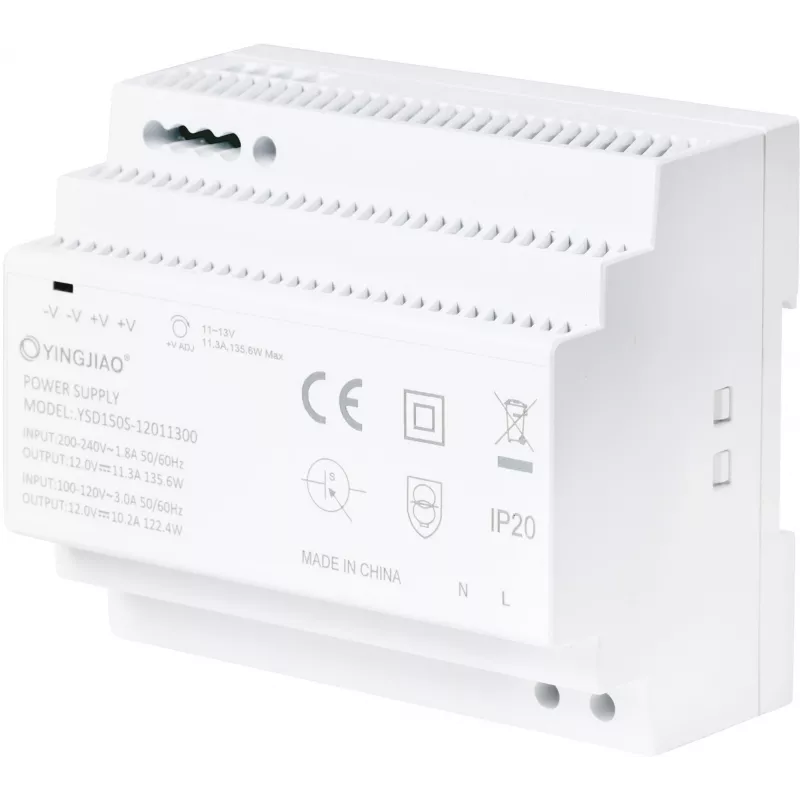

DIN Rail Power Supply YINGJIAO YSD150S-12011300 12V/136W/11.3A

The YINGJIAO YSD150S-12011300 is a high-performance DIN rail power supply delivering 12V DC output with 136W power and 11.3A current. Designed for industrial automation and control systems, it ensures reliable operation in demanding environments.

Advantages

This power supply offers high efficiency (89% typical), compact metal housing, and comprehensive protection features including short circuit, overload, over voltage, and over temperature. Its adjustable output voltage (10.8-13.2V) provides flexibility for various applications.

Suitable for

• Industrial automation and control panels
• PLC and sensor power supply
• Building automation systems
• Telecommunication equipment
• LED lighting and signage

Key specifications

• Output Voltage: 12V DC (adjustable 10.8-13.2V)
• Output Current: 11.3A
• Output Power: 135.6W
• Input Voltage: 85-264VAC / 120-370VDC
• Efficiency: 89% (typical)
• Mounting: DIN Rail (TS-35/7.5 or TS-35/15)
• Protection: Short Circuit, Overload, Over Voltage, Over Temperature
• Operating Temperature: -20°C to +70°C
• Cooling: Free Air Convection
• Ripple & Noise: <120mVp-p
• Isolation Voltage: 3000VAC
• Certifications: CE, UL, CB, RoHS
• Hold-up Time: >20ms (at full load, 230VAC)
• MTBF: >300,000 hours
• Housing Material: Metal Enclosure
• Inrush Current: <40A (at 230VAC, cold start)
• Line Regulation: ±0.5%
• Load Regulation: ±1.0%

Recommendations

For optimal performance, ensure proper ventilation and mounting on a standard DIN rail. This power supply is ideal for systems requiring stable 12V DC power with high reliability and protection features.
