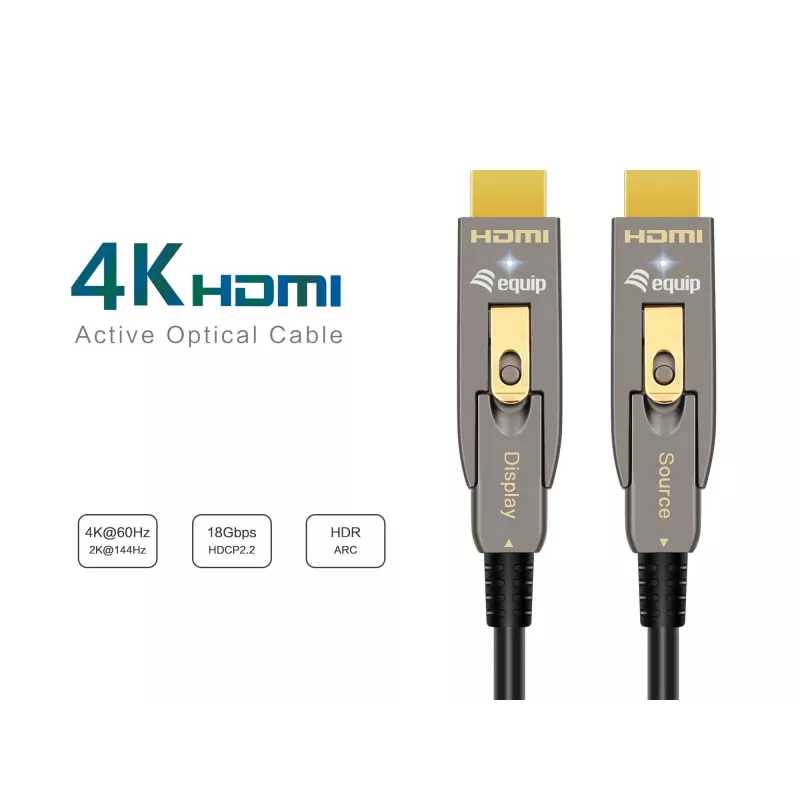

EQUIP HDMI 2.0 Active Optical Cable 10m, Detachable Type-A/Type-D, 4K/60Hz, 18 Gbit/s, Gold-plated contacts

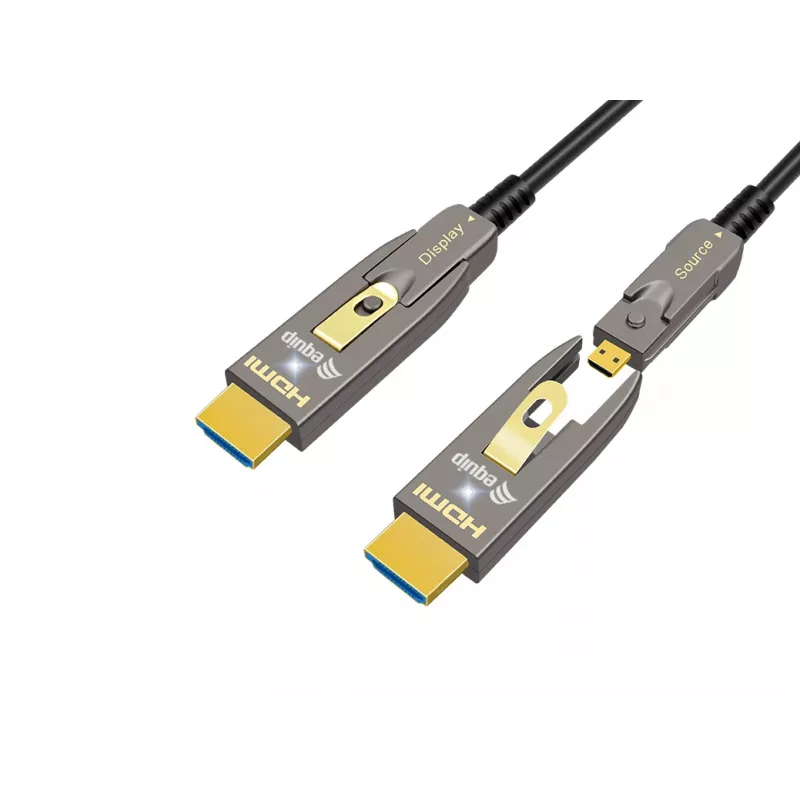

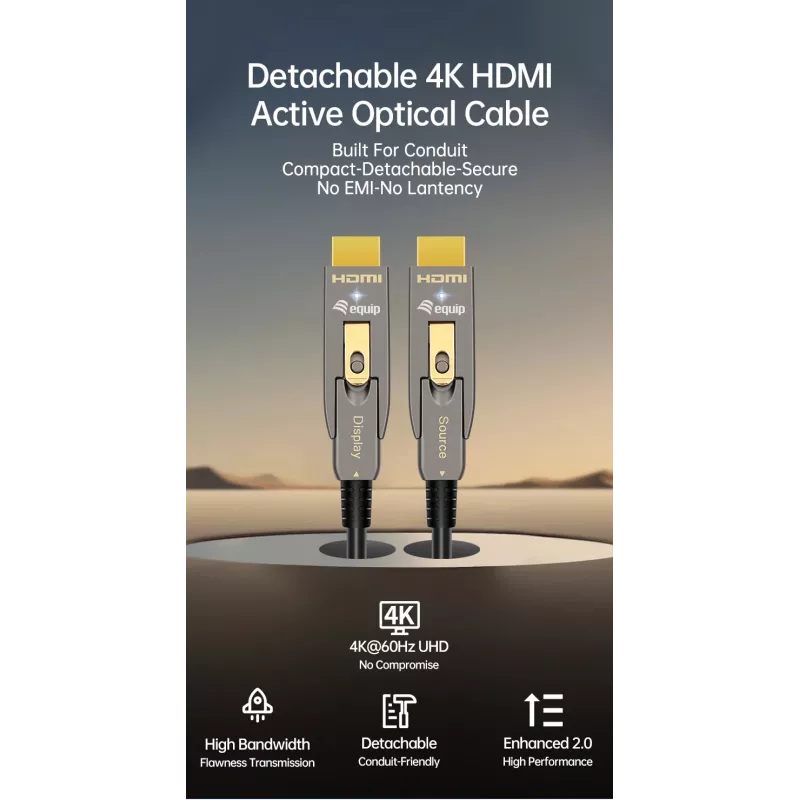

The Equip HDMI 2.0 Detachable Type D + A Active Optical Cable provides high-definition connectivity with a detachable Micro HDMI (Type D) and Standard HDMI (Type A) connector. Using active optical technology, the cable enables stable signal transmission over long distances while supporting HDMI 2.0 features including 4K at 60Hz and HDR for clear video and accurate color reproduction. Its lightweight fiber construction reduces electromagnetic interference and simplifies installation in tight spaces or large venues.

Advantages

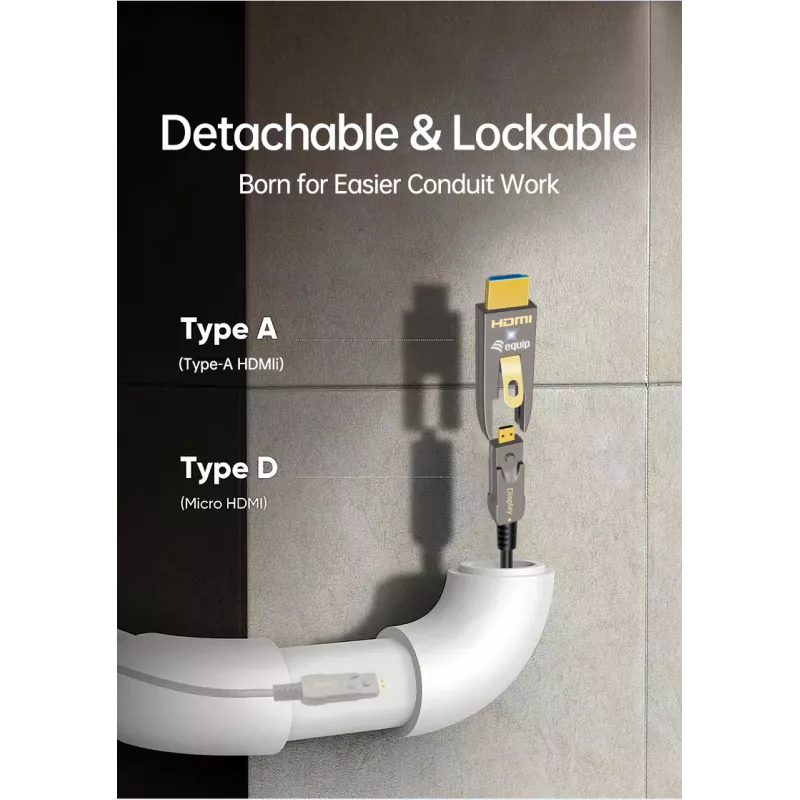

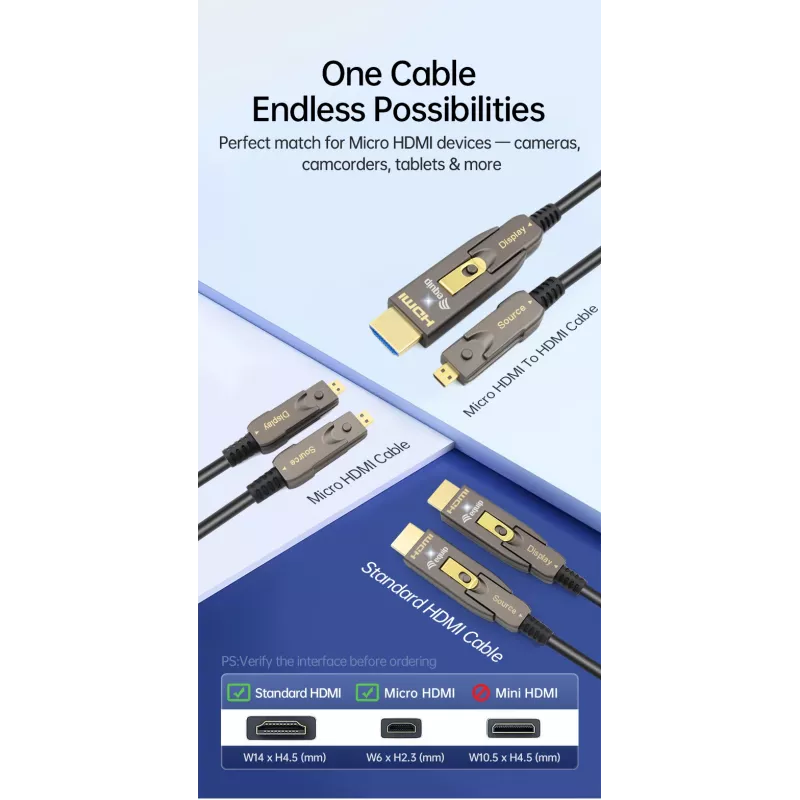

The detachable connector design offers flexibility and broad device compatibility with cameras, laptops, projectors, monitors and TVs, reducing the need for multiple cables. Active optical construction maintains signal integrity up to long ranges and resists EMI, while gold-plated connectors and zinc alloy housing improve contact reliability and durability.

Key specifications

• Connector: HDMI Type-A (Standard) / HDMI Type-D (Micro) straight male
• HDMI version: 2.0
• Maximum resolution: up to 4K @ 60Hz with HDR
• Bandwidth: up to 18 Gbit/s
• Supports: HDR10, HLG, HDCP 2.2, HDCP 1.4, 3D, EDID, HEC, CEC, ARC
• HDMI Ethernet Channel (HEC) and High Speed with Ethernet supported
• Transmission: active optical cable (single direction — source to display)
• Maximum range of active optical leads: up to 100 m (product length example: 10 m)

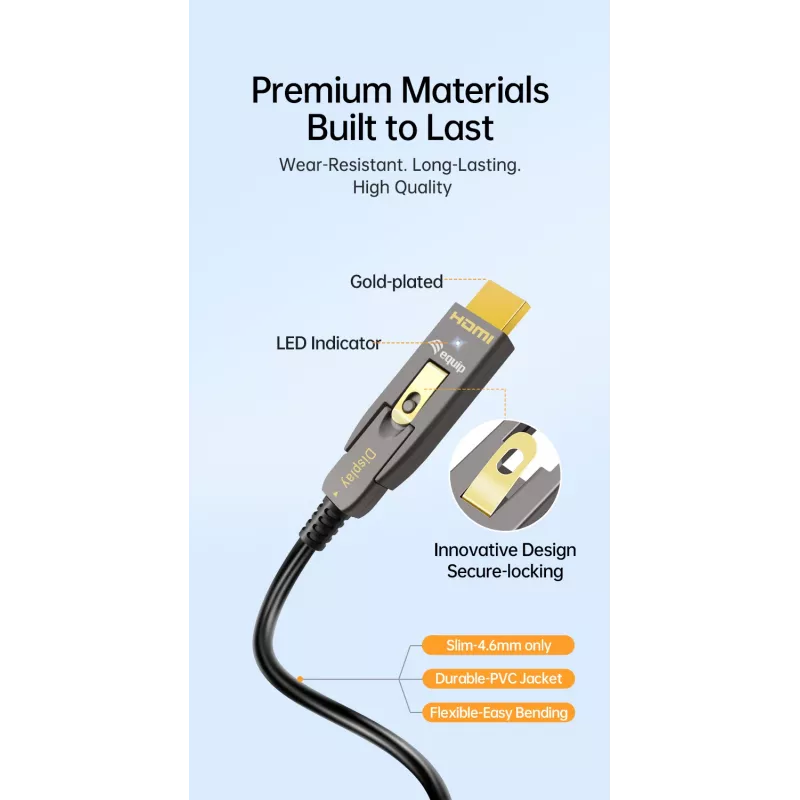

• Housing: zinc alloy; connectors: gold plated
• Color: black

How to use

Ensure the cable is oriented correctly, as this active optical cable transmits only from source to display; confirm the arrow or direction marking before connection. Attach the appropriate connector (Type D or Type A) to the source device and the matching connector to the display. Use secure, straight insertions to avoid stress on the connectors. For best results, verify that both source and display support HDMI 2.0 features such as 4K@60Hz and HDR and configure device settings accordingly.

Recommendations

Check the cable direction marking before installation and avoid bending the fiber optic section sharply. For long runs, test the connection at full resolution and HDR settings. Use the detachable connector option to match device ports and store the unused connector safely when not required.
