Equip Cat.6A U/UTP Slim Patch Cable 0.5m White 10000 Mbit/s

The Equip Cat.6A U/UTP Slim Patch Cable 0.5m White is a slim, high-performance Ethernet patch cable designed for data centers, enterprise networks and high-density installations. With a reduced diameter (32 AWG) and stranded bare copper conductors, it supports 10 Gigabit Ethernet at frequencies up to 500 MHz while improving cable management and airflow in crowded racks and patch panels.

Advantages

This Cat.6A U/UTP slim patch cable offers 10GBase-T performance with low crosstalk and minimal signal loss in low to moderate EMI environments. The unshielded twisted pair design combined with molded boots and strain relief provides flexibility and durability for frequent reconfiguration. The cable is RoHS compliant and made in Low Smoke Zero Halogen (LSZH/LSOH) jacket material for safer deployment in enclosed spaces.

Suitable for

• 10 Gigabit Ethernet connections (10GBase-T)

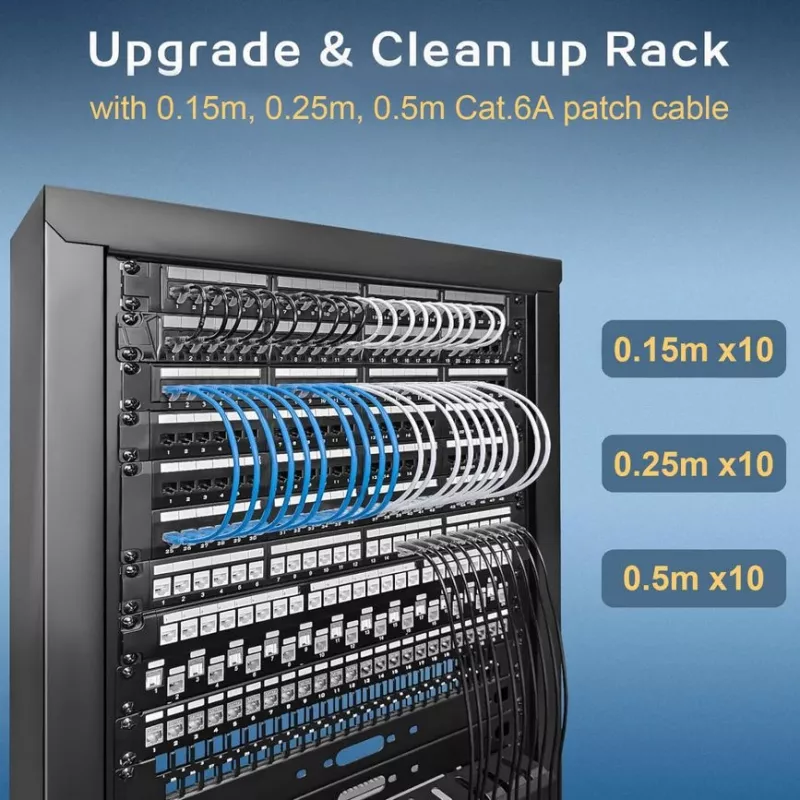

• High-density patch panels and crowded rack environments
• PoE and PoE+ powered devices
• Short-range uplinks between network equipment (0.5 m)

Key specifications

• Cable type: Cat6a U/UTP (unshielded twisted pair)

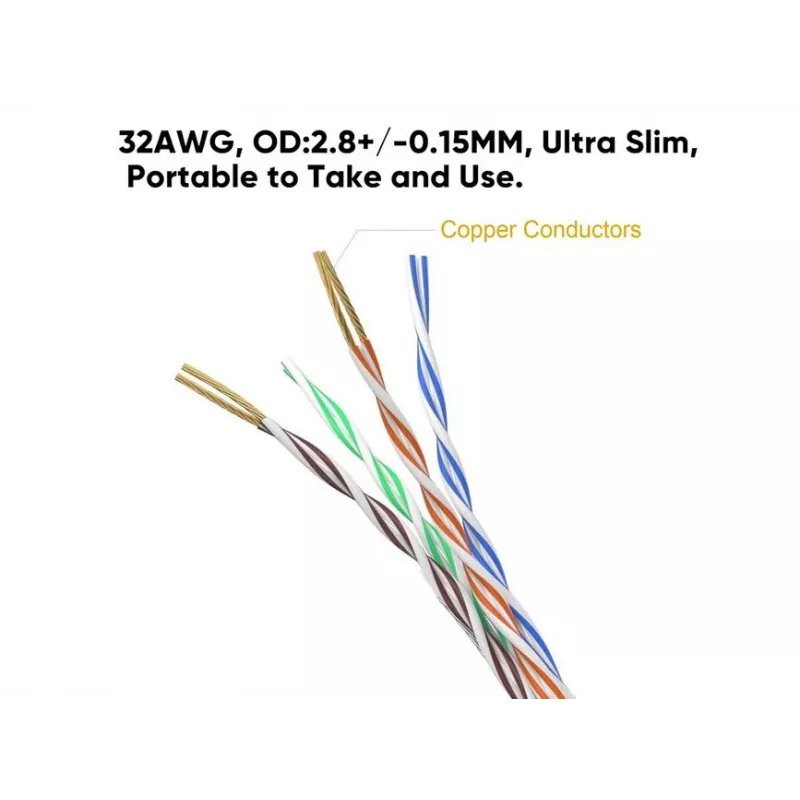

• Wire gauge: 32 AWG, stranded bare copper conductor
• Bandwidth / frequency: up to 500 MHz
• Data rate: up to 10 Gbit/s (10000 Mbit/s)
• Length: 0.5 m
• Connectors: RJ-45 straight male — both ends
• Jacket: LSZH / LSOH (Low Smoke Zero Halogen)
• Standards: ISO/IEC 11801 and EN 50173 compliant
• Colour: White

How to use

Plug the RJ-45 connector on one end into the network port of a switch, patch panel or device and insert the RJ-45 connector on the other end into the corresponding port. Ensure connectors are fully seated until the latch clicks. Use the 0.5 m cable for short patching or equipment-to-equipment links where a slim cable improves routing and airflow. Avoid sharp bends near the connector and do not exceed the cable's minimum bend radius to preserve performance.

Recommendations

For best performance, use this Cat.6A U/UTP slim patch cable in environments with low to moderate electromagnetic interference and within the specified 0.5 m length. When deploying in high-EMI areas, consider shielded alternatives. Inspect connectors periodically and replace cables showing visible damage to the jacket or strain relief.
