Equip 37-86 inch Rotate TV Cart 50 kg capacity height adjustable

The Equip 650630 single display TV cart is a height-adjustable mobile stand designed for 37–86" LED and LCD flat panel TVs with a maximum load capacity of 50 kg. It features a modern silver finish, integrated cable management and a solid base with locking casters for stable, mobile use in conference rooms, public spaces or professional presentation environments.

Advantages

The cart offers height adjustment between 1420 and 1820 mm, tilt from -10° to +5° and a 90° rotation function to achieve optimal viewing angles and reduce glare. VESA compatibility from 200 x 200 to 600 x 400 mm covers a wide range of screen models. Its solid base reduces the risk of tipping and the locking wheels secure the cart in position while internal cable routing keeps cables out of sight.

Suitable for

• Conference rooms and meeting spaces
• Public displays and digital signage
• Training rooms and classrooms
• Temporary or flexible AV installations

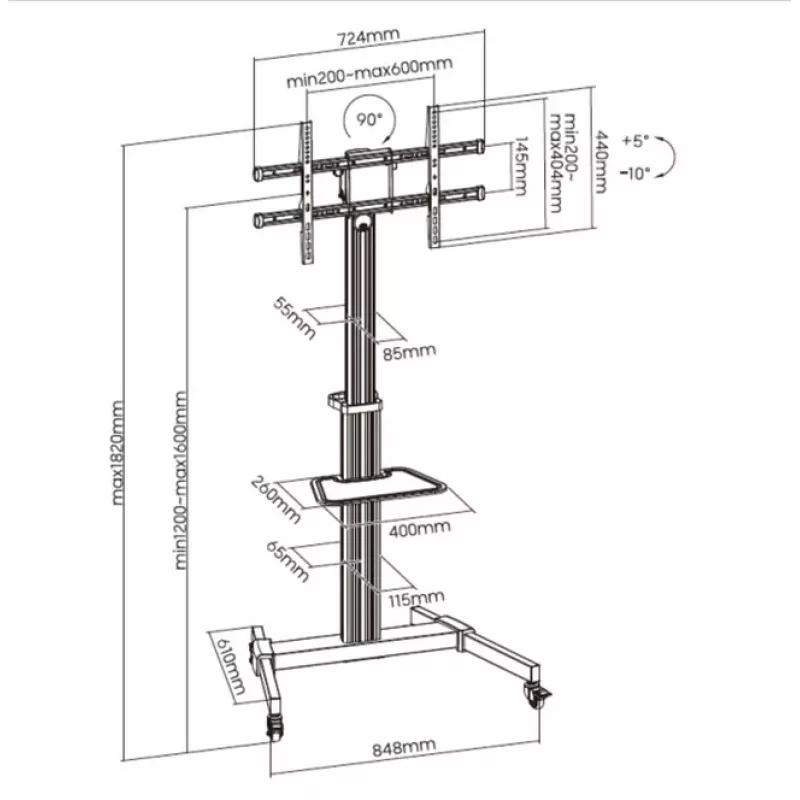

Key specifications

• Supported screen size: 37–86"
• Maximum weight capacity: 50 kg
• Height adjustment: 1420–1820 mm
• Tilt range: -10° to +5°
• Rotation: 90°
• VESA compatibility: 200 x 200 to 600 x 400 mm
• Number of displays: 1
• Weight: 14.86 kg
• Colour: Silver

How to use

Mount the TV to the VESA-compatible bracket using appropriate screws and ensure the display weight does not exceed 50 kg. Adjust the cart height between 1420 and 1820 mm to the desired viewing level, set the tilt between -10° and +5° and rotate the screen up to 90° as needed. Use the locking casters to immobilise the cart once in position and route cables through the internal management channels to keep them organised.

Recommendations

Ensure the TV’s VESA pattern is within 200 x 200 to 600 x 400 mm and that the total weight is below 50 kg. When moving the cart, lock the casters before leaving the unit unattended and periodically check mounting screws for tightness to maintain safe operation.
