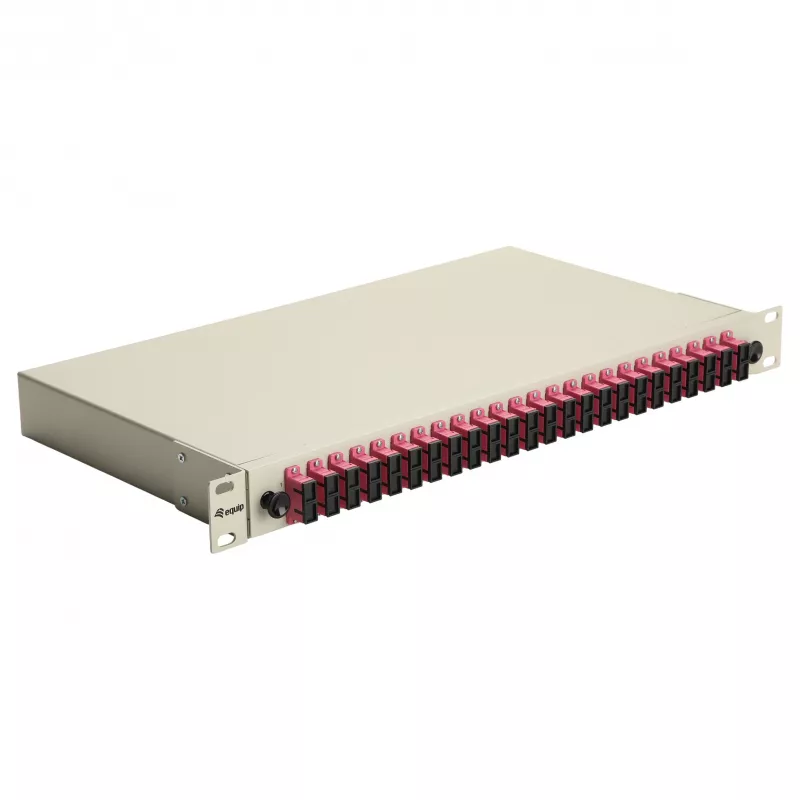

Equip 24-Port SC Duplex OM4 Fiber Optic Splice Box 1U Rackmount, Equipped, Grey

This Equip fiber optic splice box brings true 24-port SC Duplex density to a 1U rack space. It comes fully equipped with ceramic adapters, pre-terminated 2 m pigtails, and two 12-fiber splice trays, so you can terminate OM4 multimode cabling without hunting for extra parts. The steel housing keeps splices protected and organized in data centers, server rooms, and telecom cabinets.

Highlights

• 24-port SC Duplex OM4 multimode termination
• 1U 19-inch rackmount steel housing, grey
• Equipped: ceramic adapters and 24 pigtails included

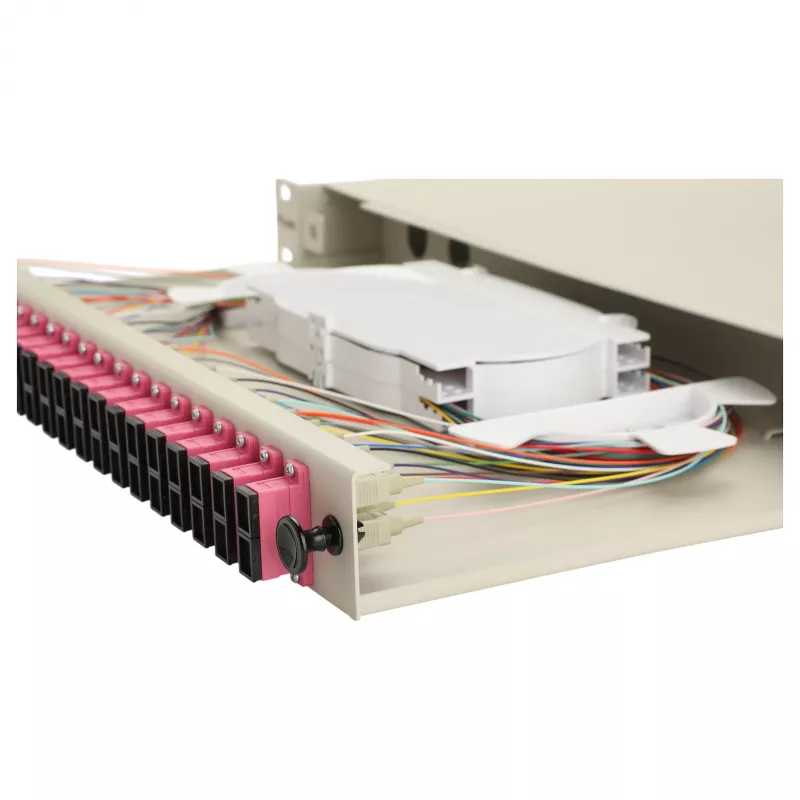

• 2 × 12-fiber splice trays for tidy splice management
• Typical insertion loss < 0.3 dB, return loss > 35 dB

In daily use

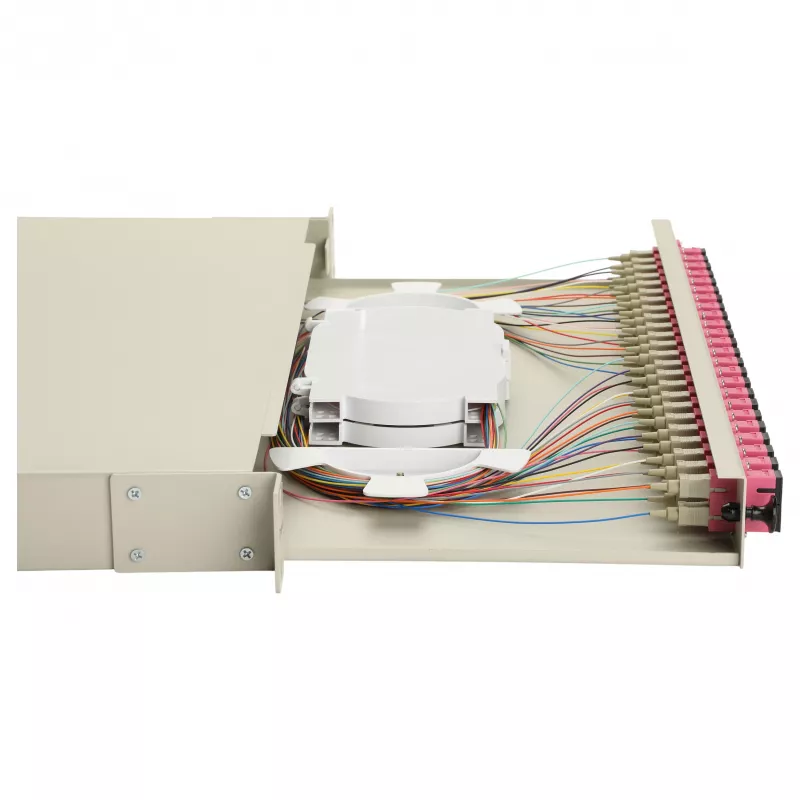

Simply mount the box in a 19-inch rack, secure incoming and outgoing fibers, and use the included splice trays to organize fusion splices. The SC Duplex adapters accept standard patch cords, while the 2 m pigtails give you enough length to route fibers to the tray with ease. Suitable for structured cabling and fiber-to-the-desk applications.

Full specifications

• Product type: Fiber optic splice box / patch panel
• Ports: 24 × SC Duplex
• Fiber mode: Multimode OM4
• Equipped: yes (ceramic adapters, pigtails, splice trays)
• Pigtail length: 2 m
• Splice trays: 2 × 12-fiber
• Material: steel, grey
• Mounting: 1U 19-inch rack
• Insertion loss: < 0.3 dB typical
• Return loss: > 35 dB typical
• Operating temperature: -20 °C to 70 °C
• Standards: RoHS, TIA/EIA-568-C.3

Final note

This splice box simplifies deployment: everything you need for a professional OM4 SC termination is included. The rugged steel design and low insertion loss make it a reliable choice for high-density networking environments.
