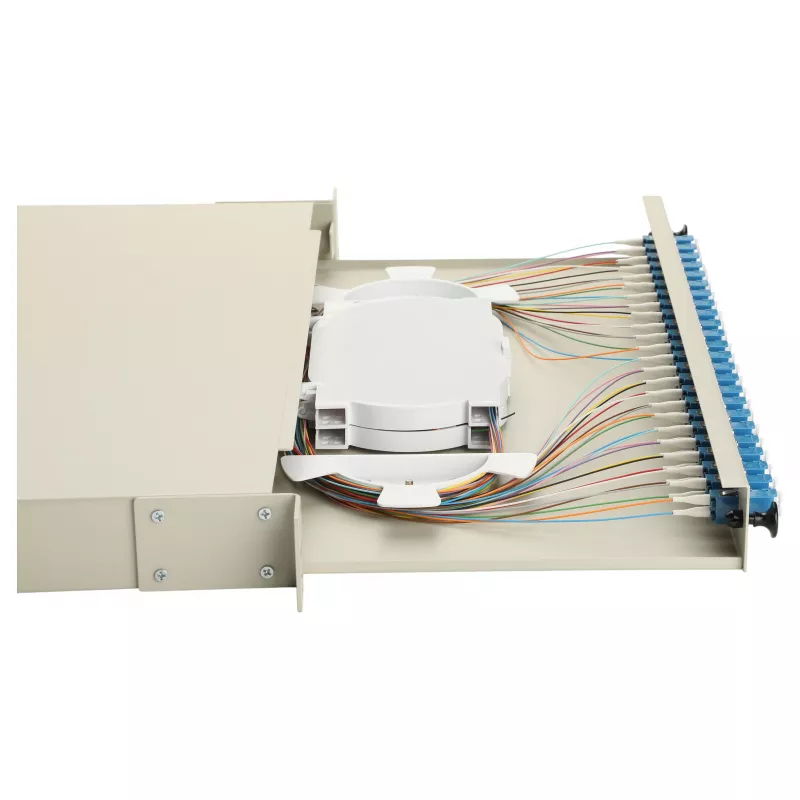

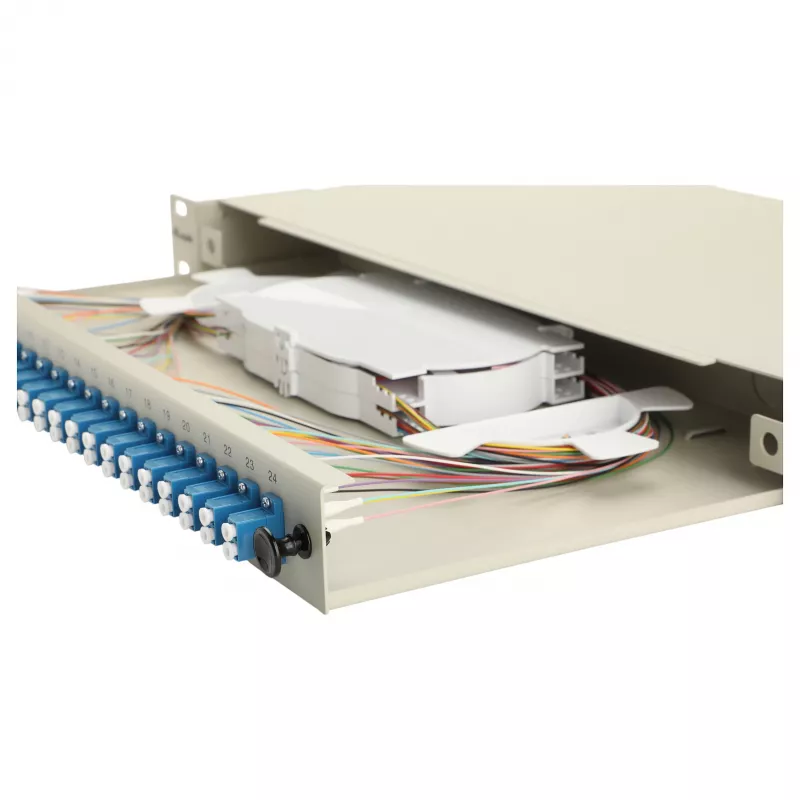

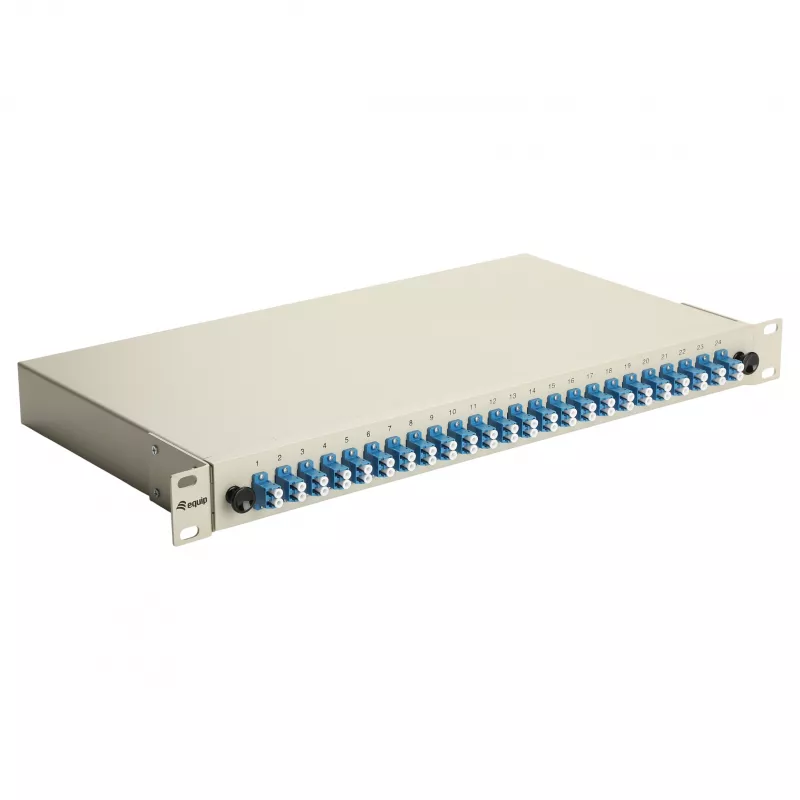

EQUIP 24-Port Fiber Optic Splice Box, LC Duplex, OS2, 1U, Equipped, Grey

Rack-mount splice box with 24 pre-installed LC duplex adapters for immediate OS2 single-mode termination. The 1U cold-rolled steel enclosure integrates two splice trays and full cable management, delivering 48-fiber capacity in a compact 19-inch footprint.

Advantages

Pre-installed LC duplex adapters eliminate on-site assembly, reducing installation time and ensuring consistent performance. Integrated cable management with strain relief protects fiber connections from bending and pull damage. The robust cold-rolled steel construction in grey (RAL 7035) withstands demanding environments while maintaining a professional appearance.

Suitable for

• Data center fiber patching and splicing
• Enterprise network distribution frames
• FTTx applications
• OS2 single-mode fiber infrastructure

Key specifications

• Ports: 24 x LC Duplex
• Fiber type: OS2 single-mode
• Fiber capacity: 48 fibers
• Rack units: 1U, 19-inch
• Included: 2 splice trays, LC adapters
• Material: cold-rolled steel
• Colour: Grey (RAL 7035)
• Operating temp: -20°C to +70°C
• Compliance: RoHS, REACH

Recommendations

For optimal fiber bending, observe the minimum bend radius of the cables and use the integrated cable management. Ensure that the splice trays are properly secured before closing the box.
