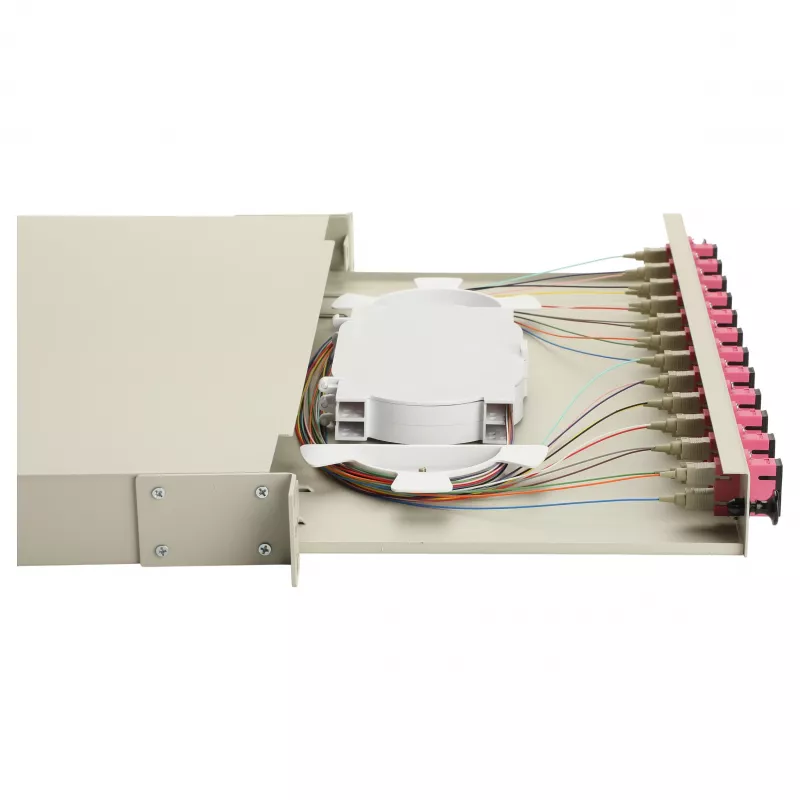

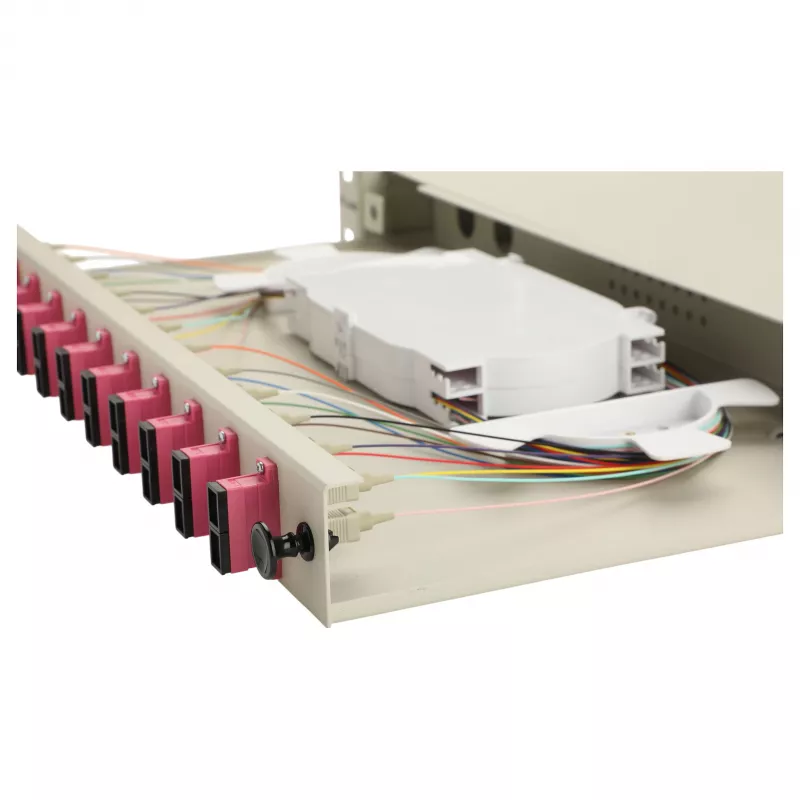

Equip 12-Port SC Duplex OM4 Fiber Optic Splice Box, 1U, Fully Equipped, Grey

This Equip 1U splice box is supplied fully equipped with 12 SC duplex adapters and 24 OM4 pigtails, pre-assembled for immediate installation. It simplifies fiber optic splicing and patching in data centers and structured cabling environments, offering a neat, tray-based solution for 19-inch racks.

Highlights

• 12-Port SC Duplex OM4
• 24 x OM4 pigtails (1.5 m)
• 24 splice capacity with integrated tray
• 1U 19" rackmount design
• Robust steel housing in grey
• Rear cable entry and strain relief

In daily use

Mount the box in any standard 19-inch rack and route the incoming fiber cable through the rear entry ports. The integrated splice tray accommodates up to 24 splices, and the included pigtails are already connected to the front adapters, allowing fast patching via SC duplex connectors.

Full specifications

• Product Type: Fiber Optic Splice Box
• Rack Height: 1U
• Rack Width: 19 inch
• Port Capacity: 12
• Connector Type: SC Duplex
• Fiber Mode: Multimode
• Fiber Class: OM4
• Equipped Status: Fully Equipped
• Included Adapters: 12 x SC Duplex OM4
• Included Pigtails: 24 x SC OM4 Multimode
• Pigtail Length: 1.5 m
• Splice Tray Included: Yes
• Splice Capacity: 24
• Material: Steel
• Colour: Grey
• Mounting Type: Rackmount

Final note

This splice box provides a secure, tidy and easily maintainable fiber termination point. Its pre-equipped design reduces on-site assembly work and minimizes the risk of handling errors.
