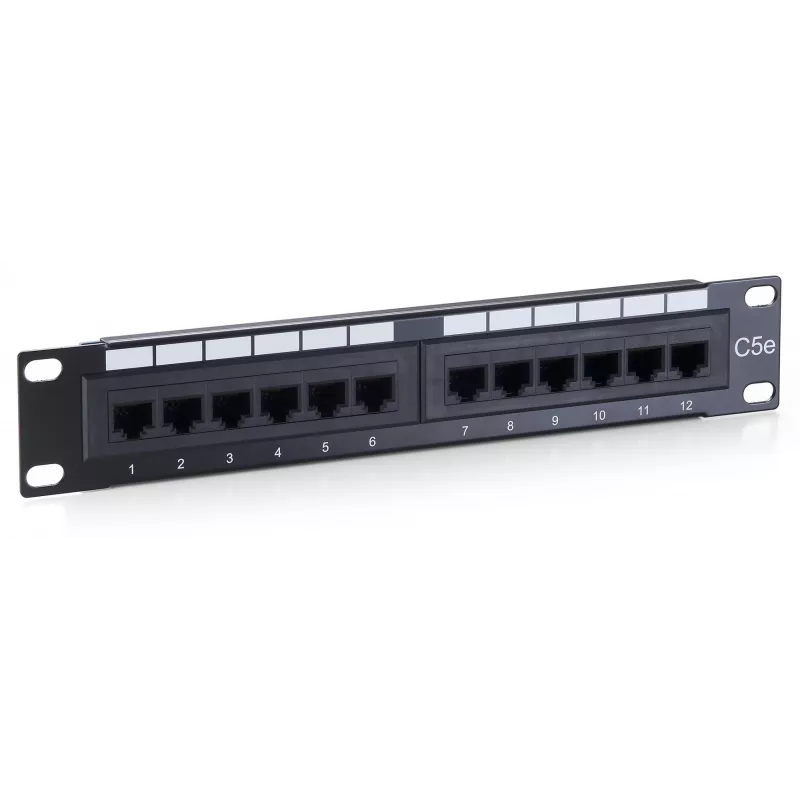

Equip 12-Port Cat.5e Unshielded Patch Panel, Black

The equip® Patch Panel is a 10" 1U network distribution unit designed for organised cable routing and strain relief. It provides 12 RJ45 ports with gold-plated contacts and supports Cat5e unshielded cabling. Each port is numbered for easy identification and the unit is rack-mountable for standard 19" cabinets.

Advantages

The 12-port Cat.5e patch panel offers a compact 1U form factor that saves rack space while enabling clean cable management. Gold-plated contacts ensure reliable signal transmission and reduced oxidation. The panel supports both LSA and 110 termination standards and includes integrated cable management to improve routing and strain relief.

Suitable for

• Small and medium office network patching
• Server rooms and network cabinets
• Structured cabling projects using Cat5e UTP
• Connecting patch cords to switches, routers and patch panels

Key specifications

• Brand: EQUIP
• Model / MPN: 208015
• EAN: 4015867159477
• Ports: 12 × RJ45
• Category: Cat.5e (unshielded)
• Dimensions (W×H×D): 239 × 44 × 28 mm
• Weight: 0.32 kg
• Colour: Black
• Rack unit: 1U (10")
• Termination: LSA and 110 compatible

How to use

Mount the patch panel into a standard 19" rack at the desired 1U position. Terminate incoming Cat5e cables on the rear IDC blocks using either LSA or 110 termination tools following the printed port numbering. Connect patch cords from the front RJ45 ports to network equipment such as switches or routers. Secure cables using the integrated cable management features to provide strain relief and maintain an organised layout.

Recommendations

For best performance, use quality Cat5e patch cords and follow proper termination practices. Label both ends of each cable and avoid tight bends near terminations. Inspect gold-plated contacts periodically and ensure rack airflow is not obstructed.
