Epson EB-PU1008B Large venue projector 8500 ANSI lumens 3LCD WUXGA (1920x1200) Black

The Epson EB-PU1008B is a compact, high-brightness installation projector sold as a body only and designed for flexible use with interchangeable lenses. Offering 8,500 ANSI lumens, WUXGA native resolution with 4K enhancement and HDR support, it is intended for large-venue and multi-projector setups where brightness, image fidelity and installation agility are required. The unit uses 3LCD technology and a laser light source with a long service life, and its compact, unobtrusive housing helps with transport and integration into different environments.

Advantages

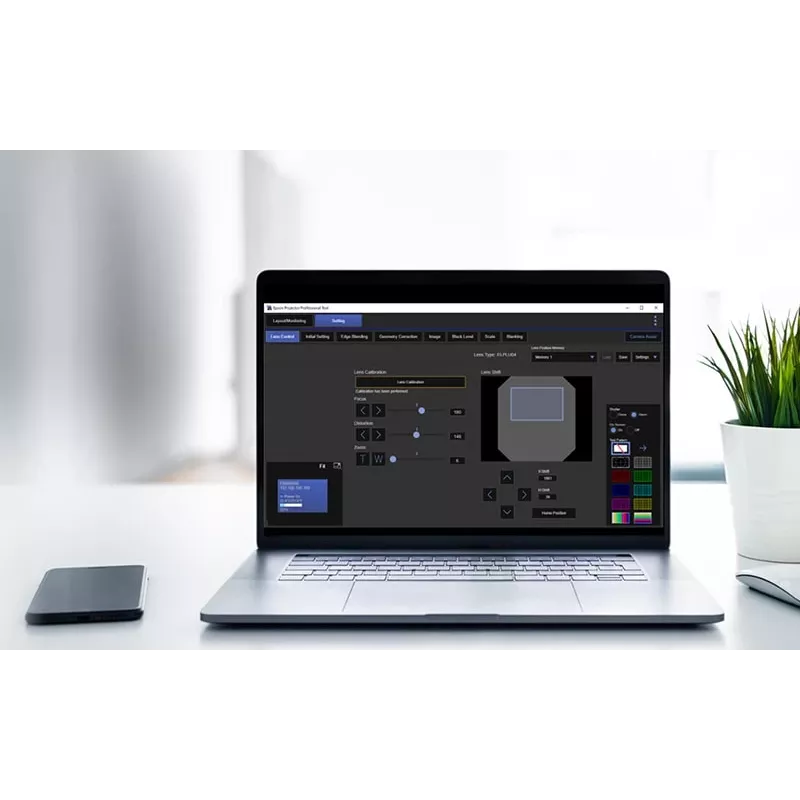

The EB-PU1008B delivers high brightness and accurate colour reproduction with deep blacks and well-defined shadows, supporting vivid, high-contrast imagery. Its compact and relatively lightweight design reduces storage and handling needs and allows easier deployment across event sites or fixed installations. Interchangeable lens support, including zero-offset ultra-short-throw options, enables flexible throw distances and projector positioning. Installation-focused features such as edge blending, stacking, geometry correction (with optional external camera ELPEC01), NFC-assisted multi-projector setup and Epson Projector Professional Tool simplify advanced configurations and multi-projector alignment.

Suitable for

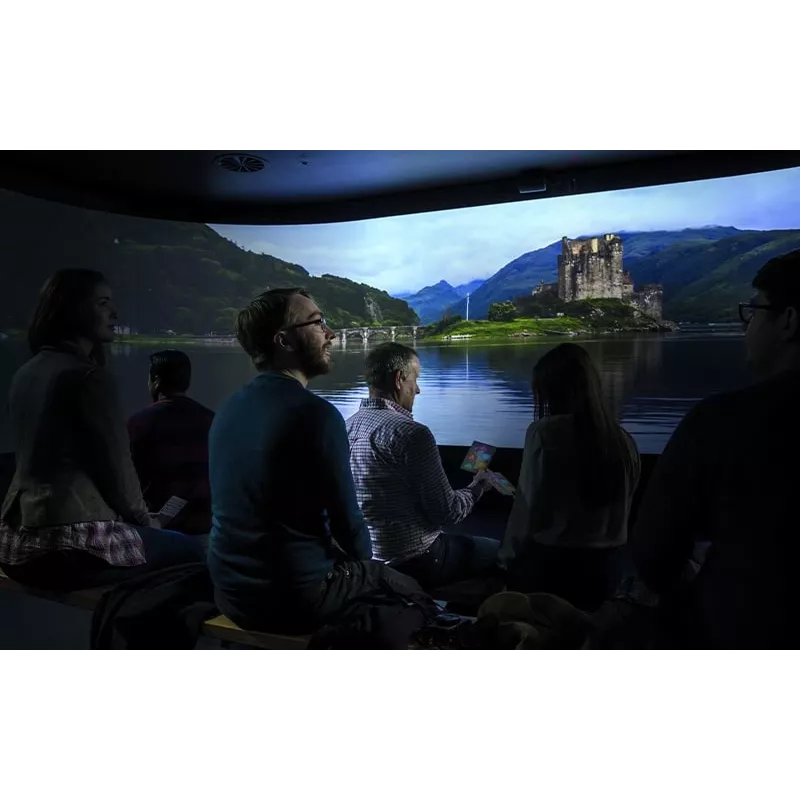

• Large-venue presentations, auditoriums and lecture theatres

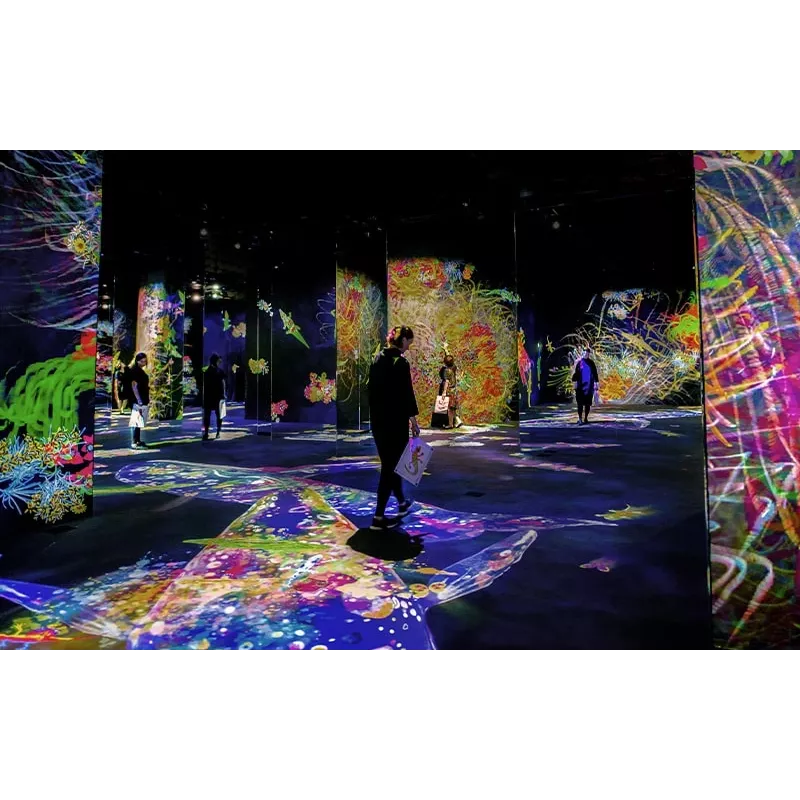

• Museums, visitor attractions and exhibition spaces

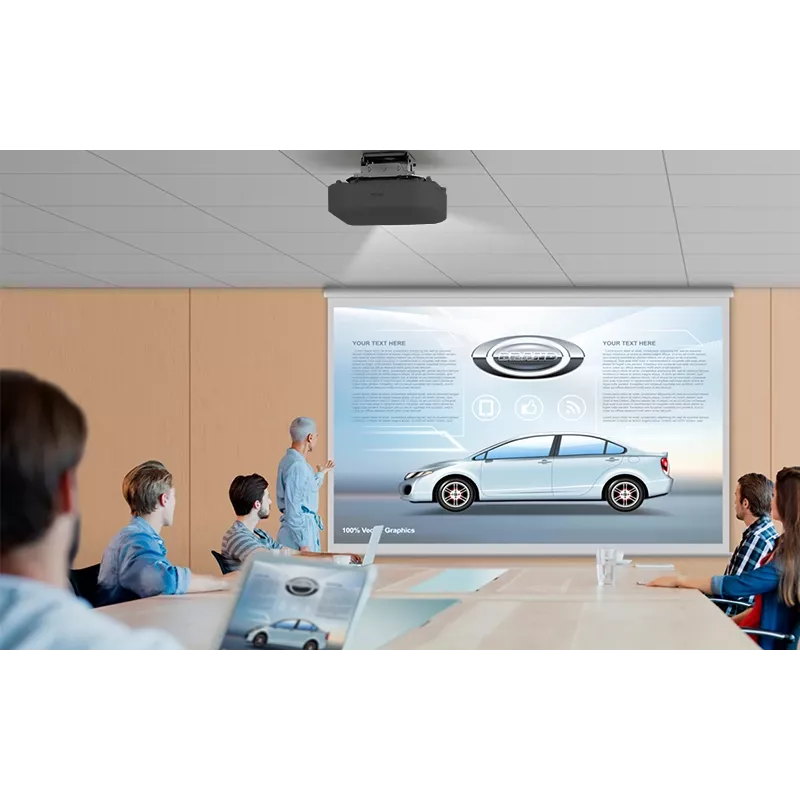

• Corporate meeting rooms and conference halls requiring high brightness
• Multi-projector displays, edge blending and stacked projection

Key specifications

• Brightness: 8,500 ANSI lumens
• Native resolution: WUXGA (1920 × 1200) with 4K enhancement
• Projection technology: 3LCD
• Light source: Laser (long life; up to 20,000 hours standard, up to 30,000 hours in eco mode as per manufacturer data)
• Throw ratio (with lenses): 0.35 – 10.11:1 (depends on selected lens)
• Weight: 16.3 kg
• Colour: Black

How to use

Install the EB-PU1008B body in the desired mounting position and select an appropriate Epson interchangeable lens for the required throw distance and installation geometry. Connect power and signal sources, then use the on-screen menus or Epson Projector Config Tool to configure image settings, input sources and network parameters. For multi-projector setups or stacked projection, use Epson Projector Professional Tool and, if available, the optional ELPEC01 external camera module to perform geometry correction and alignment. Use NFC for simplified multi-unit discovery and initial setup where supported.

Recommendations

For consistent image quality in large venues, choose a lens that matches the projection distance and screen size, allow adequate ventilation clearance around the projector, and perform geometry and colour calibration during installation—particularly for multi-projector edge blending or stacking applications.
