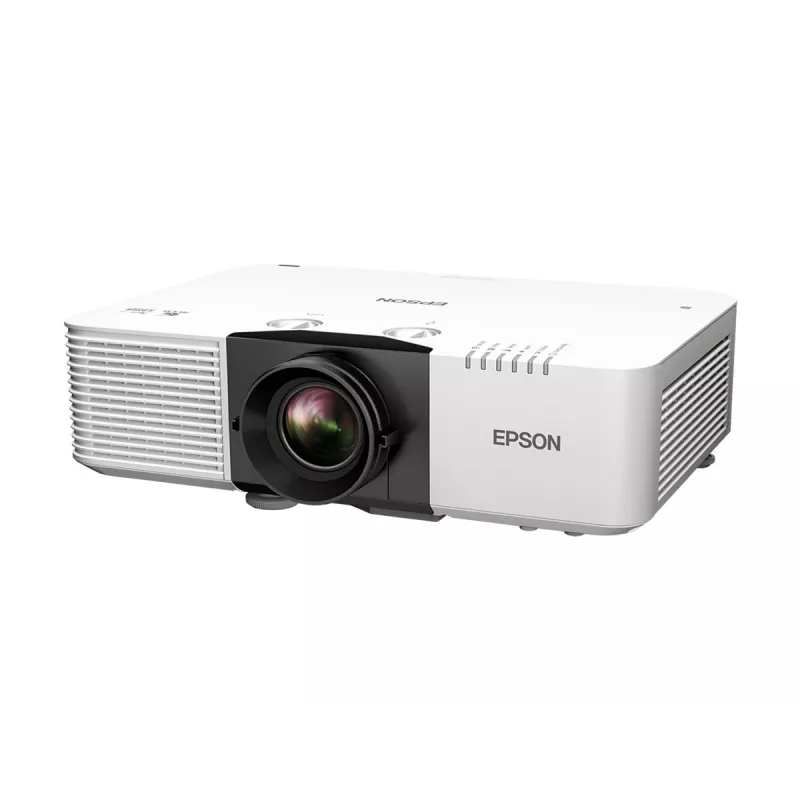

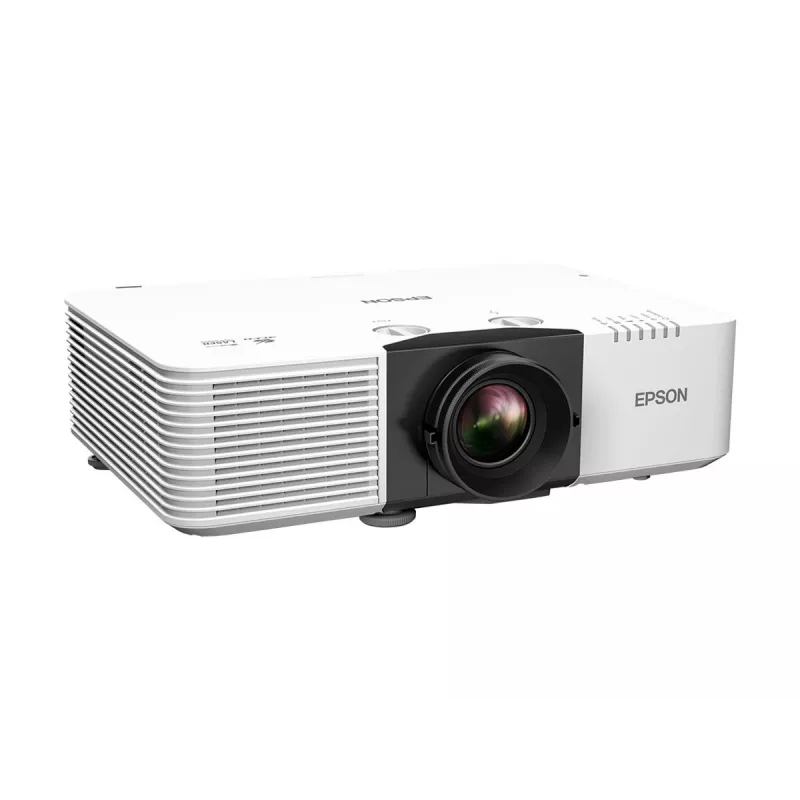

Epson EB-L690U Standard throw projector 6500 ANSI lumens 3LCD WUXGA (1920x1200) White

The Epson EB-L690U is a compact 3LCD laser projector delivering 6,500 ANSI lumens and native WUXGA (1920x1200) resolution. Designed for meeting rooms, lecture halls and other professional spaces, it offers HDR support, a long-life laser light source (up to 30,000 hours in Eco mode), and multiple connectivity options including HDBaseT, LAN, USB and wireless casting (Apple AirPlay 2, Miracast). The projector includes a fixed centre lens with manual lens shift, 1.6x zoom and a low operating noise of around 25 dB in Eco mode.

Advantages

The EB-L690U provides bright, detailed images suitable for large screens up to 500" while retaining a compact, lightweight design that simplifies transport and installation. Laser illumination reduces maintenance needs and operating costs thanks to its long lifespan. Flexible installation features, quiet Eco-mode operation and built-in 10 W speakers enable reliable performance in professional environments. The housing contains recycled plastics and the model is designed for reduced power consumption and lower packaging impact.

Suitable for

• Conference rooms and boardrooms
• Lecture halls and classrooms
• Corporate training and presentations
• Houses of worship and public venues

Key specifications

• Brightness: 6,500 ANSI lumens
• Projection technology: 3LCD
• Native resolution: WUXGA (1920x1200)
• Light source: Laser, up to 30,000 hours (Eco mode), 20,000 hours (normal)
• Zoom: 1.6x manual
• Lens: Fixed centre with manual lens shift
• Throw ratio: 1.35–2.2:1
• Screen size compatibility: up to 12,700 mm (500")
• Built-in audio: 10 W speaker
• Connectivity: HDBaseT, Ethernet LAN, USB, wireless (AirPlay 2, Miracast)
• Noise level: ~25 dB (Eco mode)
• Colour: White

How to use

Place the projector on a stable surface or mount it according to the installation requirements and align it with the screen using the fixed centre lens and lens shift controls. Connect your source via HDBaseT, LAN, USB or use wireless casting with Apple AirPlay 2 or Miracast from compatible devices. Adjust zoom and focus manually to obtain a sharp image; use Eco mode to extend laser life and reduce noise. For large installations, configure network control through LAN or integrate with AV systems via HDBaseT.

Recommendations

For best results, install the projector in a ventilated location with sufficient clearance for airflow, use a calibrated screen for accurate colour reproduction, and schedule occasional cleaning of air filters and vents. Use Eco mode for extended lamp life and lower fan noise during routine presentations.
