Epson EB-1485Fi Ultra short throw projector 5000 ANSI lumens 3LCD 1080p (1920x1080) White

The Epson EB-1485Fi Ultra short throw projector delivers a large, scalable interactive display for meeting rooms and collaborative spaces. With 5,000 ANSI lumens brightness, 3LCD technology and a 1080p (1920x1080) native resolution, it supports multi-touch pen and finger input and provides flexible display sizes up to 100 inches (16:9 standalone), 120 inches (16:6 standalone) or 155 inches when using DuoLink with edge blending. The laser light source is rated for up to 20,000 hours of use (30,000 hours in economic mode), and the unit offers a fixed 3.9 mm focal length with manual focus.

Advantages

The EB-1485Fi offers high brightness and consistent colour reproduction thanks to 3LCD technology, enabling clear images in well-lit rooms. Its ultra short throw design minimises shadows and glare in front of the screen while supporting large display sizes and multi-touch interaction. A broad set of wired and wireless connectivity options—including full-size HDMI, HDBaseT, RS-232C and wireless screen mirroring (Miracast)—facilitates integration with video conferencing systems and BYOD workflows. The laser light source and long lifespan reduce maintenance and operating costs, and a five-year warranty provides added reliability.

Suitable for

• Meeting rooms and boardrooms
• Training rooms and classrooms
• Video conferencing and hybrid collaboration
• Large-scale presentations and information displays

Key specifications

• Model: Epson EB-1485Fi Ultra short throw
• Brightness: 5000 ANSI lumens
• Projection technology: 3LCD
• Native resolution: 1080p (1920x1080), native aspect ratio 16:9
• Screen size compatibility: up to 100" (16:9 standalone), 120" (16:6 standalone) or 155" with DuoLink
• Light source: Laser, up to 20,000 hours (30,000 h in economic mode)
• Lens: fixed focal length 3.9 mm, manual focus
• Weight: 9.3 kg

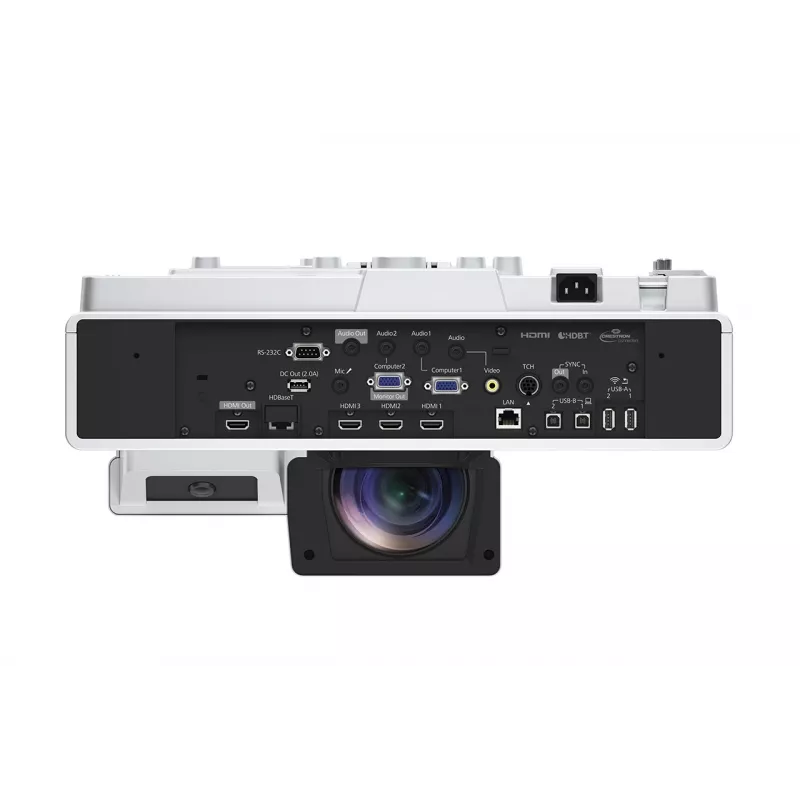

• Connectivity: full-size HDMI, HDBaseT, RS-232C, HDMI out, wireless (Miracast), Epson iProjection support
• Colour: White

How to use

Install the projector in an ultra short throw position close to the screen or wall following the manufacturer’s installation guidelines. Connect source devices via HDMI, HDBaseT or wirelessly using Miracast or the Epson iProjection app for screen mirroring and BYOD collaboration. Use the built-in multi-touch functionality with pen and finger input to annotate, control applications and combine multiple sources on the sliding split screen. Adjust manual focus to obtain a sharp image and, if needed, enable DuoLink to combine two displays for edge-blended larger formats.

Recommendations

For reliable performance, keep firmware up to date, ensure adequate ventilation around the unit, and use the projector in environments consistent with the specified brightness needs. Use the five-year warranty and the long-life laser source to minimise downtime and maintenance costs.
