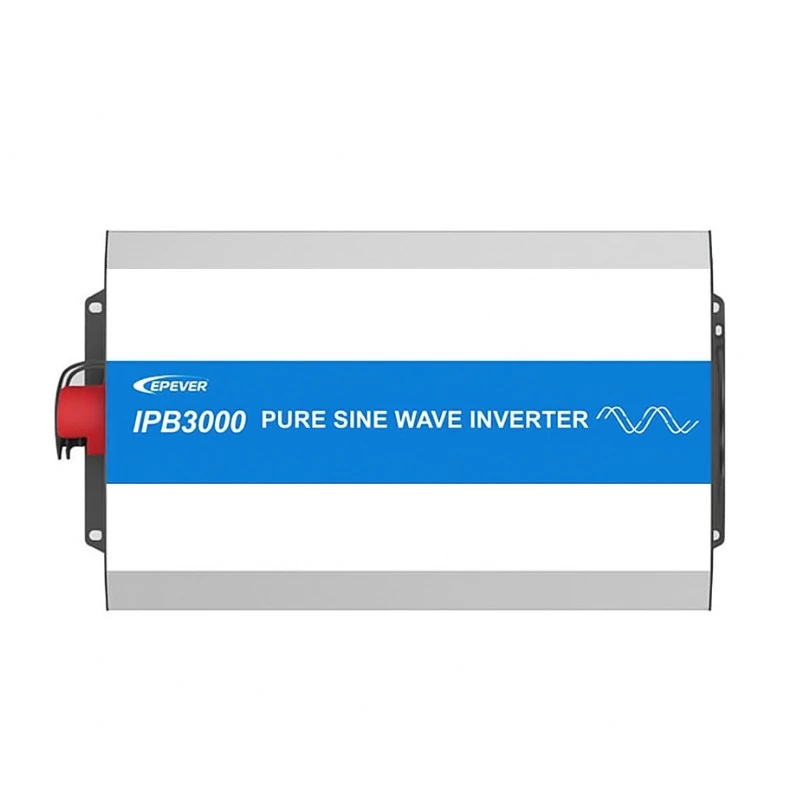

EPEVER IPB3000-12(E/R) 12V 3000W Pure Sine Wave Inverter

The EPEVER IPB3000-12(E/R) is a high-performance pure sine wave inverter designed to convert 12V DC battery power into 230V AC, delivering a continuous output of 3000W and a peak surge of 6000W for up to 5 seconds. Ideal for off-grid solar systems, RVs, boats, and backup power applications, this inverter ensures stable and clean power for sensitive electronics.

Advantages

Pure sine wave output with less than 3% total harmonic distortion (THD) ensures compatibility with sensitive devices such as medical equipment, audio systems, and variable speed tools. High efficiency exceeding 92% maximizes battery life. Intelligent fan cooling adapts to load and temperature, reducing noise and extending lifespan. Comprehensive protection features safeguard against over/under voltage, overload, short circuit, over temperature, and reverse polarity (external fuse required).

Suitable for

• Off-grid solar power systems
• Recreational vehicles (RVs) and caravans
• Marine and boat applications
• Backup power for home or office
• Remote work sites and mobile workshops

Key specifications

• Inverter Type: Pure Sine Wave
• Continuous Output Power: 3000W
• Peak Output Power: 6000W (5 seconds)
• Input DC Voltage: 12V (range 10.8V - 16V)
• Output AC Voltage: 230V AC (configurable)
• Output Frequency: 50Hz / 60Hz (selectable)
• Max Efficiency: >92%
• Total Harmonic Distortion (THD): <3%
• No-load Current: <1.2A
• USB Output: 5V DC / 1A
• Cooling Method: Intelligent Fan Cooling
• Operating Temperature Range: -20°C to +50°C
• Remote Control Port: RJ45
• Certifications: CE, RoHS

Recommendations

For optimal performance, use with a battery bank of sufficient capacity (recommended minimum 250Ah at 12V). Ensure proper ventilation and install in a dry, clean environment. An external fuse or circuit breaker is required on the DC input for safety.
