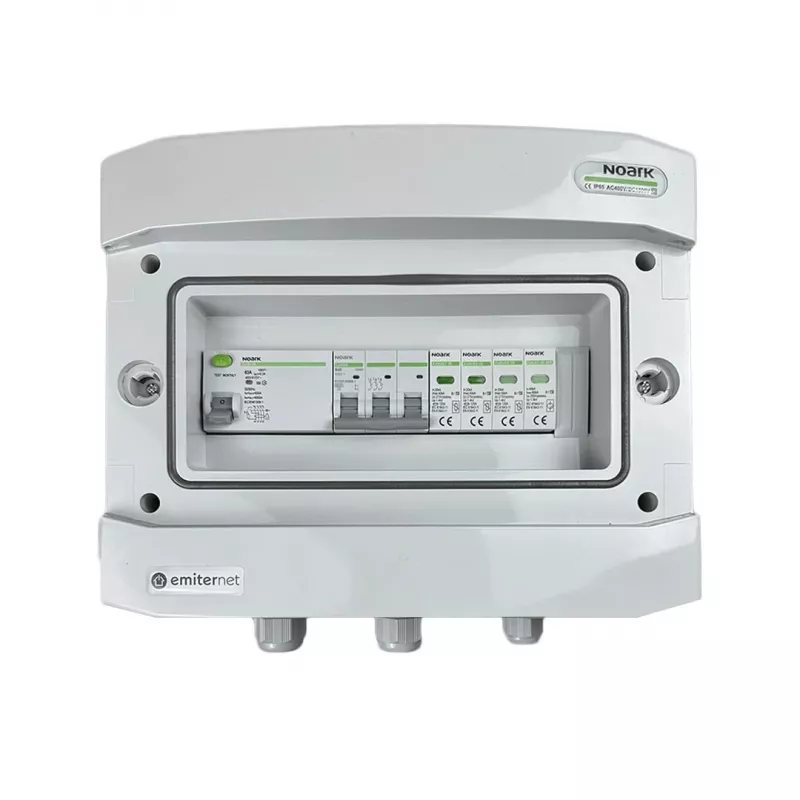

EMITER Switchgear Attached AC Hermetic IP65 with Surge Arrester AC Noark Type 2, 40A 3-Phase, RCD Type A 63A/300mA

EMITER Switchgear Attached AC Hermetic IP65 with Surge Arrester AC Noark Type 2, 40A 3-Phase, RCD Type A 63A/300mA
EMITER Switchgear Attached AC Hermetic IP65 with Surge Arrester AC Noark Type 2, 40A 3-Phase, RCD Type A 63A/300mA
R4,523
The EMITER Switchgear Attached AC Hermetic IP65 is a combined electrical protection unit designed for outdoor and industrial environments. It integrates a 40A 3-phase main switch, a Type 2 surge protective device (SPD) from Noark, and a Type A residual current device (RCD) rated at 63A/300mA, all ho... Read More
Stock 5 Code 2842870 Brand EMITER Model EM-749N_AC Warranty 2 Years

Shipping & Returns

Estimated delivery Thursday, October 1
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The EMITER Switchgear Attached AC Hermetic IP65 is a combined electrical protection unit designed for outdoor and industrial environments. It integrates a 40A 3-phase main switch, a Type 2 surge protective device (SPD) from Noark, and a Type A residual current device (RCD) rated at 63A/300mA, all housed in a robust IP65 enclosure. This pre-wired unit ensures reliable protection against overvoltage, earth faults, and overcurrent, making it ideal for harsh conditions.

Advantages

This all-in-one solution simplifies installation and reduces space requirements. The IP65 rating provides dust-tight and water-jet protection, while the UV-resistant thermoplastic enclosure ensures long-term durability outdoors. The integrated surge arrester and RCD offer comprehensive safety for personnel and equipment.

Suitable for

  • Outdoor power distribution
  • Industrial installations
  • Construction sites
  • Agricultural facilities
  • Temporary power supplies

Key specifications

  • Product Type: Combined Electrical Protection Unit
  • Enclosure IP Rating: IP65
  • Enclosure Material: UV-resistant Thermoplastic
  • Input Voltage: 230/400V AC
  • Number of Phases: 3-Phase
  • Main Circuit Breaker/Switch Rating: 40A
  • Surge Protective Device (SPD) Type: Type 2
  • Residual Current Device (RCD) Type: Type A
  • RCD Rated Current: 63A
  • RCD Rated Residual Operating Current (IΔn): 300mA
  • RCD Poles: 4-Pole
  • Mounting Type: Surface Mount
  • Operating Temperature Range: -25°C to +55°C
  • Protection Features: Overvoltage, Earth Fault, Overcurrent
  • Internal Wiring: Pre-wired
  • Terminal Type: Screw Terminals
  • Standards Compliance: IEC/EN 61439-3, IEC/EN 61008-1, IEC/EN 61643-11
  • Certifications: CE
  • Application Environment: Outdoor, Industrial, Harsh Environments

Recommendations

For optimal protection, ensure installation by a qualified electrician. Regularly test the RCD function as per local regulations. This unit is designed for fixed installations and should not be used in mobile applications.

Specifications
Brand
EMITER
Category
Combined Electrical Protection Unit
Charger compatibility
Outdoor, Industrial, Harsh Environments
Charger type
Combined Protection Unit
Depth
150 mm
EAN
5904905313928
Height
300 mm
Input current
40 A
Input frequency
50/60 Hz
Input voltage
230/400V AC
Maximum power
40 A
Model
EM-749N_AC
MPN
EM-749N_AC
Number of outputs
1
Operating temperature (T-T)
-25 - 55 °C
Output current (5V)
63 A
Output current (9V)
300 mA
Power source type
AC
Product colour
Grey
Weight
2.84 kg
Width
200 mm
