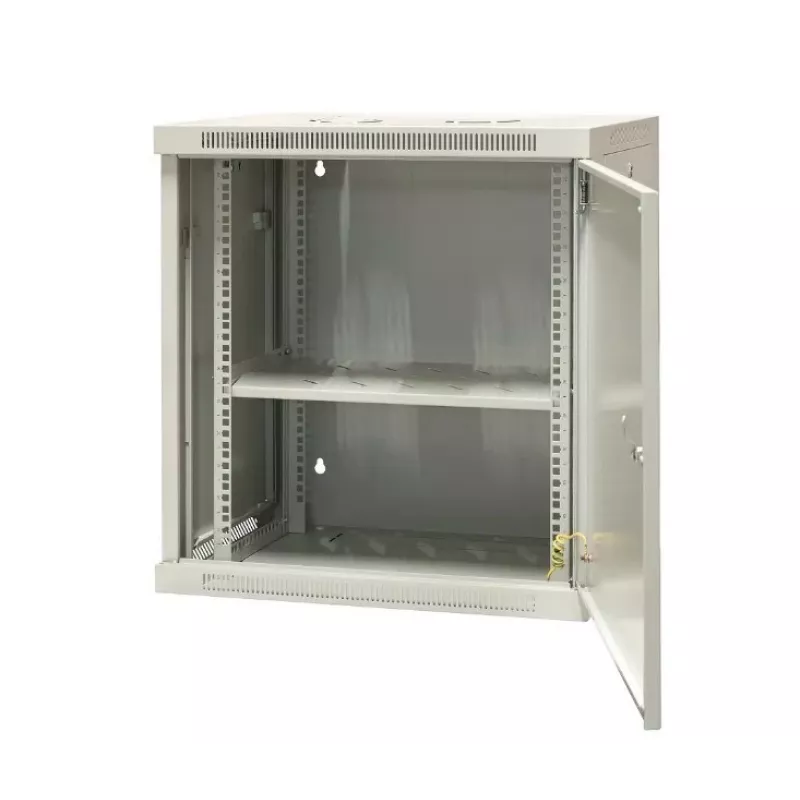

EMITER EM/AP6412-B 12U Wall-Mount Network Cabinet 19 inch 600x450x635mm Black Steel

In a busy office IT room, a technician needs a secure, space-saving enclosure for a 12U patch panel, switch, and UPS. The EMITER EM/AP6412-B wall-mounted cabinet answers that need with a rugged steel body and a lockable full sheet metal front door. Mount it on the wall to keep equipment off the floor, protected from dust and unauthorized access, while maintaining easy access for cable management and maintenance.

Key specifications

• 19-inch rack standard, 12U capacity
• Wall-mounted design with welded steel frame
• Full sheet metal front door with lock
• External dimensions: 600 mm width, 450 mm depth, 635 mm height
• Material: SPCC cold rolled steel, black RAL 9005 finish
• Adjustable front and rear 19-inch mounting rails
• Removable side panels for easy access
• Cable entry points on top and bottom with brush strips
• Passive ventilation for heat dissipation
• Maximum static load capacity: 60 kg
• IP20 protection rating
• Compliant with RoHS and CE standards

Why choose it

This cabinet combines strength and practicality. The 1.2 mm thick steel construction ensures durability, while the lockable door secures your network hardware. The adjustable rails let you fine-tune equipment depth, and the brush strips keep cables tidy and dust out. Its compact footprint saves floor space, making it ideal for small server rooms, offices, or retail back offices.

Ideal use cases

• Small business network installations
• Branch office IT closets
• Retail point-of-sale systems
• Security camera and access control hubs
• Educational facilities

Good to know

The EMITER EM/AP6412-B is built to last with a welded frame and cold rolled steel. Its passive ventilation keeps your equipment cool without noisy fans, and the removable side panels make installation and maintenance a breeze. The lockable door adds a layer of security, while the brush strips maintain a clean, professional look by minimizing dust ingress.
