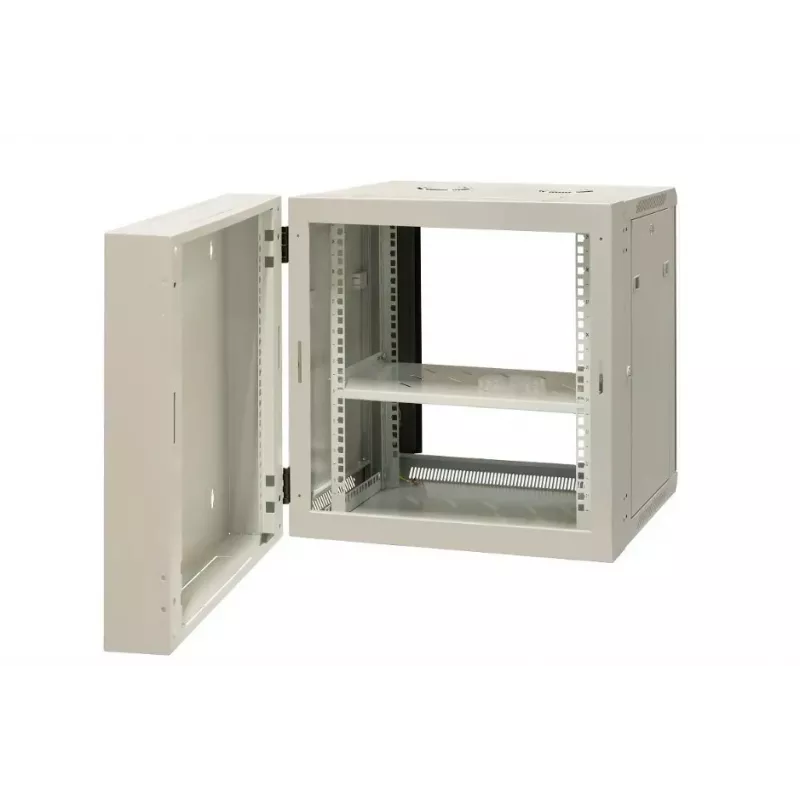

EMITER EM/AH6512 12U Wall-Mount Network Cabinet, 600×550×635 mm, Glass Door

For small offices, retail back rooms, or branch locations needing a tidy, secure home for network switches, patch panels, and small servers, the EMITER EM/AH6512 offers a space-saving 12U wall-mounted enclosure. Its 600 mm width accommodates standard 19-inch equipment, while the 550 mm depth provides ample room for cabling and moderate-depth devices. The front door features a tempered glass insert in a steel frame, allowing quick visual checks of indicator lights without opening the cabinet. A key lock on the front door helps prevent unauthorized access to critical hardware.

Key specifications

• Rack capacity: 12U, 19-inch standard
• External dimensions: 600 mm (W) × 550 mm (D) × 635 mm (H)
• Front door: steel frame with tempered glass insert, key lock
• Body material: cold rolled steel sheet, powder coated finish
• Mounting type: wall mount
• Removable side panels for easy access during installation
• Adjustable 19-inch mounting rails
• Cable entry: top and bottom
• Passive ventilation

Why choose it

The EM/AH6512 balances security, accessibility, and compactness. The glass door lets you monitor equipment status without disrupting airflow or risking accidental contact. Removable side panels simplify cable routing and device installation, while the powder-coated steel construction provides durability for long-term use. Its wall-mount design frees up floor space, making it ideal for areas where every square meter counts.

Ideal use cases

• Small business network closets
• Retail point-of-sale back offices
• Remote branch locations
• Classrooms or training rooms

Good to know

The cabinet includes adjustable mounting rails to accommodate equipment of varying depths. Top and bottom cable entry points allow flexible routing, and passive ventilation helps maintain safe operating temperatures. Assembly and wall-mounting hardware are included.
