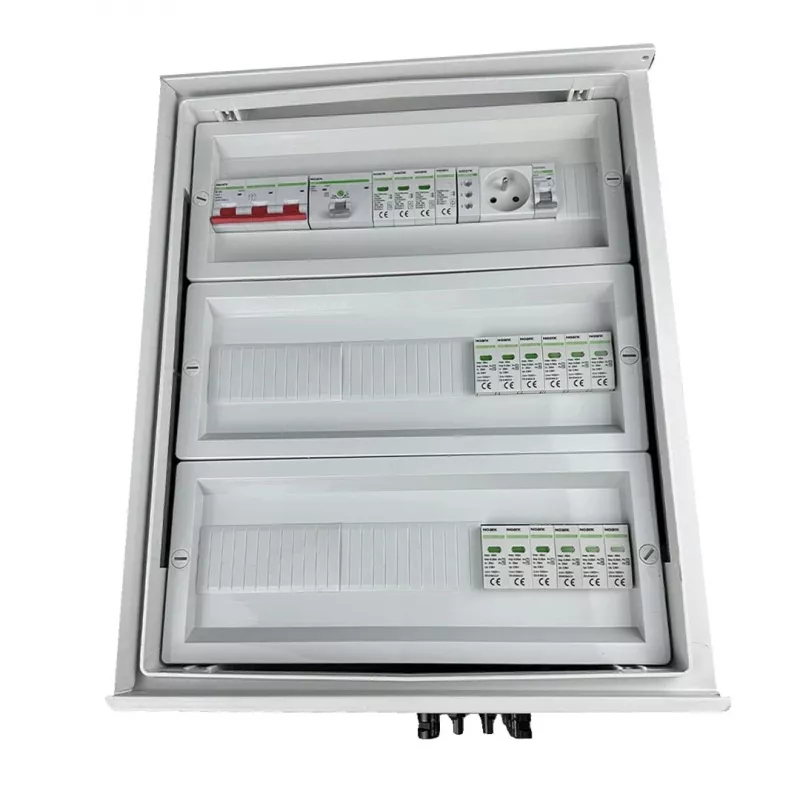

EMITER EM-854N DCAC Hermetic IP66 Solar PV Combiner Box with DC & AC Surge Protection, 5 String Inputs, 5 MPPT, 100A 3-Phase

The EMITER EM-854N DCAC is a high-performance, all-in-one solar PV string combiner and protection box designed for commercial and industrial installations. Featuring a hermetic IP66 enclosure, it integrates both DC and AC switchgear, surge protection, and disconnection in a single unit, ensuring reliable operation in harsh environments.

Advantages

Combines DC and AC protection in one compact, weatherproof enclosure, reducing installation complexity and cost. The hermetic IP66 rating guarantees dust-tight and water-resistant performance, ideal for outdoor use. With Type 1+2 surge protection on both DC and AC sides, it provides comprehensive protection against lightning and switching surges.

Suitable for

• Commercial and industrial solar PV systems
• Ground-mounted and rooftop installations requiring robust protection
• Systems with up to 5 PV strings and 5 MPPT channels
• 3-phase AC grid connections up to 100A

Key specifications

• Brand: EMITER
• Model: EM-854N_DCAC
• EAN: 5904905313560
• DC System Voltage: 1000V DC
• Number of DC PV String Inputs: 5
• Number of MPPT Channels: 5
• DC Surge Protection: Type 1+2
• AC Configuration: 3-Phase
• AC Rated Current: 100A
• AC Surge Protection: Type 1+2
• AC Main Disconnector: 100A Fuse-Switch Disconnector (FR 100A)
• Enclosure IP Rating: IP66
• Enclosure Type: Hermetic
• Mounting: Wall-mount compatible
• Auxiliary Signaling: Phase status
• Auxiliary Output: Socket

Recommendations

For optimal performance, ensure proper cable sizing and installation by a qualified electrician. This unit is designed for use in accordance with IEC 61439-2 standards.
